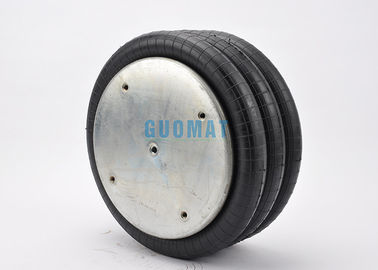

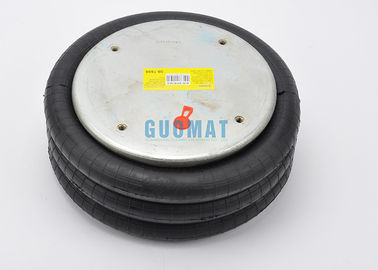

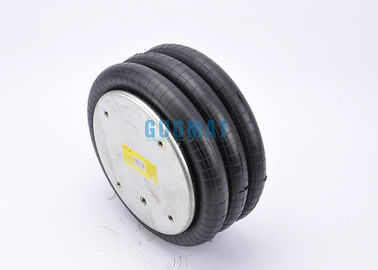

W01-358-7808 Firestone Refer FT 530-32 336 Industrial Air Spring triple convoluted

China W01-358-7808 Firestone Refer FT 530-32 336 Industrial Air Spring triple convoluted supplier
W01-358-7808 Firestone Refer FT 530-32 336 Industrial Air Spring triple convoluted supplier W01-358-7808 Firestone Refer FT 530-32 336 Industrial Air Spring triple convoluted supplier W01-358-7808 Firestone Refer FT 530-32 336 Industrial Air Spring triple convoluted supplier W01-358-7808 Firestone Refer FT 530-32 336 Industrial Air Spring triple convoluted supplier

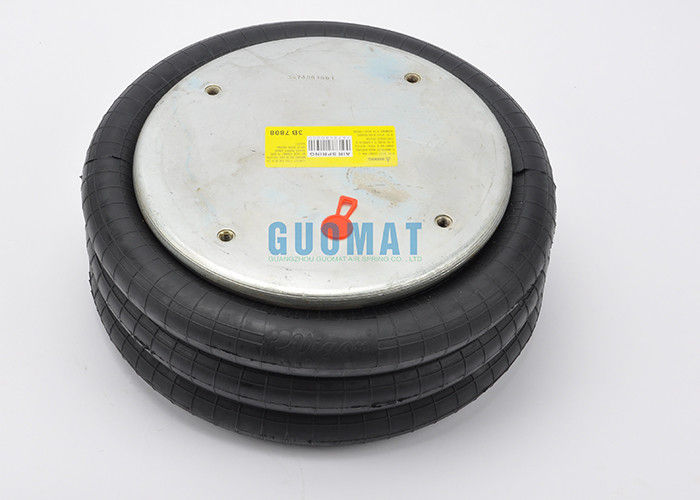

Large Image :  W01-358-7808 Firestone Refer FT 530-32 336 Industrial Air Spring triple convoluted

Product Details:

Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 3B7808

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel And Rubber Contitech: FT 530-32 336​
Warranty: 12 Months Weight: 8.0 Kg
Other Name: Air Suspension Parts Pressure Ability: 0.2-0.8 M Pa
Goodyear: 3B14-354

W01-358-7808 Firestone Refer FT 530-32 336 Industrial Air Spring triple convoluted

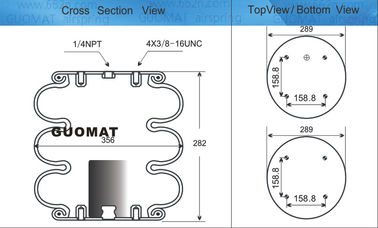

Technical Parameters of W01-358-7808



Top Cover Plate Diameter 289 mm

Bottom Cover Plate Diameter 289 mm

Screw Center Distance 158.8 mm

Distance Gas Hole Between Nut 79.4 mm

Gas Hole 1/4NPTF

Screw (Nut) Tooth 2pcsX3/8-16UNC

Rubber Bellows Natural diameter 356 mm

Rubber Bellows Natural height 282 mm





OEM Original Equipment Manufacturer:



Product Specs for Firestone W013587808

Technical Specs: Firestone W01-358-7808
Compressed Height: 4.00
Top Plate Number:3131 or 3134
Top Plate Width:11.31
Piston Number:3130
Piston Width:11.31
Firestone Bellows Number:313
Goodyear Part Number:3B14-354 /3B14 354
Goodyear Bellows Number:578-93-3-350 /578 93 3 350 / 578933350
Triangle Part Number:4336
Triangle Bellows Number:6319
Ridewell Number:1003587808C
EZ Ride Number8030170
Note:PEERLESS 0550-00030
UPC767555005538
MPNW013587808





Contitech FT 530-32 336

Firestone Style 313
Firestone No. W01-358-7808
FleetPride AS7808
Goodyear 3B14-354
Goodyear Flex No. 578933350
Taurus 6319
Triangle AS-4336
TRP AS78080
Automann SP3B32R-7808



The usal kinds of Double Convolution Air Springs



Triple Convolution Air Actuator
All Measurements Are In Mm
GUOMAT NO. Contitech NO. Min. Design height Installation Space Required Max. Stroke
3B33029 FT 330-29 110 345 320
3B43032 FT 430-32 115 355 315
3B53032 FT 530-32 110 410 325
3B53035 FT 530-35 115 430 395
3B96034 FT 960-34 120 510 335
3B133035 FT 1330-35 120 570 350





Air Spring Installation

  • Before you start installing air springs, make sure you have all the necessary tools and equipment to perform the repair safely.
  • Familiarize yourself with the suspension on which you are performing the repair by reviewing the manufacturers service guide.
  • If you are in doubt about something, ask for assistance from a qualified suspension specialist, the suspension manufacturer or the air spring manufacturer; This can save you a lot of time and aggravation later in the job.



Our Advantages

  • Long lasting service on almost all truck and trailer air suspensions
  • Absorb road shock to help tractors and rigs last longer
  • Cut down on vibration and driver fatigue
  • Long, trouble free service, constant level hauling, quite cushioned ride
  •
  •
  • W01-358-7808 Firestone Refer FT 530-32 336 Industrial Air Spring triple convolutedW01-358-7808 Firestone Refer FT 530-32 336 Industrial Air Spring triple convolutedW01-358-7808 Firestone Refer FT 530-32 336 Industrial Air Spring triple convoluted
