| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B7410 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | Firestone: | W01-358-7410 |
|---|---|---|---|
| Goodyear: | 2B12-406 | Firestone Bellows Number: | 22 |
| Contitech: | FD 330-22 331 | SAF Holland: | 57007410 |
| Watson & Chalin #: | As0136 | Hendrickson: | S13036/S10170 |
| High Light: | air helper springs,air suspension parts |
||
Double Air Spring Industrial Air Bags Firestone W01-358-7410 Plate Dia. 231mm
| Manufacturer Cross OEM Reference | |||
| Type | Convoluted Air spring | Item NO. | 2B7410 |
| Rubber type | Natural Rubber | Main Material | Rubber and metal |
| Plate Dia. | 231mm | Rubber Bellows Max Dia. | 325mm |
| Firestone | W01-358-7410 | Triangle | 6316/4331 |
| Contitech | FD 330-22 331 | Goodyear | 2B12-406 |
| Freightliner | 16-11378-000 | 578923 309/305 | |
| Brake&Wheel | M3508 | Dayton | 3547410 |
| Leland | Sc2023 | Navistar | 5547921C1 |
| Hendrickson | S13036/S10170 | SAF Holland | 57007410 |
| Ridewell | 1003587410C | Watson&Chalin | As0136 |
Operating Temperature: 57Cº to -54Cº

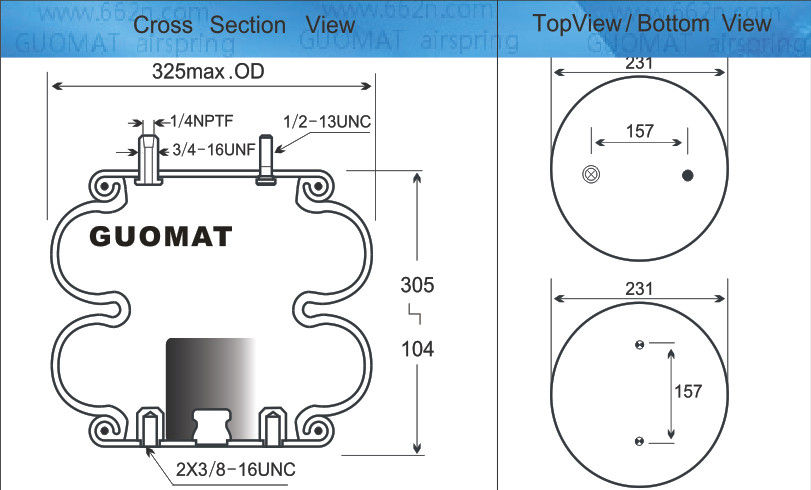

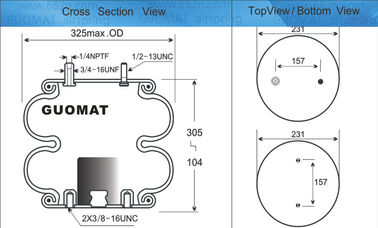

❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 1 pcs X 1/2-13UNC,1 pcs X3/4-16UNC
Screw Center Distance of Top Cover Plate : 157 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 157 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPT
Center Distance Between air inlet and Nut : Together
❸ Cover Plate
Top Cover Plate Diameter (Width): 231 mm / 9.00 inches
Bottom Cover Plate Diameter (Width): 231 mm / 9.00 inches
Threaded Hole : 3/8-16
❹Rubber Bellows
Rubber Bellows Natural Diameter : 298 mm / 11.7 inches
Rubber Bellows MAX Diameter : 325 mm / 12.9 inches
Compressed Height: 81 mm / 4.12 inches
Minimum Jounce Height: 81mm / 4.12 inches
Design Height: 203 mm-241mm / 8-9.5 inches
Maximum Height: 305 mm / 12 inches
Bellows # NO.: 22
Working Stroke : 224 mm / 8.8 inches
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Pictures show the information includes:
Technical data
Vibration isolation - dynamic characteristic values
Pneumatic application - static characteristic values
