6.52kg Industrial Air Spring Contitech FT 330-29 433 Firestone W01-358-8016 Max Height 460mm

Name: 6.52kg Industrial Air Spring Contitech FT 330-29 433 Firestone W01-358-8016 Max Height 460mm
Brand: GUOMAT
SKU: W01-358-7995
Rating: 4.7 (200 reviews)

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	W01-358-7995

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union,Paypal or Others
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Steel And Rubber	Goodyear:	2B6608
Warranty:	12 Months	Net Weight:	6.52kg
Other Name:	Air Suspension Bags	Pressure Ability:	0.2-0.8 M Pa
Gross Weight:	7.13 KG	Package Size:	333322CM
Air Inlet:	1/4 NPT
High Light:	convoluted air spring , air helper springs

Industrial Air Spring Contitech FT 330-29 433 Firestone W01-358-8016 Max Height 460mm

Cross OEM Original Equipment Manufacturer:

GUOMAT Part NO.:3B6608

GUOMAT Bellows NO.:3B300

Firestone Part Number:W01-358-8016

Firestone Part Number:W013588016

Firestone Part Number:W01 358 8016

Contitech: FT 330-29 433
Ridewell: 1003588016C
Triangle Part Number: 6334

Triangle Bellows Number:4433

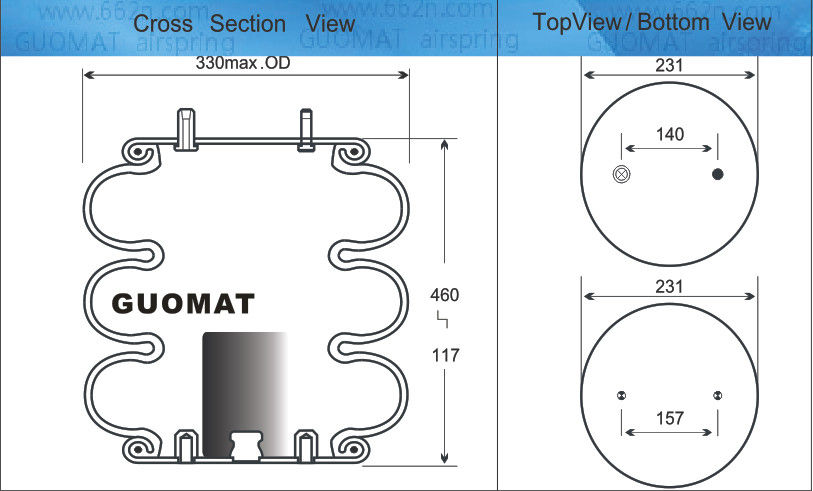

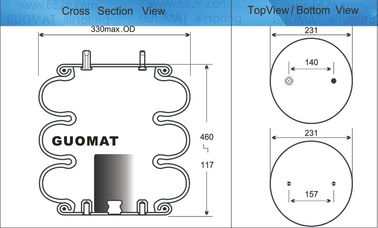

FT 330-29 433 Triple Convoluted Air Spring Specifications

Extended:460 MM
Closed :117 MM
Rubber Bellows Diameter :330 max. OD
Air Inlet:1/4NPT
Mounting Stud Combination:3/4-16UNF
Upper Stud :3/8-16UNC
Bottom Stud :2X3/8-16UNC
The center distance of two bottom screws :157.5MM
Iron plate round Diameter :231MM
The center distance of two cover screws :140MM

Air Spring NO.	Load	Design H.	Min. H.	Safe Elongation	Full Stroke
380320J-3			115	370	255
330312J-3		245	115	360	245
255322J-3			118	400	282
360312J-3	4491	245	115	360	245
