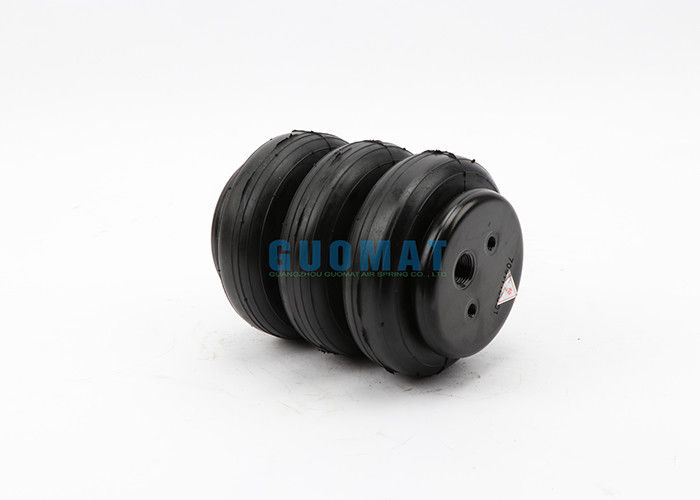

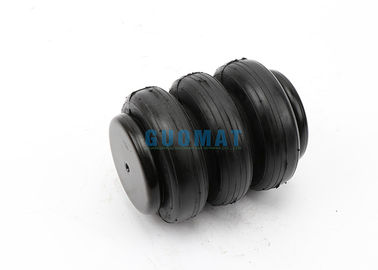

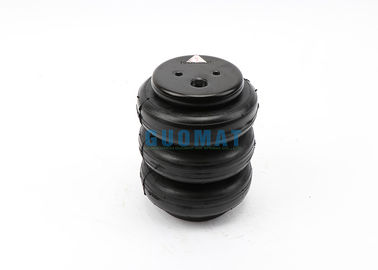

Steel Cover Plate Industrial Air Spring Provide A Comfortable Ride / Airlift Airbags

Steel Cover Plate Industrial Air Spring Provide A Comfortable Ride / Airlift Airbags

  • Steel Cover Plate Industrial Air Spring Provide A Comfortable Ride / Airlift Airbags
  • Steel Cover Plate Industrial Air Spring Provide A Comfortable Ride / Airlift Airbags
  • Steel Cover Plate Industrial Air Spring Provide A Comfortable Ride / Airlift Airbags
  • Steel Cover Plate Industrial Air Spring Provide A Comfortable Ride / Airlift Airbags
Steel Cover Plate Industrial Air Spring Provide A Comfortable Ride / Airlift Airbags
Product Details:
Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 3B2300
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows GUOMAT: 3B2300
GUOMAT Bellows Number: 2300 Screw: 3/8-16UNC
Air Inlet: 1/2NPT Plate Dia.: 113 Mm
Design Height:: 187 Mm
High Light:

convoluted air spring

,

air helper springs

Air Lift Air Bags 3B2300 Air Spring Provide A Comfortable Ride





Operating Temperature: 57Cº to -54Cº

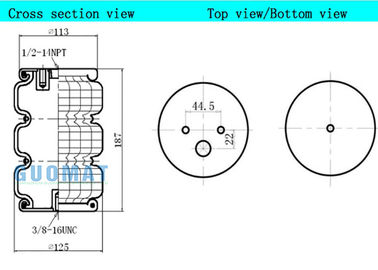

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 44.5 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 1/2-13UNC

Screw Center Distance of Bottom Cover Plate : MIDDLE



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/2-14NPT

Center Distance Between air inlet and Nut : 22 mm



Cover Plate

Top Cover Plate Diameter (Width): 113 mm

Bottom Cover Plate Diameter (Width): 113 mm



Rubber Bellows

Rubber Bellows Natural Diameter : 125 mm

Rubber Bellows MAX Diameter : 145 mm

Design Height: 187mm

Bellows # NO.: 2300



Bumper block / Buffer block

Without Bumper Block



Girdle Hoop / Girdle Ring

With Girdle Hoop :Two Pieces of Girdle Hoop





  • Air spring volume saves space compared to other springs
  • Roller protects air springs from wear and increases load capacity
  • No drilling required - Most kits use existing holes in the vehicle frame for bolt mounting
  • Easy to install, ordinary car repairers can operate
  • All kits are compatible with most 5-wheel and gooseneck hooks



GUOMAT 3B2300 can fit for the following cars:



ACURA MITSUBISHI INFINITI

BUICK NISSAN ISUZU

CADILLAC OLDSMOBILE JEEP

CHEVY PLYMOUTH KIA

CHRYSLER SATURN LEXUS

DODGE SCION LINCOLN

FORD SUZUKI MAZDA

GMC TOYOTA MERCURY

HONDA VOLKSWAGEN HYUNDAI

HUMMER



Steel Cover Plate Industrial Air Spring Provide A Comfortable Ride / Airlift Airbags 0Steel Cover Plate Industrial Air Spring Provide A Comfortable Ride / Airlift Airbags 1Steel Cover Plate Industrial Air Spring Provide A Comfortable Ride / Airlift Airbags 2
