| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6910D |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber And Iron/Steel | Warranty: | 12 Months |
|---|---|---|---|
| Weight: | 3.5 Kg | Other Name: | Air Actuators For Machine |
| Pressure Ability: | 0.2-0.8 M Pa | GUOMAT: | 2H160166 |
| Design Height: | 166mm | ||
| High Light: | convoluted air spring,air helper springs |
||

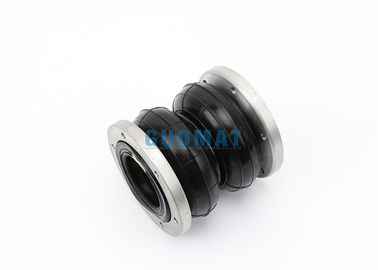

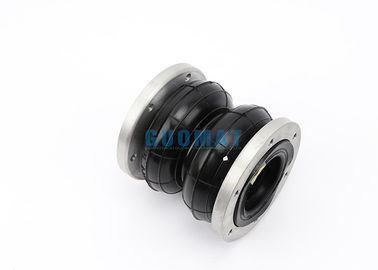

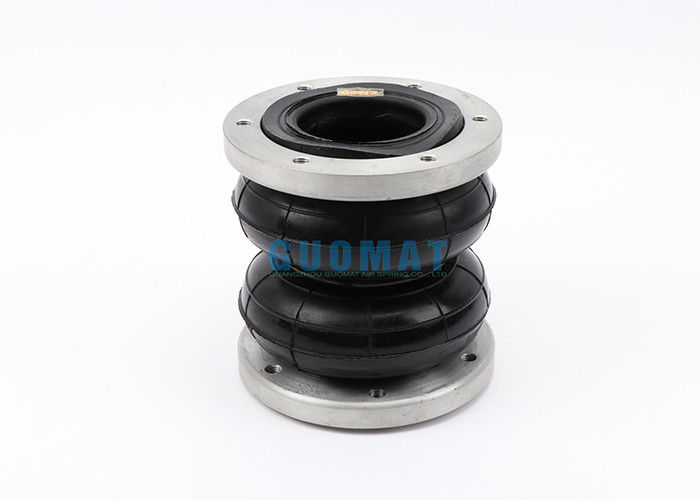

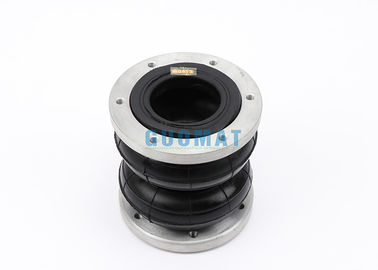

GUOMAT 2H160166 Industrial Air Spring With Flange Ring 140mm For Machine
Specifications and Technical Data of 2H160166
| Type Bellow Qty | Drift Diameter | Design OD | End OD | Design Height |
| 2H160166 | 2100 | 160 | 112 | 166 |
Other kind of H air springs:
| Type Bellow Qty | Drift Diameter | Design OD | End OD | Design Height |
| H145077-1 | 1115 | 145 | 118 | 77 |
| H150066-1 | 1104 | 150 | 88 | 66 |
| H160166-2 | 2100 | 160 | 112 | 166 |
| H160238-3 | 3100 | 160 | 112 | 238 |
| H168132-2 | 2120 | 168 | 136 | 132 |
| H200140-2 | 2150 | 200 | 132 | 140 |
| H215112-1 | 1125 | 215 | 150 | 112 |
| H235152-2 | 2180 | 235 | 145 | 152 |
| H250170-2 | 2188 | 250 | 128 | 170 |
| H250248-3 | 3188 | 250 | 128 | 248 |
| H260120-1 | 1170 | 260 | 150 | 120 |
| H280140-2 | 2230 | 280 | 200 | 140 |
| H301165-2 | 2240 | 301 | 210 | 165 |
| H320120-1 | 1230 | 320 | 182 | 120 |
| H350255-2 | 2250 | 350 | 260 | 255 |
| H360105-1 | 1290 | 360 | 220 | 105 |
| H400203-2 | 2320 | 400 | 261 | 203 |
| H400255-2 | 2300 | 400 | 310 | 255 |
