Industrial Press Rubber Air Spring Cross With Design High 210mm And Natural DIA.205MM

China Industrial Press Rubber Air Spring Cross With Design High 210mm And Natural DIA.205MM supplier
Industrial Press Rubber Air Spring Cross With Design High 210mm And Natural DIA.205MM supplier Industrial Press Rubber Air Spring Cross With Design High 210mm And Natural DIA.205MM supplier Industrial Press Rubber Air Spring Cross With Design High 210mm And Natural DIA.205MM supplier

Large Image :  Industrial Press Rubber Air Spring Cross With Design High 210mm And Natural DIA.205MM

Product Details:

Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: F-160-4R

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,paypal or others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber And Stainless Steel Yokohama: S-160-4R
GUOMAT: F-160-4R Layer Number: 4 Convolution
Using Maximum Internal Pressure: 0.88 Mpa Vibration Frequency: 2.5 Hz
Net Weight: 3.45 KG Gross Weight: 4.5 KG
Package Size: 220mm*220mm*220mm

Industrial Press Air Spring F-160-4R Cross S-160-4 With Design High 210mm and Natural DIA.205MM





Net Weight:3.45 KG



Gross Weight:4.5 KG



Package Size:220mm*220mm*220mm

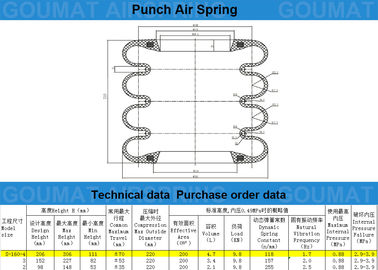

F-160-4R items Detailed Parameter Table:





GUOMAT NO. Reference No. Hight H(mm) Commonly Maximum Stroke(mm) The Largest Diameter When Compressed(mm)
Design High(mm) Maximum High(mm) Minimum Height(mm)

F-160-4 S-160-4 206 306 111 ±70 220



GUOMAT NO. Reference No. Standard Height,Internal Pressure 0.49 M pa When The General Value Using Maximum Internal Pressure (M pa) Internal Pressure (M pa)
Effective Area (Cm2) Volume(L) Load (K n) Dynamic Spring Parameters (N/Min) Vibration Frequency (Hz)

F-160-4 S-160-4 200 4.7 9.8 118 1.7 0.88 2.9-3.9







S-160-4R air spring fits below items



Scissor lift

Mechanical Hopper vibration and damping handling stop

Direct force

Platform lift

Short stroke mechanical linkage

Hot foil stamping press

Impact absorbtion

Roller tensioning

Quick lock device

Reel tensioning

Machine isolation





GUOMAT Has Punch Press Air Spring Cushion /Air Shock Absorber Part NO. Below:



GUOMAT Part NO. Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No.
F-240-4 S-240-4R 240-4r
F-240-3 S-240-3R 240-3r
F-240-2 S-240-2R 240-2r
F-240-1 S-240-1R 240-1r
F-220-4 S-220-4R 220-4r
F-220-3 S-220-3R 220-3r
F-220-2 S-220-2R 220-2r
F-200-2 S-200-2R 200-2r
F-200-3 S-200-3R 200-3r
F-200-4 S-200-4R 200-4r
F-160-1 S-160-1R 160-1r
F-160-2 S-160-2R 160-2r
F-160-3 S-160-3R 160-3r
F-160-4 S-160-4R 160-4r
F-120-4 S-120-4R 120-4r
F-120-3 S-120-3R 120-3r
F-120-2 S-120-2R 120-2r
F-100-4 S-100-4R 100-4r
F-90-3 S-90-3R 90-3r
F-90-2 S-90-2R 90-2r
F-90-1 S-90-1R 90-1r
F-300-1 S-300-1R 300-1r
F-300-2 S-300-2R 300-2r
F-300-3 S-300-3R 300-3r
F-300-4 S-300-4R 300-4r

Industrial Press Rubber Air Spring Cross With Design High 210mm And Natural DIA.205MMIndustrial Press Rubber Air Spring Cross With Design High 210mm And Natural DIA.205MMIndustrial Press Rubber Air Spring Cross With Design High 210mm And Natural DIA.205MM
