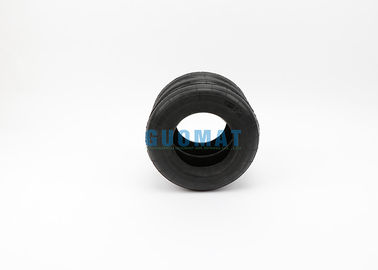

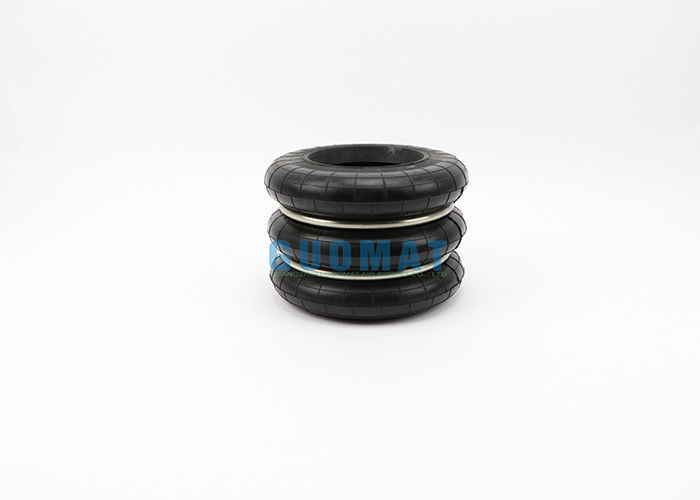

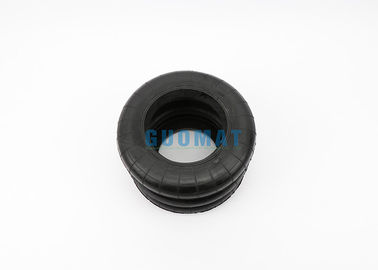

Stainless Steel / Rubber Air Spring Cushion S-120-3R Double Acting Punch Press

China Stainless Steel / Rubber Air Spring Cushion S-120-3R Double Acting Punch Press supplier
Stainless Steel / Rubber Air Spring Cushion S-120-3R Double Acting Punch Press supplier Stainless Steel / Rubber Air Spring Cushion S-120-3R Double Acting Punch Press supplier Stainless Steel / Rubber Air Spring Cushion S-120-3R Double Acting Punch Press supplier

Large Image :  Stainless Steel / Rubber Air Spring Cushion S-120-3R Double Acting Punch Press

Product Details:

Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: F-120-3R

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,paypal or others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber And Stainless Steel Yokohama: F-120-3R
GUOMAT: F-120-3R Layer Number: 3 Convolution
Using Maximum Internal Pressure: 0.88 Mpa Vibration Frequency: 2.7 Hz

Air Spring Cushion S-120-3R Double Acting Punch Press 120-3 Rubber Air Spring





F-120-3 items Detailed Parameter Table:





GUOMAT NO. Reference No. Hight H(mm) Commonly Maximum Stroke(mm) The Largest Diameter When Compressed(mm)
Design High(mm) Maximum High(mm) Minimum Height(mm)

F-120-3 S-120-3 152 227 82 ±53 180






GUOMAT NO. Reference No. Standard Height,Internal Pressure 0.49 M pa When The General Value Using Maximum Internal Pressure (M pa) Internal Pressure (M pa)
Effective Area (Cm2) Volume(L) Load (K n) Dynamic Spring Parameters (N/Min) Vibration Frequency (Hz)

F-120-3 S-120-3 113 2.1 5.2 98 2.2 0.88 2.9-3.9




S-120-3R air spring fits below items



Papermaking equipment

Scissor lift

Mechanical Hopper vibration and damping handling stop

Direct force

Platform lift

Short stroke mechanical linkage

Hot foil stamping press

Impact absorbtion

Roller tensioning

Quick lock device

Reel tensioning

Machine isolation





GUOMAT Has Punch Press Air Spring Cushion /Air Shock Absorber Part NO. Below:



GUOMAT Part NO.

Japan YOKOHAMA

Reference No.

Japan YOKOHAMA

Reference No.

GUOMAT

Part NO.

Japan YOKOHAMA

Reference No.

Japan YOKOHAMA

Reference No.

F-600-1 S-600-1R S 600 1R F-240-4 S-240-4R S 240 4R
F-600-2 S-600-2R S 600 2R F-240-3 S-240-3R S 240 3R
F-600-3 S-600-3R S 600 3R F-240-2 S-240-2R S 240 2R
F-600-4 S-600-4R S 600 4R F-240-1 S-240-1R S 240 1R
F-600-5 S-600-5R S 600 5R F-220-4 S-220-4R S 220 4R
F-550-2 S-550-2R S 550 2R F-220-3 S-220-3R S 220 3R
F-550-3 S-550-3R S 550 3R F-220-2 S-220-2R S 220 2R
F-500-2 S-500-2R S 500 2R F-200-2 S-200-2R S 200 2R
F-500-3 S-500-3R S 500 3R F-200-3 S-200-3R S 200 3R
F-500-4 S-500-4R S 500 4R F-200-4 S-200-4R S 200 4R
F-500-5 S-500-5R S 500 5R F-160-1 S-160-1R S 160 1R
F-450-1 S-450-1R S 450 1R F-160-2 S-160-2R S 160 2R
F-450-2 S-450-2R S 450 2R F-160-3 S-160-3R S 160 3R
F-450-3 S-450-3R S 450 3R F-160-4 S-160-4R S 160 4R
F-450-4 S-450-4R S 450 4R F-120-4 S-120-4R S 120 4R
F-450-5 S-450-5R S 450 5R F-120-3 S-120-3R S 120 3R
F-400-2 S-400-2R S 400 2R F-120-2 S-120-2R S 120 2R
F-400-3 S-400-3R S 400 3R F-100-4 S-100-4R S 100 4R
F-400-4 S-400-4R S 400 4R F-100-3 S-100-3R S 100 3R
F-400-5 S-400-5R S 400 5R F-100-2 S-100-2R S 100 2R
F-350-1 S-350-1R S 350 1R F-90-3 S-90-3R S 90 3R
F-350-2 S-350-2R S 350 2R F-90-2 S-90-2R S 90 2R
F-350-3 S-350-3R S 350 3R F-90-1 S-90-1R S 90 1R
F-350-4 S-350-4R S 350 4R F-300-1 S-300-1R S 300 1R
F-300-3 S-300-3R S 300 3R F-300-2 S-300-2R S 300 2R
F-300-4 S-300-4R S 300 4R





Stainless Steel / Rubber Air Spring Cushion S-120-3R Double Acting Punch PressStainless Steel / Rubber Air Spring Cushion S-120-3R Double Acting Punch PressStainless Steel / Rubber Air Spring Cushion S-120-3R Double Acting Punch Press
