W01-M58-7530 Triple Convoluted Industrial Air Spring Isolator 3H320350

China W01-M58-7530 Triple Convoluted Industrial Air Spring Isolator 3H320350 supplier
W01-M58-7530 Triple Convoluted Industrial Air Spring Isolator 3H320350 supplier W01-M58-7530 Triple Convoluted Industrial Air Spring Isolator 3H320350 supplier W01-M58-7530 Triple Convoluted Industrial Air Spring Isolator 3H320350 supplier W01-M58-7530 Triple Convoluted Industrial Air Spring Isolator 3H320350 supplier

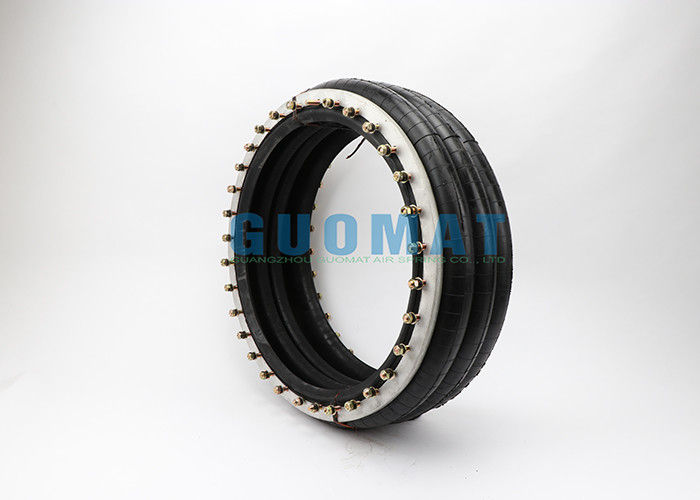

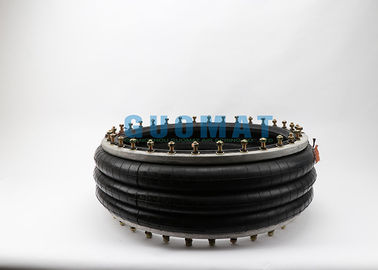

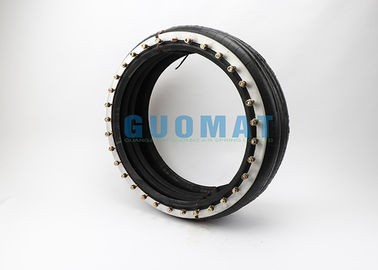

Large Image :  W01-M58-7530 Triple Convoluted Industrial Air Spring Isolator 3H320350

Product Details:

Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 3H320350

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Aluminum Alloy And Rubber GUOMAT: W01-M58-7530
Warranty: 12 Months Net Weight: 12.5 KG
Other Name: Industry Air Spring Isolator Pressure Ability: 2-8 M Pa
Gross Weight: 13.8 KG Flange Ring: With Or Without

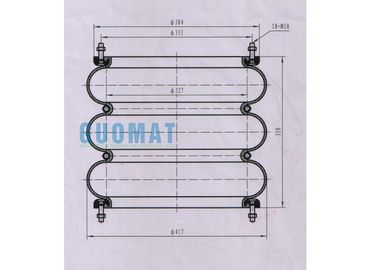

Connection Method: Flange Connection Flange Ring Size: 384 Mm
BOLT CIRCLE DIA: 350 Mm

W01-M58-7530 Triple Convoluted Air Spring GUOMAT 3H320350 At 0.7 Mpa Max Dia 450mm





Industrial Double Convoluted Air Spring Specifications



Description Assembly

Description
Assembly Order No.
Style 312
Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts, nuts, washers
W01-M58-7530
Two Ply Bellows
Rolled plate assembly, 1/2 blind nuts, 3/4 BSP
SEE NOTE BELOW
Rubber bellows only
W01-358-7914
Style 207
Ribbed neck aluminum
bead rings (equal spacing),
45 mm bolts, nuts, washers
Order No.: W01-M58-6987

High Strength Construction
Rubber bellows only
Order No.: W01-358-0207



Assembly Height (mm)



  360 320 280 240 200 160 120
Volume @ 7 BAR (cu cm)   38788 35273 31368 27154 22558 17629 8017
EFF Area @ 7 BAR (cm sq)   772 890 984 1056 1123 1207 1290

kN Force



@3 BAR



21.55 25.42 28.40 30.78 33.01 35.55 38.09

@4 BAR



29.90 35.13 39.00 41.90 44.63 47.98 51.39

@5 BAR



37.73 44.10 48.94 52.50 55.85 60.10 64.29

@6 BAR



46.24 53.57 59.32 63.61 67.62 72.74 77.75

@7BAR



54.00 62.30 68.90 73.91 78.58 84.47 90.31





Dynamic Characteristics at 330 mm Design Height (Required for Airmount isolator design only)
Gauge
Pressure
(BAR)
Load (KN) Spring Rate (kN/m) Natural Frequency Hz
3

24.56

204 1.44
4

33.97

270 1.40
5

42.68

328 1.38
6

51.90

385 1.36
7

60.40

438 1.34









Flange connection type of air spring model comparison table
GUOMAT NO. Contitech NO. GUOMAT NO. Contitech NO.
FS22-3DICR FS 22-3 DI CR FS960-12RS FS 960-12 RS
FS44-5DICR FS 44-5 DI CR FS1330-11RS FS 1330-11 RS
FS76-7DICR FS 76-7 DI CR FS1710-12RS FS 1710-12 RS
FS76-7DSCR FS 76-7 DS CR FS2870-16RS FS 2870-16 RS
FS138-8DS FS 138-8 DS FS5450-16RS FS 5450-16 RS
FS210-10DS FS 210-10 DS FD960-22RS FD 960-22 RS
FS412-10DS FS 412-10 DS FD1120-30RI FD 1120-30 RI
FS614-13DS FS 614-13 DS FD1330-25RS FD 1330-25 RS
FS816-15DS FS 816-15 DS FD1710-25RS FD 1710-25 RS
FD22-4DICR FD 22-4 DI CR FD1730-40RI FD 1730-40 RI
FD44-10DICR FD 44-10 DI CR FD2380-24RS FD 2380-24 RS
FD76-14DICR FD 76-14 DI CR FD2470-40RI FD 2470-40 RI
FD76-14DSCR FD 76-14 DS CR FD2870-30RS FD 2870-30 RS
FD138-18DS FD 138-18 DS FD5450-28RS FD 5450-28 RS
FD209-21DS FD 209-21 DS FT960-34RS FT 960-34 RS
FD210-22DS FD 210-22 DS FT1330-35RS FT 1330-35 RS
FD412-18DS FD 412-18 DS FT1710-38RS FT 1710-38 RS
FD614-26DS FD 614-26 DS FT2870-45RS FT 2870-45 RS
FD816-30DS FD 816-30 DS FT5450-44RS FT 5450-44 RS
FT22-6DICR FT 22-6 DI CR
FT44-15DICR FT 44-15 DI CR
FT76-20DICR FT 76-20 DI CR
FT76-20DSCR FT 76-20 DS CR
FT138-26DS FT 138-26 DS
FT210-32DS FT 210-32 DS
FT412-32DS FT 412-32 DS
FT614-36DS FT 614-36 DS
FT816-40DS FT 816-40 DS
