Firestone W01 M58 6984 Industrial Air Spring GUOMAT 3B6984 At 0.7 Mpa Max Dia 715mm

Certification
Good quality Industrial Air Spring for sales
Good quality Industrial Air Spring for sales
GUOMAT has many types of air spring and can accurately meet our requirements. You have advantage price and professional service team.

—— Vlad from Russia

The air suspension spring have passed the test and they are fitting for our car model. Through the cooperation we are familiar with each other.

—— Eric from Southeast Asia

Thank you very much for your patience and prompt reply.GUOMAT gives me big help,delivery time is very fast.

—— Peter from European

You have been very professional in your sale,I am trying to expand my work in Italy if you are personally interested in making a profit.

—— Ivan from Italy

I'm Online Chat Now

Firestone W01 M58 6984 Industrial Air Spring GUOMAT 3B6984 At 0.7 Mpa Max Dia 715mm

China Firestone W01 M58 6984 Industrial Air Spring GUOMAT 3B6984 At 0.7 Mpa Max Dia 715mm supplier
Firestone W01 M58 6984 Industrial Air Spring GUOMAT 3B6984 At 0.7 Mpa Max Dia 715mm supplier Firestone W01 M58 6984 Industrial Air Spring GUOMAT 3B6984 At 0.7 Mpa Max Dia 715mm supplier Firestone W01 M58 6984 Industrial Air Spring GUOMAT 3B6984 At 0.7 Mpa Max Dia 715mm supplier Firestone W01 M58 6984 Industrial Air Spring GUOMAT 3B6984 At 0.7 Mpa Max Dia 715mm supplier Firestone W01 M58 6984 Industrial Air Spring GUOMAT 3B6984 At 0.7 Mpa Max Dia 715mm supplier

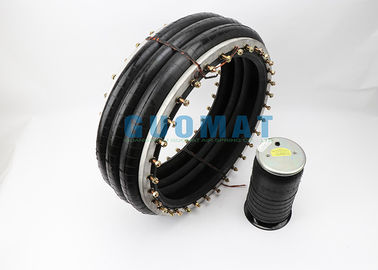

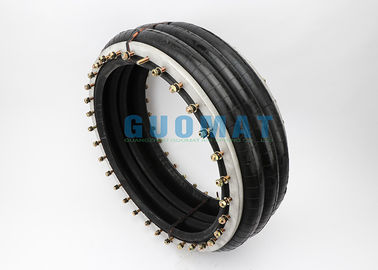

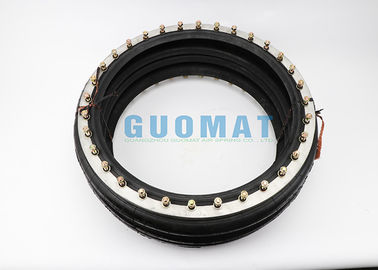

Large Image :  Firestone W01 M58 6984 Industrial Air Spring GUOMAT 3B6984 At 0.7 Mpa Max Dia 715mm

Product Details:

Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 3H580384

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Aluminum Alloy And Rubber GUOMAT: W01-M58-6984
Warranty: 12 Months Net Weight: 19.5 KG
Other Name: Industry Air Spring Isolator Pressure Ability: 0.2-0.8 M Pa
Gross Weight: 20.5 KG Flange Ring: With Or Without
Connection Method: Flange Connection Flange Ring Size: 638 Mm
BOLT CIRCLE DIA: 596 Mm

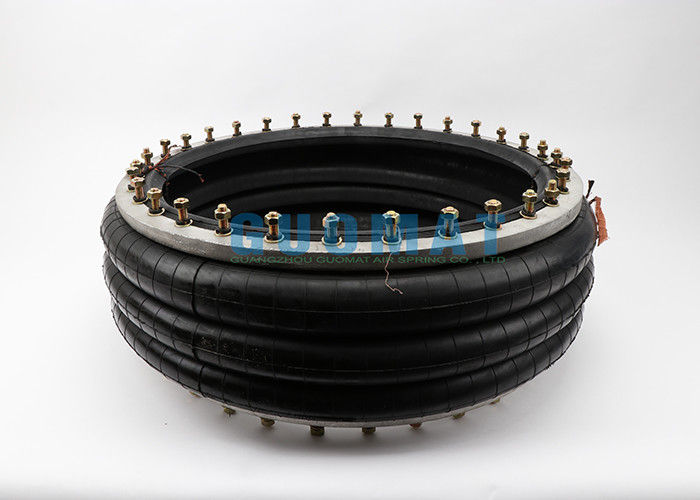

Firestone W01 M58 6984 Industrial Air Spring GUOMAT 3B6984 At 0.7 Mpa Max Dia 715mm





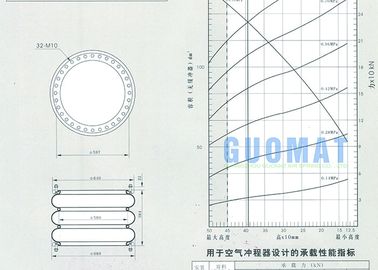

Industrial Triple Convoluted Air Spring Specifications



Description Assembly

Description
Assembly Order No.
Style 321
Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts, nuts, washers
W01-M58-6984
Two Ply Bellows
Rubber bellows only
W01-358-7919



Manufacturer Part Number Short Description W01-M58-6984, W01M586984, WO1-M58-6984, WO1M586984 Bead ring Type 4
Maximum Diameter @ 7 Bar (mm) 709 Dim# C (Bolt Circle Diameter mm) 597
Maximum Height (mm) 114 # of Bolts (each ring) 32
Maximum Stroke (mm) 361 Design Height (mm) 381
Minimum Usable Height (mm) 475 3 Bar (kN) 78.5
25 mm (kN) 174.6 5 Bar (kN) 132.9
50% of Max Stroke (kN) 150 7 Bar (kN) 187.9
Maximum Stroke (kN) 106.5 Natural Frequency (@5 Bar)(fn(Hz) 1.2
Applicable Technigram? 113 7 Hz 97
Material 2-Ply, High Strength Cord 13 Hz 99.3
    25 Hz 99.8





Assembly Height (mm)



  440 400 360 320 280 240 200 160
Volume @ 7 BAR (cu cm)   135784 125615 114722 102796 90465 77839 64589 50778
EFF Area @ 7 BAR (cm sq)   2394 2596 2757 2897 3026 3151 3277 3407

kN Force



@3 BAR



67.39 74.50 80.12 84.65 88.33 91.63 95.16 99.35

@4 BAR



92.19 101.14 108.37 114.48 119.71 124.49 129.35 134.85

@5 BAR



116.52 127.36 136.16 143.61 150.09 156.08 162.19 168.98

@6 BAR



143.26 155.70 165.72 174.35 182.12 189.54 197.05 204.99

@7BAR



167.54 181.66 192.94 202.76 211.80 220.56 229.36 238.43





Dynamic Characteristics at 380 mm Design Height (Required for Airmount isolator design only)

Gauge

Pressure

(BAR)

Load (KN) Spring Rate (kN/m) Natural Frequency Hz
3 77.48 465 1.22
4 104.95 592 1.18
5 132.00 716 1.16
6 160.98 839 1.14
7 187.60 954 1.12







Flange connection type of air spring model comparison table
GUOMAT NO. Contitech NO. GUOMAT NO. Contitech NO.
FS22-3DICR FS 22-3 DI CR FS960-12RS FS 960-12 RS
FS44-5DICR FS 44-5 DI CR FS1330-11RS FS 1330-11 RS
FS76-7DICR FS 76-7 DI CR FS1710-12RS FS 1710-12 RS
FS76-7DSCR FS 76-7 DS CR FS2870-16RS FS 2870-16 RS
FS138-8DS FS 138-8 DS FS5450-16RS FS 5450-16 RS
FS210-10DS FS 210-10 DS FD960-22RS FD 960-22 RS
FS412-10DS FS 412-10 DS FD1120-30RI FD 1120-30 RI
FS614-13DS FS 614-13 DS FD1330-25RS FD 1330-25 RS
FS816-15DS FS 816-15 DS FD1710-25RS FD 1710-25 RS
FD22-4DICR FD 22-4 DI CR FD1730-40RI FD 1730-40 RI
FD44-10DICR FD 44-10 DI CR FD2380-24RS FD 2380-24 RS
FD76-14DICR FD 76-14 DI CR FD2470-40RI FD 2470-40 RI
FD76-14DSCR FD 76-14 DS CR FD2870-30RS FD 2870-30 RS
FD138-18DS FD 138-18 DS FD5450-28RS FD 5450-28 RS
FD209-21DS FD 209-21 DS FT960-34RS FT 960-34 RS
FD210-22DS FD 210-22 DS FT1330-35RS FT 1330-35 RS
FD412-18DS FD 412-18 DS FT1710-38RS FT 1710-38 RS
FD614-26DS FD 614-26 DS FT2870-45RS FT 2870-45 RS
FD816-30DS FD 816-30 DS FT5450-44RS FT 5450-44 RS
FT22-6DICR FT 22-6 DI CR
FT44-15DICR FT 44-15 DI CR
FT76-20DICR FT 76-20 DI CR
FT76-20DSCR FT 76-20 DS CR
FT138-26DS FT 138-26 DS
FT210-32DS FT 210-32 DS
FT412-32DS FT 412-32 DS
FT614-36DS FT 614-36 DS
FT816-40DS FT 816-40 DS



Firestone W01 M58 6984 Industrial Air Spring GUOMAT 3B6984 At 0.7 Mpa Max Dia 715mmFirestone W01 M58 6984 Industrial Air Spring GUOMAT 3B6984 At 0.7 Mpa Max Dia 715mmFirestone W01 M58 6984 Industrial Air Spring GUOMAT 3B6984 At 0.7 Mpa Max Dia 715mm
