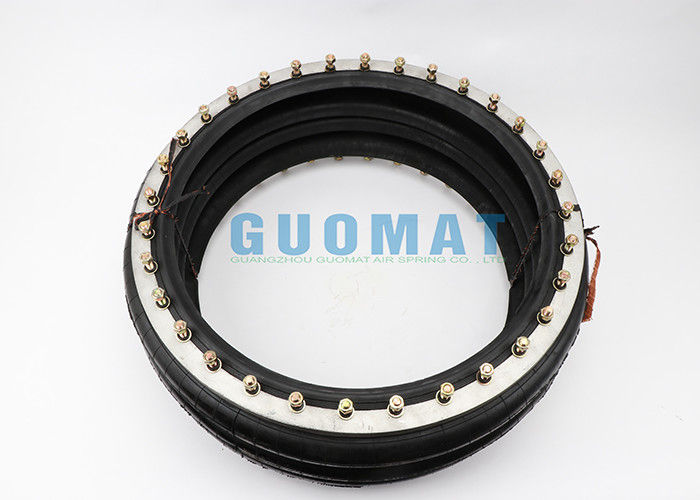

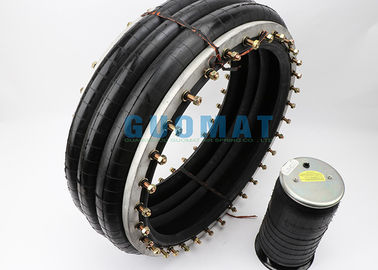

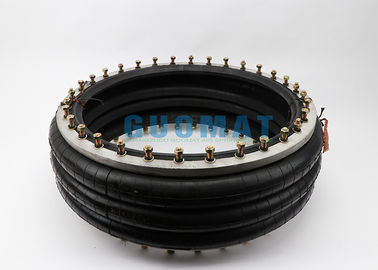

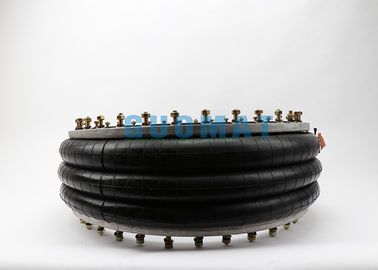

W01M586984 Industrial Air Spring Max Dia 715mm Big Size Rubber Bellows With Flange Ring

Certification
Good quality Industrial Air Spring for sales
Good quality Industrial Air Spring for sales
GUOMAT has many types of air spring and can accurately meet our requirements. You have advantage price and professional service team.

—— Vlad from Russia

The air suspension spring have passed the test and they are fitting for our car model. Through the cooperation we are familiar with each other.

—— Eric from Southeast Asia

Thank you very much for your patience and prompt reply.GUOMAT gives me big help,delivery time is very fast.

—— Peter from European

You have been very professional in your sale,I am trying to expand my work in Italy if you are personally interested in making a profit.

—— Ivan from Italy

I'm Online Chat Now

W01M586984 Industrial Air Spring Max Dia 715mm Big Size Rubber Bellows With Flange Ring

China W01M586984 Industrial Air Spring Max Dia 715mm Big Size Rubber Bellows With Flange Ring supplier
W01M586984 Industrial Air Spring Max Dia 715mm Big Size Rubber Bellows With Flange Ring supplier W01M586984 Industrial Air Spring Max Dia 715mm Big Size Rubber Bellows With Flange Ring supplier W01M586984 Industrial Air Spring Max Dia 715mm Big Size Rubber Bellows With Flange Ring supplier W01M586984 Industrial Air Spring Max Dia 715mm Big Size Rubber Bellows With Flange Ring supplier

Large Image :  W01M586984 Industrial Air Spring Max Dia 715mm Big Size Rubber Bellows With Flange Ring

Product Details:

Place of Origin: China
Brand Name: GUOMAT
Certification: 3B6984
Model Number: 36984

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Aluminum Alloy And Rubber Firestone: W01M586984
Warranty: 12 Months Net Weight: 19.5 KG
Other Name: Industry Rubber Air Spring Pressure Ability: 0.2-0.8 M Pa
Gross Weight: 20.5 KG Flange Ring: With
Connection Method: Flange Ring Connection Flange Ring Size: 638 Mm
BOLT CIRCLE DIA: 596 Mm

Firestone W01 M58 6984 Triple Convoluted Air Spring GUOMAT 3H580384 At 0.7 Mpa Max Dia 715mm





Industrial Triple Convoluted Air Spring Specifications



Description Assembly

Description
Assembly Order No.
Style 321
Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts, nuts, washers
W01-M58-6984
Two Ply Bellows
Rubber bellows only
W01-358-7919





The main role of air spring hoop:


The shape of the air spring is peculiar. It is similar to the steel coil spring. However, in order to meet the various needs of the market and improve the adaptability of air spring installation and use on various equipments, the high-altitude air spring variety form Diverse, the dimensions of the air springs are also different. According to the number of “drum kits”, the high-mass air springs can be divided into one song (single), two songs (double song), three songs... up to Thirteen songs. There are a number of hoops in the middle of the air springs above the second one. What is the role of the hoop? What are the benefits of this design?




Manufacturer Part Number Short Description W01-M58-6984, W01M586984, WO1-M58-6984, WO1M586984 Bead ring Type 4
Maximum Diameter @ 7 Bar (mm) 709 Dim# C (Bolt Circle Diameter mm) 597
Maximum Height (mm) 114 # of Bolts (each ring) 32
Maximum Stroke (mm) 361 Design Height (mm) 381
Minimum Usable Height (mm) 475 3 Bar (kN) 78.5
25 mm (kN) 174.6 5 Bar (kN) 132.9
50% of Max Stroke (kN) 150 7 Bar (kN) 187.9
Maximum Stroke (kN) 106.5 Natural Frequency (@5 Bar)(fn(Hz) 1.2
Applicable Technigram? 113 7 Hz 97
Material 2-Ply, High Strength Cord 13 Hz 99.3
    25 Hz 99.8





Assembly Height (mm)



  440 400 360 320 280 240 200 160
Volume @ 7 BAR (cu cm)   135784 125615 114722 102796 90465 77839 64589 50778
EFF Area @ 7 BAR (cm sq)   2394 2596 2757 2897 3026 3151 3277 3407

kN Force



@3 BAR



67.39 74.50 80.12 84.65 88.33 91.63 95.16 99.35

@4 BAR



92.19 101.14 108.37 114.48 119.71 124.49 129.35 134.85

@5 BAR



116.52 127.36 136.16 143.61 150.09 156.08 162.19 168.98

@6 BAR



143.26 155.70 165.72 174.35 182.12 189.54 197.05 204.99

@7BAR



167.54 181.66 192.94 202.76 211.80 220.56 229.36 238.43





The benefits of this design are mainly the following:


1. Improve the efficiency of inflation


From one song to two songs, to three songs, to four songs... It is not difficult to imagine that the more hoops, the more effective it is to reduce the internal space of the skin. Increasing the aeration efficiency of the air spring may not be obvious in the common two-curved, three-curved air springs. But if it is more than half a meter in diameter or some air springs that need to adjust the internal air pressure frequently, you can clearly feel the wonder of this design.





2. Reduce the use of work space


During the use of the air spring, the air spring always shoulders the buffer, the weight bearing, and the lifting effect are all “heavy and heavy”. In the absence of the hoop, the air is compressed from the moment of the air spring, and the internal compressed air Under the pressure of the outside world, the middle part of the airbag rapidly expands because the upper and lower ends are sealed and fixed by the end cover. The process of expansion may cause the wear and tear of the skin, piercing, causing damage to the skin. The design of the hoop can improve the adaptability of the air spring to the factory site to a certain extent. At the same time, the compact setting and the reduction of space waste are more suitable. Design requirements.



W01M586984 Industrial Air Spring Max Dia 715mm Big Size Rubber Bellows With Flange RingW01M586984 Industrial Air Spring Max Dia 715mm Big Size Rubber Bellows With Flange RingW01M586984 Industrial Air Spring Max Dia 715mm Big Size Rubber Bellows With Flange Ring
