Payment & Shipping Terms:
|Material:||Rubber And Stainless Steel||Goodyear:||1B5-510|
|Warranty:||12 Months||Weight:||1.0 Kg|
|Other Name:||Air Suspension System||Pressure Ability:||0.2-0.8 M Pa|

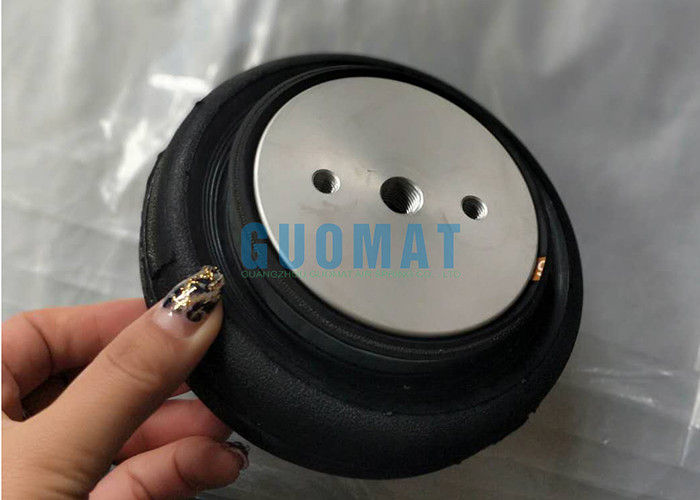

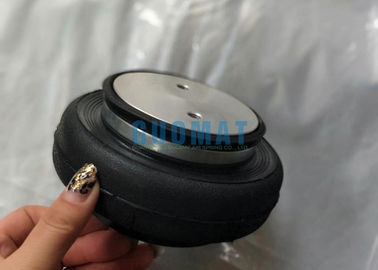

GUOMAT 1K130070 Cross To Goodyear 1B5-510 Industrial Air Spring Bags
OEM Original Manufacturer:
1B5-510 Goodyear Air Spring
Goodyear #: 1B5-510
Bellow Type: Single
Goodyear Bellow #: 579-91-3-501
Bottom Plate/Pison Type:
Top Plate Hole/Stud Qty: 2
Top Plate Dia: 3.75
Top Plate C to C Diameter: 1.75
Bottom Plate Hole Stud Qyt: 2
Bottom Plate Dia: 2.75
Bottom Plate C to C Diameter: 1.75
Bottom Plate Alignment: Parallel
Min Height: 1.8
Max Height: 4.8
The shipper needs an air suspension device.
* Driver comfort is higher.
* Increase resale value.
* Protect hinges, lamps, rivets and all trailer hardware.
The reason for the increase in air suspension usage:
* Suspension manufacturers have built a greater degree of durability,
Longer warranty period.
* Requires greater axis offset.
Air springTrucks, trailers and buses
Super-Cushion® air spring for truck, trailer bus, and cab and seat spring protection
Goods, providing constant trailers and providing long-term, trouble-free service.
Super-Cushion® air springs provide new high capacity for your trucks, trailers and buses
And long life They offer a quiet, buffering ride. Trucks, trailers and buses
The body is longer than the steel spring, because the vibration is smaller. driver
Ride more comfortable, become exhausted, remain vigilant. plus
The goods have better shock and vibration protection. Whenever you want to add
A shaft, Super-Cushion® air spring is suitable.
