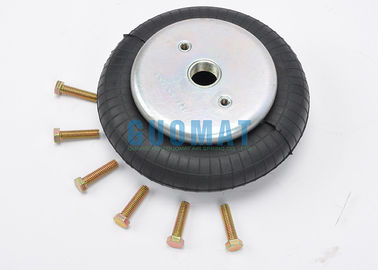

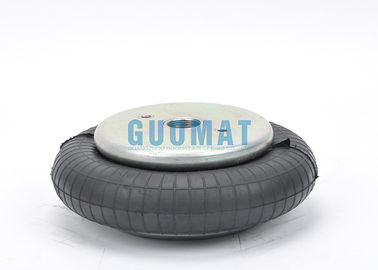

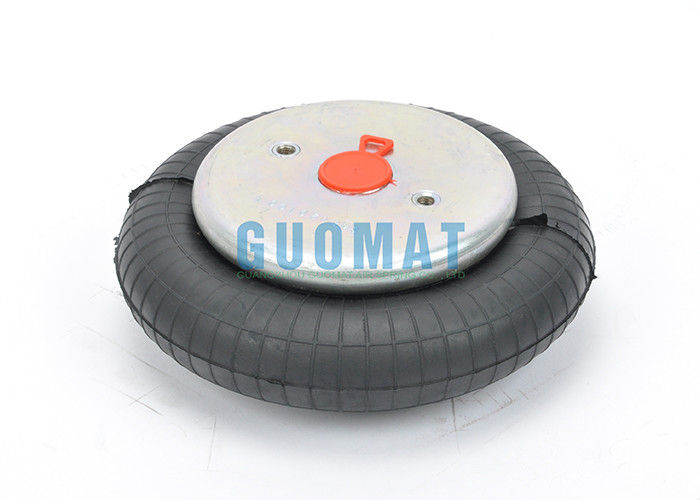

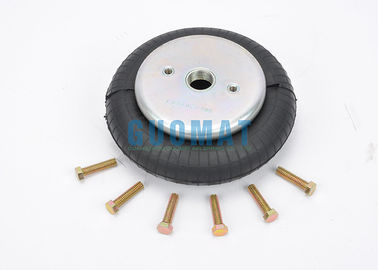

Firestone Industrial Air Spring Contitech FS120-9 Single Rubber Bags W01-M58-6166

Name: Firestone Industrial Air Spring Contitech FS120-9 Single Rubber Bags W01-M58-6166
Brand: GUOMAT
SKU: 1B120-9D
Rating: 4.8 (159 reviews)

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B120-9D

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union,Paypal or Others
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Rubber Steel	Firestone:	W01-M58-6166
Warranty:	12 Months	Weight:	1.6 Kg
Other Name:	Industrial Air Actuator	Pressure Ability:	0.2-0.8 M Pa
Screw:	2XM8x1.25	Air Inlet:	1/4
High Light:	convoluted air spring , air helper springs

W01-M58-6166 Firestone Industrial Air Spring Contitech FS120-9 Single Rubber Bags

Technical Parameters of 1B120-9D

❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 PiecesXM8x1.25
Screw Center Distance of Top Cover Plate :70mm
Bottom Cover Plate Screw (Nut) Tooth : 2 PiecesXM8x1.25
Screw Center Distance of Bottom Cover Plate :70 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/4
❸ Cover Plate
Top Cover Plate Diameter (Width): 135mm
Bottom Cover Plate Diameter (Width): 135mm
❹Rubber Bellows
Rubber Bellows MAX Diameter : 215 mm
Working Stroke:MIN 50 To MAX 115 MM
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :NO Piece of Girdle Hoop

Min. pressure – 0 psi
Return force to min. height – <45LBF/200N
Overall Weight – 4.4LB
Min. Design Height – 1.97inch/50MM
Inst.Space Required – 9.06inch/230MM
Max. Stroke – 3.34inch/85MM

GUOMAT:1B120-9

OEM Original Equipment Manufacturer:FS 120-9 CI

AIR INLET 1/4 NPT:

Firestone : W01-M58-6166

Contitech : FS 120-9

Dunlop(FR) : 8’’x1 S08100

Bosch : 822419008

Weforma : WBE 300-E2

PNEUMATIC APPLICATION – STATIC CHARACTERISTIC VALUES

Force F [lbf]
Pressure p [psi]	40	60	80	100	Vol. V [in.³]
H 4.50 in./114.3MM	728	1130	1570	1970	110
H 4.00 in./101.6MM	905	1400	1940	2390	100
H 3.50 in./88.9MM	1050	1610	2240	2740	90
H 3.00 in./76.2MM	1170	1770	2450	3020	75
H 2.50 in./63.5MM	1270	1900	2630	3260	57

VIBRATION ISOLATION – DYNAMIC CHARACTERISTICS

Pressure p [psi]	40	60	80	100	120	Vol. V [in.³]
Force (load) F [lbf]	801	1,240	1,700	2,130	2,530	110
Spring rate c [lbf/in]	709	949	1,190	1,430	1,670	110
Natural Frequency f0 [Hz]	2.9	2.8	2.7	2.6	2.6	110
Design height H: recommended 4.33 inch, minimum 3.54 inch

PURCHASE ORDER DATA

Type

Air Inlet

Order No.

with crimped plates

3/4 NPT

0 in. excentrical

75349

with crimped plates

1/4 NPT

0 in. excentrical

75360

SERVICE INSTRUCTIONS

Thread	max. Torque
	3/8-16 UNC	20 lbf ft
	1/4 NPT	20 lbf ft
	3/4 NPT	40 lbf ft

Pay special attention to the fact that rubber is not an "additional rule" for rubber wear. The closer the polarity is, the lower the wear will be than the "addition" and the wear will be highest as the crosslink density increases. Value for money.

Rubber wear with low glass transition temperature and good molecular chain flexibility is relatively small.
Add high styrene, short fiber, PVC, PP, polyoxymethylene, PE, nylon and anti-aging agent to the rubber to reduce rubber wear.
Add high styrene, short fiber, PVC, PP, polyoxymethylene, PE, nylon and anti-aging agent to the rubber to reduce rubber wear.
