FS 330-11 CI Contitech Convoluted Air Spring Shocks / Single Convolution Air Actuator

FS 330-11 CI Contitech Convoluted Air Spring Shocks / Single Convolution Air Actuator

  • FS 330-11 CI Contitech Convoluted Air Spring Shocks / Single Convolution Air Actuator
  • FS 330-11 CI Contitech Convoluted Air Spring Shocks / Single Convolution Air Actuator
  • FS 330-11 CI Contitech Convoluted Air Spring Shocks / Single Convolution Air Actuator
  • FS 330-11 CI Contitech Convoluted Air Spring Shocks / Single Convolution Air Actuator
FS 330-11 CI Contitech Convoluted Air Spring Shocks / Single Convolution Air Actuator
Product Details:
Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 1B5330
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber Steel Contitech: FS 330-11
Warranty: 1 Year Net Weight: 5.0 Kg
Other Names: Air Actuation Air Vibration Industrial Shock Absorbers Pressure Ability: 0.2-0.8 M Pa
Gross Weight: 5.5 Kg Package Size: 33*33*11 CM
High Light:

convoluted air spring

,

air helper springs

FS 330-11 CI Contitech Convoluted Industrial Air Spring Shock Single Convolution Air Actuator





GUOMAT 1B5530​ Specifications and Technical Data



Order Number: FS 330-11

Contitech Part Number:FS 330-11

Compressed Height: 2.12

Top Cover Plate Diameter: 9.00 inches / 231mm

Bottom Piston Number: 3212 or 3183

Bottom Cover Plate Diameter: 9.00 inches / 231mm

Screw Center Distance : 157.5 mm

Distance Gas Hole Between Nut 73 mm

Top Cover Plate Screw (Nut) Tooth : 2pcsX 3/8-16UNC

Bottom Cover Plate Screw (Nut) Tooth : 2pcsX 3/8-16UNC

Rubber Bellows MAX Diameter(Maximum Diameter): 12.9 inches / 325 mm

Rubber Bellows Natural Diameter 300 mm

The Working Stroke : MAX 160 mm to MIN 55 mm

Compressed Height: 2.12 inches / 105 mm

Gas Hole / Air inlet : 1/4 N P.T.F.

Firestone Bellows Number: 19

Goodyear Part Number:1B12-300 / 1B12-313

Goodyear Bellows Number:578-91-3-301 / 578 91 3 301 / 578913301

Triangle Part Number:4474

Triangle Bellows Number:6374

Holland (Neway) Number:905-57-226

Loading Capacity at 20 psig: 1,300 lbsf

Loading Capacity at 60 psig: 3,900 lbsf

Loading Capacity at 90 psig: 5,850 lbsf

Operating Temperature: 57Cº to -54Cº





OEM Original Equipment Manufacturer:





goodyear 1B12-300/313
firestone W01-358-7008
contitech FS330-11 474
triangle 6374/4474



Type Order No. Type Order No.
Rubber bellows only 72539 with crimped plates, G1 air inlet,A = 66 mm excentrical 2681060000
with crimped plates, G1/4 air inlet,A = 73 mm excentrical 60424 with stainless steel crimped plates, G3/4 air inlet
with crimped plates, G3/4 air inlet,A = 73 mm excentrical 62743 A = 73 mm excentrical 69583







Vibration isolation – dynamic characteristic values

Design height H: recommended 130mm, minimum 100mm

Pressure p [bar] 3 4 5 6 7 8 Vol. V [l]
Force (Load) [kN] 10.7 14.2 17.8 21.8 25.4 29 7
Spring rate [N/mm] 264.5 329 393.5 458 522.5 587 7
Natural frequency [Hz] 2.5 2.4 2.4 2.3 2.3 2.3 7







Pneumatic application – static characteristic values

Force F [kN]

Pressure p [bar] 3 4 5 6 7 8
Height H [mm] 140 9.46 12.7 15.8 19.5 22.8 26
  120 11.9 15.7 19.6 23.8 27.8 31.8
  100 13.6 18.1 22.7 27.6 32.1 36.7

Packaging information:

Carton size:33*33*22cm

N.W.:4.8 KG

G.W.:5.5 KG





Note:



This air spring is generally in stock. The products produced by GUOMAT conform to national standards. The warranty is one year. Any quality problem can be exchanged within one year.

There is no limit to the number of purchases. Small quantities are generally sent by international express, such as DHL, FEDEX, UPS, TNT, etc. The time is also very fast, usually within 3-7 working days to receive the goods.

Air Spring Use on Industrial Applications

Air Spring provides solutions for vibration installation in a wide range of machines. From technical design to coordination of various system components. Air springs can be used in many applications to effectively reduce the effects of vibration on the equipment. Currently, more and more industrial equipment uses air springs. GUOMAT air springs can achieve very low natural frequencies, from 0.5 to 3.5 Hz, depending on the type. With loads ranging from 0.5 kN to over 440 kN, air isolators provide efficient installation for sensitive measuring instruments and heavy-duty foundations.





Industrial Equipments Such As



Papermaking equipment, large washing machine, water treatment equipment, fitness equipment, punch press, leather draw machine, automobile testing station, medical machinery, mining machinery, etc.





Details data of air spring GUOMAT 1B5530​:



FS 330-11 CI Contitech Convoluted Air Spring Shocks / Single Convolution Air Actuator 0

Details picture 1 of GUOMAT air spring 1B5330:

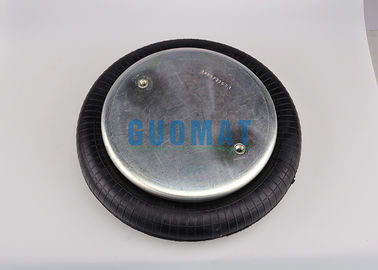

FS 330-11 CI Contitech Convoluted Air Spring Shocks / Single Convolution Air Actuator 1





Details picture 2 of GUOMAT air spring 1B5330:​

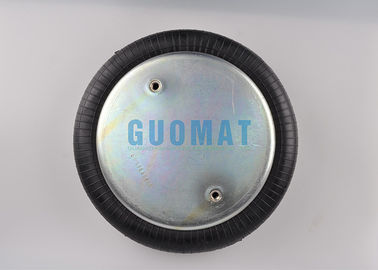

FS 330-11 CI Contitech Convoluted Air Spring Shocks / Single Convolution Air Actuator 2





Details picture 3 of GUOMAT air spring 1B5330:​

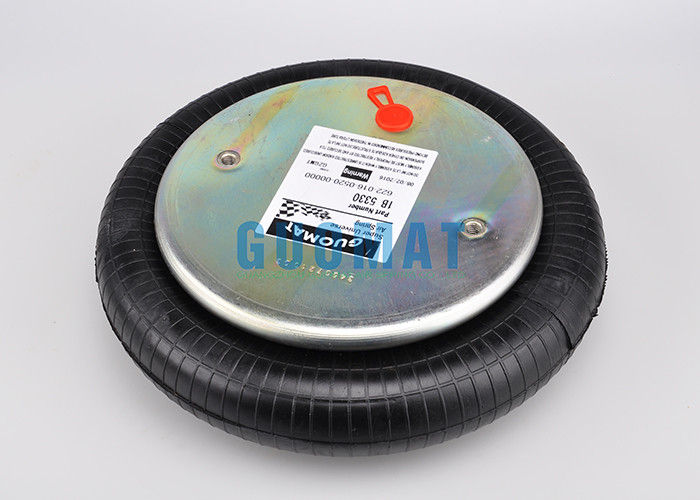

FS 330-11 CI Contitech Convoluted Air Spring Shocks / Single Convolution Air Actuator 3
