| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B7731 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber And Stainless Steel | Goodyear 1: | 1B6-530 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 1.7 Kg |
| Other Name: | Air Suspension Bags | Pressure Ability: | 0.2-0.8 M Pa |
| Goodyear 2: | 1B6-050 | Firestone Style Number: | 131B |
| High Light: | convoluted air spring,air helper springs |
||

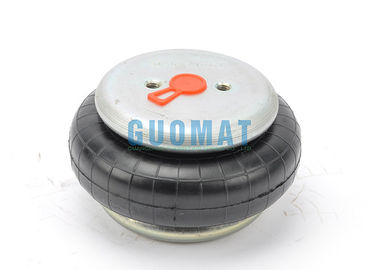

1B6-530 Goodyear Cross Reference Firestone W013587731 Single Convoluted Air Spring 3/8-16 Blind Nuts
OEM Original Equipment Manufacturer:
GUOMAT NO.:1B7731
Goodyear NO.:1B6-530
Firestone NO.: W01-358-7731
Technical Parameters of GUOMAT NO.1B7731
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 PiecesX3/8-16UNC
Screw Center Distance of Top Cover Plate :44.5mm
Bottom Cover Plate Screw (Nut) Tooth : 2 PiecesX3/8-16UNC
Screw Center Distance of Bottom Cover Plate :44.5mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPTF
❸ Cover Plate
Top Cover Plate Diameter (Width): 115 mm
Bottom Cover Plate Diameter (Width): 115 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter : Φ165mm
Working Stroke:MIN 50To MAX120MM
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :NO One Piece of Girdle Hoop
GUOMAT NO.1B7731 Other details information:
| GUOMAT NO. | 1B7731 | GUOMAT BELLOWS NO. | 1B131 |
| 131B Style Air Spring, Type 1 Bead Plate | 3/8-16 Blind Nuts On 1.75" Centers, 1/4" NPT Centered Port | Short Description | W01-358-7731, W013587731, WO1-358-7731, WO13587731 |
| WO1-358-7731, 131B 2BN1/4CTR 2BN. | Manufacturer Part Number | W013587731 | |
| Maximum Diameter @ 100 PSIG (mm) | 165 | Manufacturer | Firestone Industrial |
| Maximum Height (mm) | 120 | Style Number | 131B |
| Maximum Stroke (mm) | 70 | Style Shape | Single Convolution |
| Minimum Usable Height (mm) | 50 | Competitor Cross Reference # | Goodyear Part # 1B6-050 ‚ 1B6-051 ‚ 1B6-052 ‚ 1B6-053 ‚ 1B6-530 ‚ 1B6-531 ‚ 1B6-532 |
| 1 Inch (pounds) | 1350 | 40 psig (pounds) | 550 |
| Maximum Stroke (pounds) | 850 | 60 psig (pounds) | 850 |
| Material | 2-Ply Standard Cord | 80 psig (pounds) | 1170 |
| Bead plate Type | 1 | Natural Frequency (@80 psig) (cpm) | 181 |
| Blind Nut Centers (mm) | 44.5 | 400 CPM % | 74.4 |
| Design Height (mm) | 89 | 800 CPM % | 94.6 |
| 1500 CPM % | 98.5 |
Reduce the noise of the ultimate artifact - air spring:
First of all, from the point of view of the air spring material, the damping area of the air spring is the middle of the rubber airbag portion, the conductivity for vibration is very low, and the frequency from the top cover to the lower end can be reduced to 1 Hz, which can be recognized by the human ear. The minimum increase is about 20HZ, and the effect of air spring damping is not only significant, but also a very large space from the critical value. And the elastic coefficient of the air spring (ie, soft spring and hard spring) can be adjusted by the internal pressure of the pump. Reasonable selection of the air spring can effectively avoid the impact of the impact effect during the use of the air spring.
