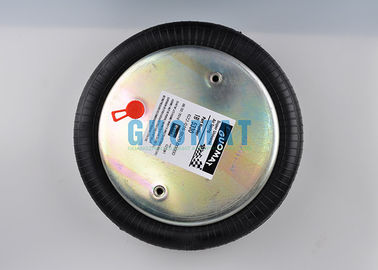

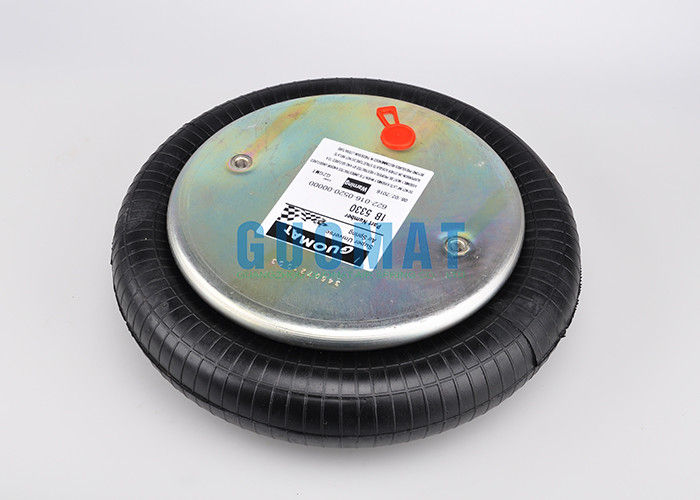

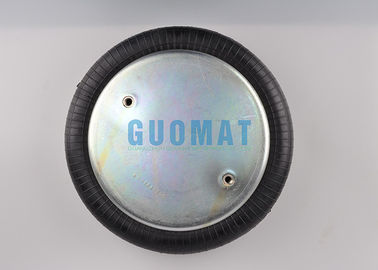

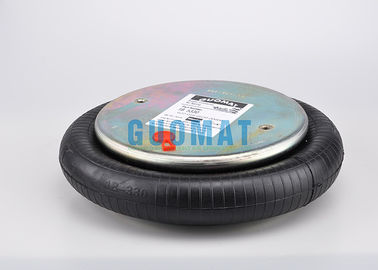

1B12-301 Industrial Air Spring Shock Iron Single Convoluted 19 GUOMAT

1B12-301 Industrial Air Spring Shock Iron Single Convoluted 19 GUOMAT

  • 1B12-301 Industrial Air Spring Shock Iron Single Convoluted 19 GUOMAT
  • 1B12-301 Industrial Air Spring Shock Iron Single Convoluted 19 GUOMAT
  • 1B12-301 Industrial Air Spring Shock Iron Single Convoluted 19 GUOMAT
  • 1B12-301 Industrial Air Spring Shock Iron Single Convoluted 19 GUOMAT
1B12-301 Industrial Air Spring Shock Iron Single Convoluted 19 GUOMAT
Product Details:
Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 1B12-301
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber Steel OEM: W01-358-7009
Warranty: 1 Year Weight: 5.0 Kg
Other Names: Air Actuation Air Vibration Pressure Ability: 0.2-0.8 M Pa
Goodyear: 1B12-301 Air Inlet: 1/4 N P.T.F.
Goodyear Bellows Number: 578-91-3-301
High Light:

convoluted air spring

,

air helper springs

1B12-301 Rubber and Iron Single Convoluted 19 Industrial Air Spring Shock





1B12-301 Specifications and Technical Data



Compressed height: 2.12 inches / 53.8mm
Top cover diameter: 9.00 inches / 231 mm
Bottom piston number: 3212 or 3183
Bottom cover diameter: 9.00 inches / 231 mm
Screw center distance: 157.5 mm
The distance between the nuts is 73 mm
Top cover screw (nut) teeth: 2pcsX 3 / 8-16UNC
Bottom cover screw (nut) teeth: 2pcsX 3 / 8-16UNC
Rubber bellows MAX diameter (maximum diameter): 12.9 inches / 325 mm
Rubber bellows natural diameter 300 mm
Working stroke: up to 160 mm to MIN 55 mm
Compressed height: 2.12 inches / 105 mm
Air vent / air inlet: 1/4 N P.T.F.



Top plate hole/stud: 3 pcs

Base plate hole/stud: 2 pcs

Top plate diameter: 9 inch

Base plate diameter: 9 inch

Folding height: 2.6 inch





OEM Original Equipment Manufacturer:





goodyear 1B12-301/313
firestone W01-358-7009
contitech FS330-11 474
triangle 6374/4474



Firestone Bellows Number: 19
Goodyear part number: 1B12-301 / 1B12-313
Goodyear Bellows Number: 578-91-3-301 / 578 91 3 301/578913301
Triangle part number: 4474
Triangle bellows number: 6374
Holland (Neway) Number:905-57-002

Flexible member: 578-91-3-301;578 91 3 301;578913301

Goodyear trim: 1B12301;1B12-301

Triangular spring: 4468

Firestone: 7009; W01-358-7009;W013587009

Kangdi Technology: 64595

Neway: 90557002

batco: 10-97009

Dallas Spring: AS7009

Midland / Haldex: CS112301

Euclid / Meritor aftermarket: E-FS7009

Kangdi Technology: FS330-11468

Euclid / Meritor aftermarket: FS7009





The usal kinds of Single Convolution Air Actuator



Single Convolution Air Actuator
All Measurements Are In Mm
GUOMAT NO. Contitech NO. Min. Design height Installation Space Required Max. Stroke
1B4060 FS 40-6 50 160 60
1B5050 FS 50-5 51 165 44
1B7070 FS 70-7 51 180 64
1B10010 FS 100-10 51 225 94
1B1209 FS 120-9 50 230 85
1B1210 FS 120-10 51 245 99
1B12012 FS 120-12 51 250 119
1B20010 FS 200-10 51 265 89
1B33011 FS 330-11 51 340 99
1B33014 FS 330-14 51 360 129
1B53011 FS 530-11 51 400 124
1B53014 FS 530-14 51 420 134
1B96012 FS 960-12 63 480 117
1B133011 FS 1330-11 63 570 107





Shipping and packing

Shipment:
1. Normally, we will deliver the parts within 2-8 work days after payment is received.
2. We always deliver the air spring by DHL, UPS,FEDEX and TNT.They are all can very quickly to deliver the package to you. If the package is large and heavy, we may send it by sea.

We will arrange it for you if you have no preference on the express carrier

Packing:
Shipping by Air: packed with strong carton box;

Shipping by Sea: wrapped with water-proof material,pallet and wooden case will be used if necessary.



Air Spring Use on Industrial Applications

Air Spring offer solutions for vibration-oriented mounting of many kinds of machines. From the technical design all the way through to the harmonization of individual system components. Air spring can be applied to a lot of equipment that can effectively reduce the influence of vibration to the equipment .Currently, more and more industrial equipment use air spring. GUOMAT air springs make very low natural frequencies possible, from 0.5 to 3.5 Hz depending on the type. With loads ranging from 0.5 k N to more than 440 k N, air isolators provide effective mounts for sensitive measuring instruments as well as heavy foundations.





Industrial Equipments Such As



Papermaking equipment, large washing machine, water treatment equipment, fitness equipment, punch press, leather draw machine, automobile testing station, medical machinery, mining machinery, etc.





1B12-301 Industrial Air Spring Shock Iron Single Convoluted 19 GUOMAT 01B12-301 Industrial Air Spring Shock Iron Single Convoluted 19 GUOMAT 11B12-301 Industrial Air Spring Shock Iron Single Convoluted 19 GUOMAT 2
