| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B7451 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Steel | GUOMAT: | 1B7451 |
|---|---|---|---|
| Warranty: | 1 Year | Weight: | 1.5.0 Kg |
| Other Names: | Air Spring Bags Rubber Cushion | Pressure Ability: | 0.2-0.8 M Pa |
| Bellow No.: | 1B 7-540 | Air Inlet: | 1/4NPTF |
| High Light: | convoluted air spring,air helper springs |
||

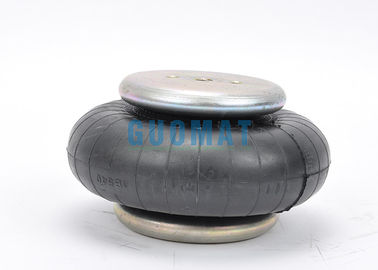

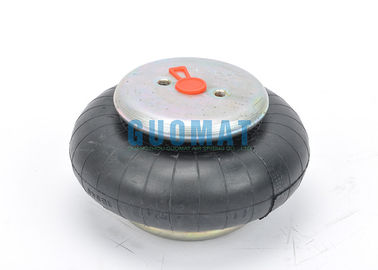

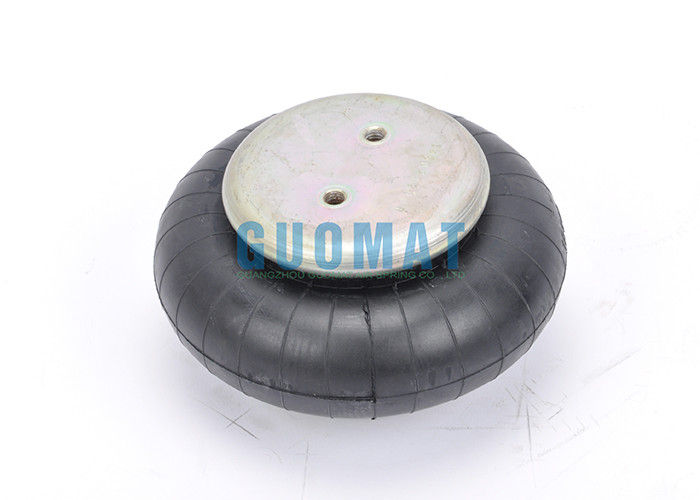

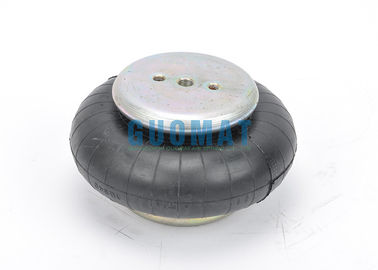

1B7-540 Goodyear Cross Reference Firestone W013587451 Rubber Bellows DIA. Max. 205
GUOMAT Part Number:1B7451 Specifications and Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 44.45 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 44.45 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPTF
Screw Center Distance Between Gas Hole and Nut : 22.25 mm
❸ Cover Plate
Top Cover Plate Diameter: 115 mm
Bottom Cover Plate Diameter: 115 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 205 mm
Rubber Bellows Natural Diameter : 180 mm
The Working Stroke : MIN 50 mm to MAX 140 mm
Maximum Height : 140 mm
Minimum Height :50mm
Stroke Height : 90mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :no One Pieces of Girdle Hoop
| aximum Diameter @ 100 PSIG (mm) | 210.82 | Other Cross Reference |
W01-358-7451, W013587451, WO1-358-7451, WO13587451 Goodyear Part # 1B7-100 Goodyear-Firestone Cross Reference‚ 1B7-101 Goodyear-Firestone Cross Reference‚ 1B7-102 Goodyear-Firestone Cross Reference‚ 1B7-103 Goodyear-Firestone Cross Reference‚ 1B7-540 Goodyear-Firestone Cross Reference‚ 1B7-541 Goodyear-Firestone Cross Reference‚ 1B7-542 Goodyear-Firestone Cross Reference |
| Maximum Height (mm) | 140 | Manufacturer Part Number | W013587451 |
| Maximum Stroke (mm) | 76.2 | Manufacturer | Firestone Industrial |
| Minimum Usable Height (mm) | 50 | Style Number | 110B |
| 1 Inch (pounds) | 2090 | Style Shape | Single Convolution |
| 3 Inch (pounds) | 1030 | Natural Frequency (@80 psig) (cpm) | 162 |
| Bead plate Type | 1 | 400 CPM % | 80.2 |
| Blind Nut Centers (mm) | 44.45 | 800 CPM % | 95.7 |
| Design Height | 4.5 | 1500 CPM % | 98.8 |
| 40 psig (pounds) | 650 | Maximum Stroke (pounds) | 940 |
| 60 psig (pounds) | 1010 | Material | 2-Ply Standard Cord |
| 80 psig (pounds) | 1390 |
