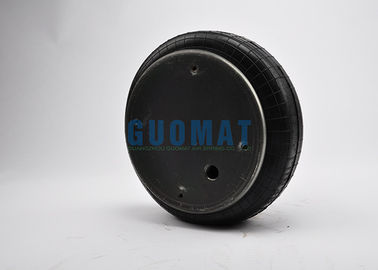

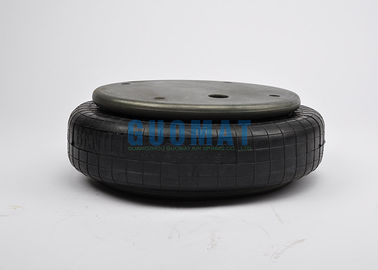

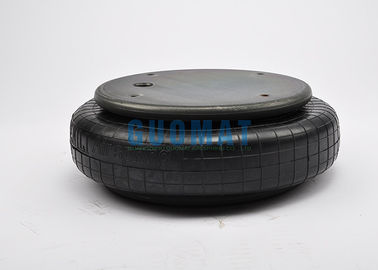

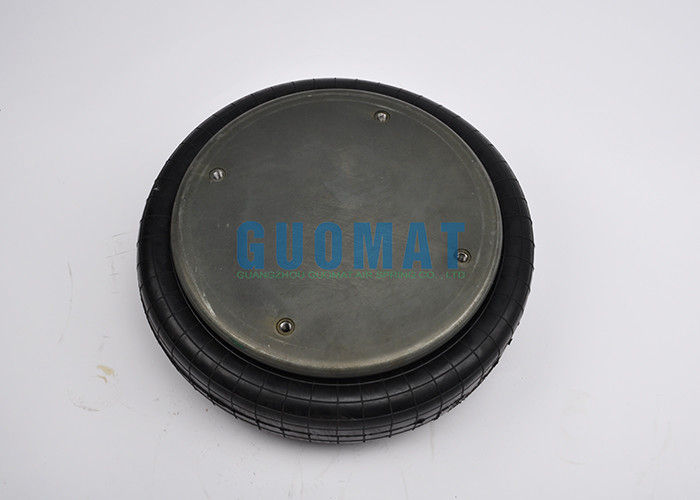

FS 530-14 Contitech Industrial Air Spring GUOMAT NO.1B53014 3/4 NPT Air Inlet

China FS 530-14 Contitech Industrial Air Spring GUOMAT NO.1B53014 3/4 NPT Air Inlet supplier
FS 530-14 Contitech Industrial Air Spring GUOMAT NO.1B53014 3/4 NPT Air Inlet supplier FS 530-14 Contitech Industrial Air Spring GUOMAT NO.1B53014 3/4 NPT Air Inlet supplier FS 530-14 Contitech Industrial Air Spring GUOMAT NO.1B53014 3/4 NPT Air Inlet supplier FS 530-14 Contitech Industrial Air Spring GUOMAT NO.1B53014 3/4 NPT Air Inlet supplier

Large Image :  FS 530-14 Contitech Industrial Air Spring GUOMAT NO.1B53014 3/4 NPT Air Inlet

Product Details:

Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 1B53014 3/4

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber Steel Contitech: FS 530-14
Warranty: One Year Weight: 7.0 Kg
Other Names: Air Vibration Actuation Pressure Ability: 0.2-0.8 M Pa
Rubber Bellows: 1B383 Air Inlet: 1/4 N P.T.F.

FS 530-14 Contitech Industrial Air Spring GUOMAT NO. 1B53014 3/4 NPT Air Inlet





GUOMAT 1B53014 Specifications and Technical Data



Operating Temperature: 57Cº to -54Cº

GUOMAT NO.:1B53014 3/4

Cross NO.:FS 530-14



Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth :4pcsX 3/8-16UNC

Screw Center Distance of Top Cover Plate :158.8 mm

Bottom Cover Plate Screw (Nut) Tooth : 4pcsX 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 158.8 mm

Distance Gas Hole Between Nut 79.4 mm



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 3/4 N P.T.F.



Cover Plate

Top Cover Plate Diameter (Width): 289mm

Bottom Cover Plate Diameter (Width): 289 mm



Rubber Bellows

Rubber Bellows Natural Diameter 380 mm

Rubber Bellows Max Diameter : 406 mm

Rubber Bellows Natural Height : 120 mm

The Working Stroke : MAX 160 mm to MIN 81 mm



Bumper block / Buffer block

Without Bumper Block



Girdle Hoop / Girdle Ring

With Girdle Hoop :Without Girdle Hoop



Vibration isolation - dynamic characteristic value
Design height H: 5.91 inches recommended, minimum 4.72 inches

Pressure p [psi] 40 60 80 100 120 Vol. V [in.3]
Force (Load) [lbf] 3840 5800 7820 9830 11800 685
Spring rate [lbf/in.] 1980 2590 3280 4060 4630
Natural frequency [Hz] 2.2 2.1 2.1 2.0 2.0





Pneumatic Applications - Static Characteristics

Force F [lbf]

Pressure p [psi] 40 60 80 100 120 Vol. V [in.3]
Height H [in.] 6.5 3340 5060 6840 8660 10500 740
6.0 3760 5690 7650 9660 11600 690
5.5 4140 6250 8380 10600 12700 650
5.0 4450 6680 8960 11300 13500 610
4.5 4720 7070 9460 11900 14300 560
4.0 4940 7380 9870 12400 14900 510
3.5 5120 7610 10200 12800 15300 450
3.0 5260 7810 10500 13100 15700 380
2.5 5350 7970 10700 13400 16000 300





The usal kinds of Single Convolution Air Actuator



Single Convolution Air Actuator
All Measurements Are In Mm
GUOMAT NO. Contitech NO. Min. Design height Installation Space Required Max. Stroke

1B53014 3/4 FS 530-14 51 420 134





Description​ OF GUOMAT 1B53014 3/4:

The traditional method of fluidized bed damping mainly rubber pad, requiring a higher steel spring. However, both of these shock absorption methods fail to meet the needs of the end user. However, the introduction of "air spring isolation system" from abroad has enabled isolation rather than shock absorption. With its unique energy conversion Way, the vibration of the mechanical energy into internal energy, making 95 percent of the vibration are isolated, to achieve the true isolation effect.

Different types of fluidized bed, according to the overall weight of the fluidized bed to choose the appropriate bearing capacity of the air spring, and fluidized bed according to the length and width and height of the design of a specific installation, and air spring convenient installation, but also makes isolation System installation is much easier than installing a steel spring.
Airbag isolation, there are two control methods. One is a group (usually 4 or 6) airbag single one-way valve packing, like a car tire.




Pictures show the information includes:



Technical data

Vibration isolation - dynamic characteristic values

Pneumatic application - static characteristic values



FS 530-14 Contitech Industrial Air Spring GUOMAT NO.1B53014 3/4 NPT Air Inlet
