W01-358-6900 Double Convoluted Air Spring With 3/4 NPT Air Inlet Rubber Bellows W013580138

W01-358-6900 Double Convoluted Air Spring With 3/4 NPT Air Inlet Rubber Bellows W013580138

    • W01-358-6900 Double Convoluted Air Spring With 3/4 NPT Air Inlet Rubber Bellows W013580138
    • W01-358-6900 Double Convoluted Air Spring With 3/4 NPT Air Inlet Rubber Bellows W013580138
    • W01-358-6900 Double Convoluted Air Spring With 3/4 NPT Air Inlet Rubber Bellows W013580138
    • W01-358-6900 Double Convoluted Air Spring With 3/4 NPT Air Inlet Rubber Bellows W013580138
    • W01-358-6900 Double Convoluted Air Spring With 3/4 NPT Air Inlet Rubber Bellows W013580138
  • W01-358-6900 Double Convoluted Air Spring With 3/4 NPT Air Inlet Rubber Bellows W013580138

    Product Details:

    Place of Origin: China
    Brand Name: GUOMAT
    Certification: ISO/TS16949:2009
    Model Number: 2B6900

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: strong carton box or as customers need
    Delivery Time: 2-8 work days
    Payment Terms: T/T, Western Union,Paypal or Others
    Supply Ability: 1000pcs/week
    Contact Now
    Detailed Product Description
    Material: Steel And Rubber Firestone: W01-358-6900
    Warranty: 12 Months Weight: 3.5 Kg
    Other Name: Air Actuators Spring Pressure Ability: 0.2-0.8 M Pa
    Package Size: 24*24*24 Cm Brand: Neutral
    Gas Hole / Air Inlet: 3/4 NPTF
    High Light:

    convoluted air spring

    ,

    air helper springs

    W01-358-6900 Double Convoluted Air Spring With 3/4 NPT Air Inlet Rubber Bellows W013580138



    Specifications and Technical Data of W01-358-6900

    Firestone part number: W01-358-6900 / W013586900 / W01 358 6900
    Compressed height: 3.12
    Number of top plates: 3079
    Top cover diameter: 6.31 inches / 160 mm
    Number of bottom pistons: 3090
    Bottom cover diameter: 6.31 inches / 160 mm
    Screw center distance: 89 mm
    The distance between the nuts is 44.5 mm
    Top cover screw (nut) teeth: 2pcsX 3 / 8-16UNC
    Bottom cover screw (nut) teeth: 2pcsX 3 / 8-16UNC
    Rubber bellows MAX diameter: 251 mm
    Rubber bellows natural diameter 224 mm
    Working stroke: up to 260 mm to MIN 75 mm
    Air vent / air inlet: 3/4 NPTF
    Firestone Corrugated Tube Number: 20
    Goodyear part number: 2B9-200 / 2B9200 / 2B9 200
    Goodyear Bellows Number: 578-92-3-202 / 578923202/578 92 3 202
    Number of grids: 1371
    Hendrickson Trailer No.: S-8768
    Hendrickson Truck Number: 45843-3
    Ridewell number: 1003586910C
    Triangle part number: 4320
    Triangle bellows number: 6325
    Watson&Chalin#:AS-0001

    Description Assembly Order No.
    Blind nuts, 1/4 NPT W01-358-6910
    Blind nuts, 1/4 NPT, bumper W01-358-6911
    Blind nuts, 3/4 NPT W01-358-6900
    Blind nuts, 3/4 NPT, bumper W01-358-6901
    Countersunk steel bead rings,
    13/4 bolts, nuts, washers W01-358-6923
    Rubber bellows only W01-358-0138


    OEM Original Equipment Manufacturer:


    BELLOW Numbers COMPLETE Numbers

    CONTITECH FD 20019 S / 895 N Firestone : W01-358-6900
    FIRESTONE FLEX 20 Contitech : FD 200-19 320
    FIRESTONE W01-358-0138 Goodyear : 2B9-200/202/216
    095-0009 Hendrickson : S8768/458433
    GOODYEAR 2B 9-200 : 578423202
    578923202 Triangle: 6325/4320
    PHOENIX 2B 12R Dayton : 3546910
    PIRELLI T20 86600 Leland : Sc2011
    AIRKRAFT 114001 Navistar : 554783C1
      Dina : A812719/AZ812719
      SAF Holland : 57006910
      Trailers De : 133128
      Brake & Wheel : M3501
      Ridewell : 1003586910C
      Tuthill : 1371
      Watson&Chalin : AS-0001/AS-0156G





    The composition of convoluted air springs

    Upper Steel Plate: upper cover plate is bearing pressure and seal air inside
    Waist ring: Stable part skins to prevent deformation
    The connotation of screw hole: fixed as the installation of air spring in car or equipment
    Gas-Filled hole / Air Inlet: By filling air porosity for inflatable air spring
    Flexible bellows: The main part, can lock the air and flexible activities up and down
    Rubber Bumper (Optional): Prevent the air spring up and down on the plate and base plate collision, You can choose to have also can not
    The connotation of screw hole: fixed as the installation of air spring in car or equipment
    Lower steel Plate: Lower steel Plate is bearing pressure and seal air inside



    How to Calculation For Pneumatics, Such as

    • Mass To Be Lifted 2000 M (Kg)
    • Desired Stroke 190 S Min (Mm)
    • Number Of Air Springs 4 N
    • Minimum Installation Height 190 H Min (Mm)
    • Minimum Installation Diameter 500 D (Mm)
    • Air Pressure 6 P (Bar)





    Technical Data of W01-358-6900:



    size 250 mm Working medium Compressed air as per ISO 8573-1:2010 [-:-:4]
    Installation required Ø 265 mm Information about operation and test media Operation with oil lubrication not possible
    Stroke 185 mm Corrosion resistance grade (CRC) 2-Moderate corrosion stress
    Highest height, advanced 275 mm Ambient temperature -40 °C ... 70 °C
    Maximum tilt angle 25 deg Reset force 200 N
    Highest offset 20 mm product weight 3000 g
    Minimum installation height 75 mm Type of installation With internal thread
    Type code 2B Pneumatic connection G3/4
    Operation mode Single-acting Material Description

    RoHS-compliant

    Free of copper and PTFE

    symbol 991205 Bellows material NR/BR
    Operating pressure 0 bar ;1 bar;2 bar;3 bar;4 bar;5 bar;6 bar;7 bar;8 bar Building materials

    Galvanized

    Steel





    Detail photos 1 of  W01-358-6900:

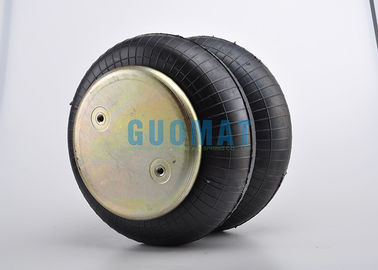

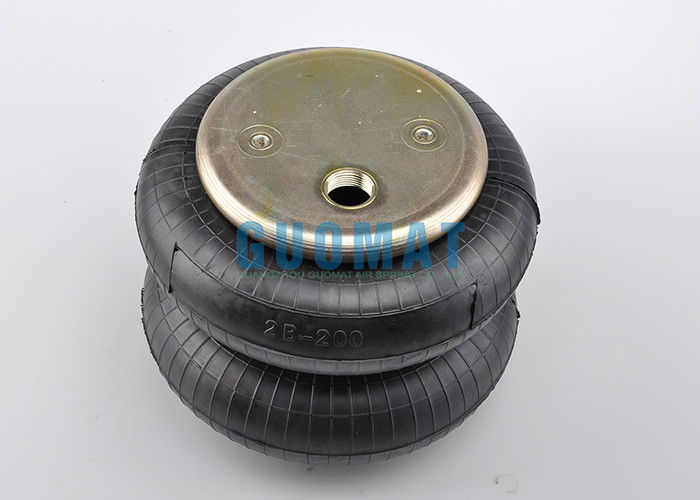

    W01-358-6900 Double Convoluted Air Spring With 3/4 NPT Air Inlet Rubber Bellows W013580138 0

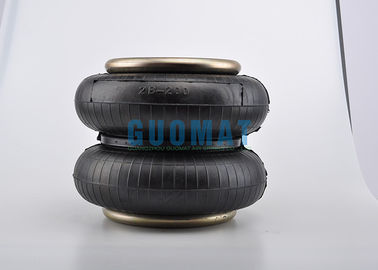

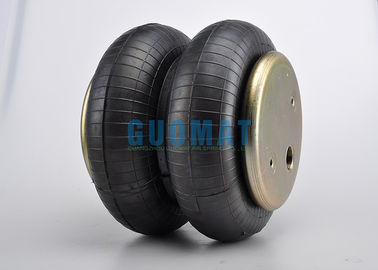

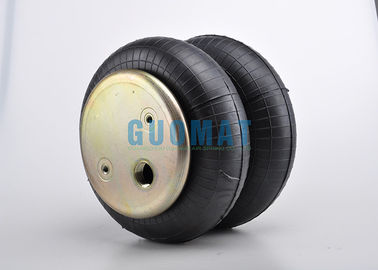

    W01-358-6900 Double Convoluted Air Spring With 3/4 NPT Air Inlet Rubber Bellows W013580138 1W01-358-6900 Double Convoluted Air Spring With 3/4 NPT Air Inlet Rubber Bellows W013580138 2
