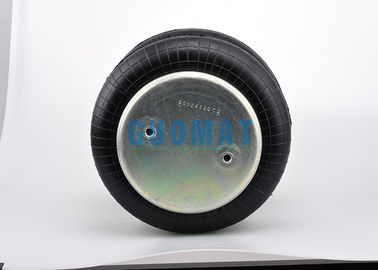

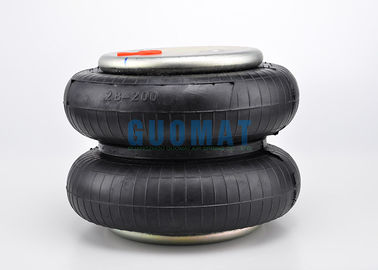

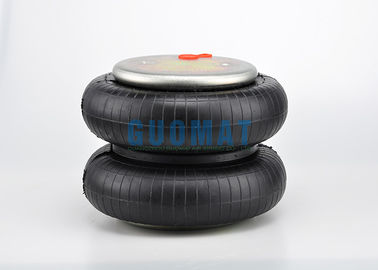

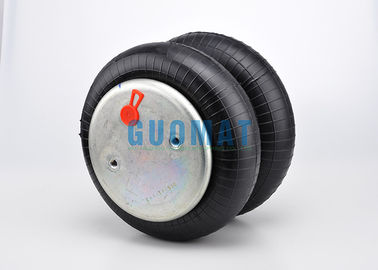

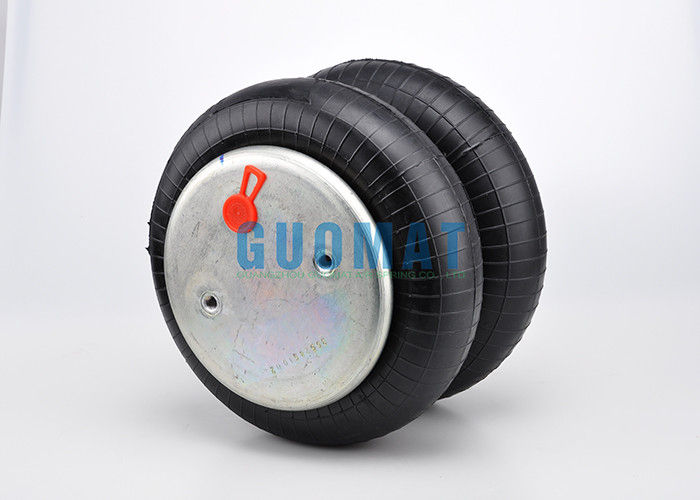

TS16949 Industrial Air Spring FD 200-19 499 64515 ContiTech Firestone W01-358-6856

TS16949 Industrial Air Spring FD 200-19 499 64515 ContiTech Firestone W01-358-6856

    • TS16949 Industrial Air Spring FD 200-19 499 64515 ContiTech Firestone W01-358-6856
    • TS16949 Industrial Air Spring FD 200-19 499 64515 ContiTech Firestone W01-358-6856
    • TS16949 Industrial Air Spring FD 200-19 499 64515 ContiTech Firestone W01-358-6856
    • TS16949 Industrial Air Spring FD 200-19 499 64515 ContiTech Firestone W01-358-6856
  • TS16949 Industrial Air Spring FD 200-19 499 64515 ContiTech Firestone W01-358-6856

    Product Details:

    Place of Origin: Guangdong,China
    Brand Name: GUOMAT
    Certification: ISO/TS16949:2009
    Model Number: 2B6856

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: strong carton box or as customers need
    Delivery Time: 2-8 work days
    Payment Terms: T/T, Western Union,Paypal or Others
    Supply Ability: 1000pcs/week
    Contact Now
    Detailed Product Description
    Material: Steel Cover Plate , Rubber Bellows ContiTech: FD 200-19 499 64515
    Gas Hole: 1/4NPTF Screw Tooth: 3/8-16UNC
    Screw Center Distance: 89 Mm Cover Plate Diameter: 160 Mm
    Pressure Ability: 0.2-0.8 M Pa Stroke: 75~260 Mm
    Net Weight: 3.5 Kg Package Size: 24*24*24 CM
    High Light:

    convoluted air spring

    ,

    air helper springs

    FD 200-19 499 64515 ContiTech Firestone No. W01-358-6856 OE Manufacturer Granning 4848​





    GUOMAT 2B6856 Technical parameters



    Nut / Blind Nut



    Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Top Cover Plate : 89 mm

    Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Bottom Cover Plate : 89 mm



    Gas Hole / Air inlet / Air Fitting



    Gas Hole / Air inlet : 1/4-18NPTF

    Screw Center Distance Between Gas Hole and Nut : 44.5 mm





    Cover Plate



    Top Cover Plate Diameter: 160 mm

    Bottom Cover Plate Diameter: 160 mm



    Rubber Bellows



    Rubber Bellows MAX Diameter: 251 mm

    Rubber Bellows Natural Diameter : 224 mm

    The Working Stroke : MIN 75 mm to MAX 260 mm

    Maximum Height : 274 mm

    Minimum Height :95mm

    Stroke Height : 179mm



    Bumper block / Buffer block



    With Bumper Block



    Girdle Hoop / Girdle Ring



    With Girdle Hoop :One Pieces of Girdle Hoop





    2B6856 Cross others OEM



    GUOMAT NO.2B6856

    FD 200-19 499 / FD200-19 499 / FD20019 499

    Firestone Style 20

    Firestone No. W01-358-6935 / W01 358 6935 / W013586935

    Firestone No. W01-358-6856 / W013586856 / W01 358 6856

    FleetPride AS6935

    Goodyear 2B9-201 / 2B9201 / 2B9 201

    Goodyear Flex No. 578923202

    Taurus 6325

    Triangle AS-4499

    TRP AS69350

    Automann SP2B12R-6935





    OE Manufacturer/Reference No.



    Manufacturer Original-part no. Model

    R&S Truck 1027505

    Granning 4848

    Loadguard SC2010

    Navistar/Fleetrite 554784C1

    Hendrickson S-14318

    Hendrickson 3318

    Sauer P50-733A

    Suspensions, Inc. 200042

    Granning 702932-01

    Arvin Meritor 201548

    Navistar/Fleetrite 2B9-491

    Freightliner 16-14318-000

    Taurus AS218-6902

    Ridewell S1728C



    Air spring supplier brand name: ContiTech

    Reference: 161298

    Competitor/supplier ID: FD20019499



    Air spring supplier brand name: Goodyear

    Competitor/supplier number: 2B9201



    Air spring supplier brand name: Triangle

    Reference: 6325

    Competitor/supplier ID: 4310



    Air spring supplier brand name: Triangle

    Competitor/supplier number: 4499



    Suspended supplier: Arvin Meritor

    Competitor/supplier ID: 201548



    Suspension supplier name: Hendrickson

    FSIP OEM: W014556881



    Suspension supplier name: Hendrickson

    Suspension Number: HLM1&2 LIFT

    FSIP OEM: W014556935



    Suspension supplier name: Hendrickson Aid

    Competitor/supplier ID: 3318



    Suspension supplier name: Hendrickson Trailer

    Competitor/supplier number: S14318



    Firestone Trim: w013586935





    Other kinds of FD 200-19 that GUOMAT have:




    GUOMAT NO. Reference Order NO. Force (lbs) Max OD (in) Design height(in) Height Narural frequ.[cpm]
    80 psi 100 psi Min MAX
    FD 200 19 310 FD 200-19 310 161292 2080 2600 9.9 8.5 3.75 10.8 115
    FD 200 19 315 FD 200-19 315 161293 2080 2600 9.9 8.5 3.75 10.8 115
    FD 200 19 320 FD 200-19 320 161008 2080 2600 9.9 8.5 3 10.8 115
    FD 200 19 362 FD 200-19 362 161294 2080 2600 9.9 8.5 3 10.8 115
    FD 200 19 448 FD 200-19 448 161295 2080 2600 9.9 8.5 3.75 10.8 115
    FD 200 19 450 FD 200-19 450 161296 2080 2600 9.9 8.5 3.75 10.8 115
    FD 200 19 452 FD 200-19 452 161297 2080 2600 9.9 8.5 3.75 10.8 115
    FD 200 19 499 FD 200-19 499 161298 2080 2600 9.9 8.5 3.75 10.8 115
    FD 200 19 504 FD 200-19 504 161299 2080 2600 9.9 8.5 3.75 10.8 115
    FD 200 19 505 FD 200-19 505 161300 2080 2600 9.9 8.5 3 10.8 115
    FD 200 19 506 FD 200-19 506 161301 2080 2600 9.9 8.5 3 10.8 115
    FD 200 19 510 FD 200-19 510 161302 2080 2600 9.9 8.5 3.75 10.8 115
    FD 200 19 524 FD 200-19 524 161385 2080 2600 9.9 8.5 3 10.8 115
    FD 200 19 539 FD 200-19 539 161303 2080 2600 9.9 8.5 3 10.8 115
    FD 200 19 600 FD 200-19 600 161017 2080 2600 9.9 8.5 3 10.8 115



    TS16949 Industrial Air Spring FD 200-19 499 64515 ContiTech Firestone W01-358-6856 0TS16949 Industrial Air Spring FD 200-19 499 64515 ContiTech Firestone W01-358-6856 1
