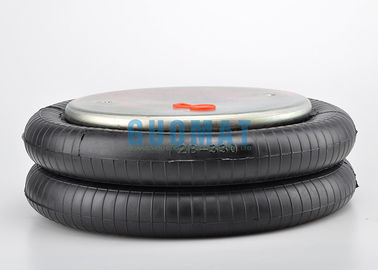

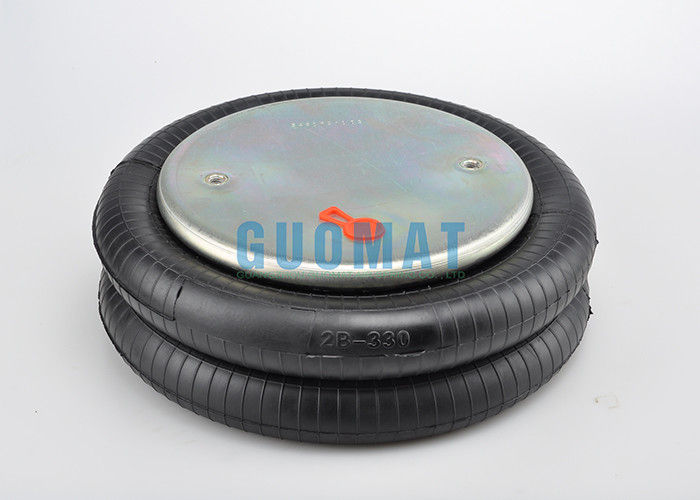

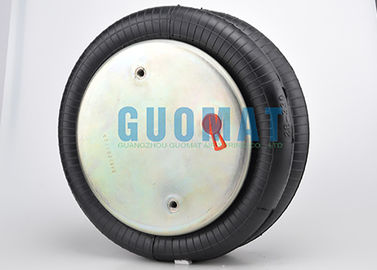

FD330-22 CI Industrial Air Spring / Convolution Air Actuator Rerfer PHOENIX 2B 22R

FD330-22 CI Industrial Air Spring / Convolution Air Actuator Rerfer PHOENIX 2B 22R

    • FD330-22 CI Industrial Air Spring / Convolution Air Actuator Rerfer PHOENIX 2B 22R
    • FD330-22 CI Industrial Air Spring / Convolution Air Actuator Rerfer PHOENIX 2B 22R
    • FD330-22 CI Industrial Air Spring / Convolution Air Actuator Rerfer PHOENIX 2B 22R
  • FD330-22 CI Industrial Air Spring / Convolution Air Actuator Rerfer PHOENIX 2B 22R

    Product Details:

    Place of Origin: China
    Brand Name: GUOMAT
    Certification: ISO/TS16949:2009
    Model Number: 2B5330

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: strong carton box or as customers need
    Delivery Time: 2-8 work days
    Payment Terms: T/T, Western Union,Paypal or Others
    Supply Ability: 1000pcs/week
    Contact Now
    Detailed Product Description
    Material: Steel And Rubber CONTITECH: FD330-22
    Warranty: 12 Months Weight: 6.0kg
    Other Name: Air Suspension Air Actuator Pressure Ability: 0.2-0.8 M Pa
    Screw (Nut) Tooth: 2pcsX3/8-16UNC Gas Hole: 1/4NPTF
    High Light:

    air helper springs

    ,

    air suspension parts

    FD330-22 CI Industrial Air Spring Convolution Air Actuator Rerfer PHOENIX 2B 22R





    GUOMAT 2B5330 Technical parameters



    Nut / Blind Nut



    Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Top Cover Plate : 157 mm

    Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Bottom Cover Plate : 157 mm



    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : 1/4-18NPTF

    Screw Center Distance Between Gas Hole and Nut : 73 mm



    Cover Plate

    Top Cover Plate Diameter: 231mm

    Bottom Cover Plate Diameter: 231mm



    Rubber Bellows

    Rubber Bellows MAX Diameter: 325 mm

    Rubber Bellows Natural Diameter : 300 mm

    The Working Stroke : MIN 81 mm to MAX 305 mm

    Maximum Height : 305mm

    Minimum Height :81mm

    Stroke Height : 224 mm



    Bumper block / Buffer block

    Without Bumper Block



    Girdle Hoop / Girdle Ring

    With Girdle Hoop :One Pieces of Girdle Hoop



    FD 330-22 CI 1/4 NPT  ,

    bellows type industrial air spring, double helix,

    330cm sq effective area,

    22cm maximum stroke,

    crimping plate,

    internal thread,

    1/4 NPT, offset





    OEM Original Equipment Manufacturer:



    578-92-3-309, ASA-92-8-002, ASA-92-6-002,
    Firestone 22,
    Firestone 3215,
    Firestone 3212.
    Same As Automann ABSP2B22R-7180,
    Goodyear 2B12-425,
    Firestone W01-358-7180,
    Peerless 0550-00001,
    Peerless 0660-00001,
    Peerless 550-1, 055000001,
    Batco 10-97180,
    Ridewell 1003587180C,
    S4538C,
    Navistar 168179C1,
    Navistar 1685179C1,
    Goodyear 2B12-311,
    Triangle 4363,
    Contitech 64493,
    Contitech FD330-22363,
    Firestone 7180,
    EZ Ride 8030190,
    UCF Impex AB-2B12-425,
    Dallas AS7180,
    Haldex CS212425,
    Euclid E-FS7180,
    Euclid FS7180,
    Contitech FD330-22363,
    Ridewell S4538C,
    Loadguard SC2075,
    Neway 57007180,
    Taurus AS2147180.





    Type

    Conti Order No.

    Rubber bellows only

    65196

    with crimped plates, 1/4 NPT air inlet

    A = 2.87 in. excentrical

    74186

    with crimped plates, 3/4 NPT air inlet

    A = 2.87 in. excentrical

    63561







    Vibration isolation – dynamic characteristic values

    Design height H: recommended 9.45 inch, minimum 8.66 inch

    Pressure p [psi] 40 60 80 100 120 Vol. V [in.3]
    Force (Load) [lbf] 2070 3090 4210 5340 6420
    Spring rate [lbf/in.] 865 1110 1350 1600 1840 714
    Natural frequency [Hz] 2.0 1.9 1.8 1.7 1.7







    Pneumatic application – static characteristic values

    Force F [lbf]

    Pressure p [psi] 40 60 80 100 120 Vol. V [in.3]
    Height H [in.] 10.5 1620 2460 3360 4280 5200 770
    9.0 2220 3340 4510 5700 6850 680
    7.5 2690 4040 5420 6800 8150 570
    6.0 3070 4610 6190 7770 9280 450
    4.5 3390 5030 6780 8560 10200 340





    The usal kinds of Double Convolution Air Springs



    Double Convolution Air Actuator
    All Measurements Are In Mm
    GUOMAT NO. Contitech NO. Min. Design height Installation Space Required Max. Stroke
    2B33022 FD 330-22 75 340 230
    2B33030 FD 330-30 77 355 283
    2B53022 FD 530-22 77 400 233
    2B53030 FD 530-30 77 415 273
    2B53035 FD 530-35 77 420 313
    2B96022 FD 960-22 95 490 225
    2B133025 FD 1330-25 92 570 243





    FD330-22 CI Industrial Air Spring / Convolution Air Actuator Rerfer PHOENIX 2B 22R 0FD330-22 CI Industrial Air Spring / Convolution Air Actuator Rerfer PHOENIX 2B 22R 1FD330-22 CI Industrial Air Spring / Convolution Air Actuator Rerfer PHOENIX 2B 22R 2FD330-22 CI Industrial Air Spring / Convolution Air Actuator Rerfer PHOENIX 2B 22R 3
