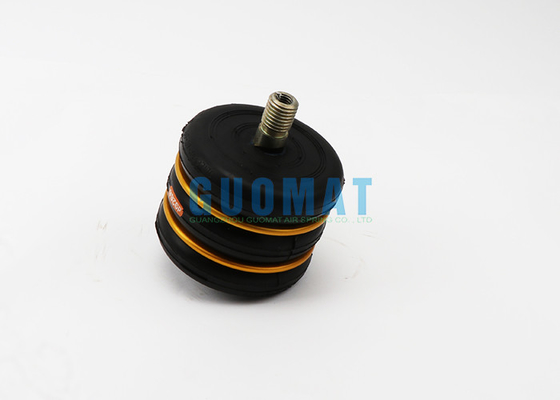

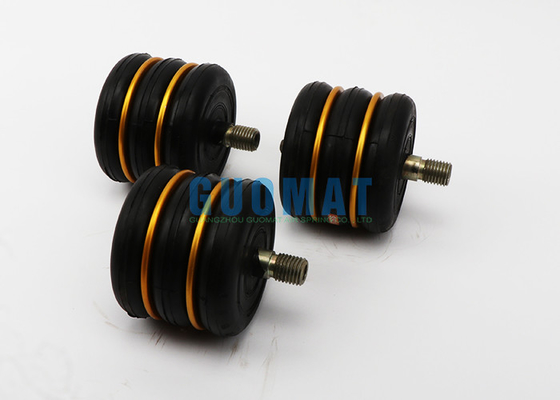

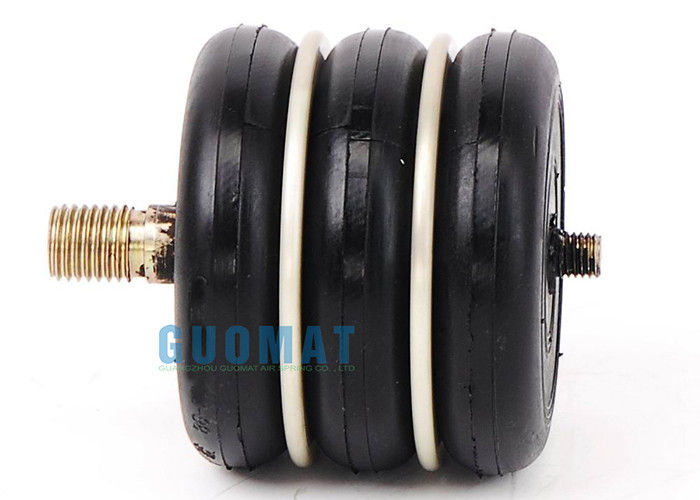

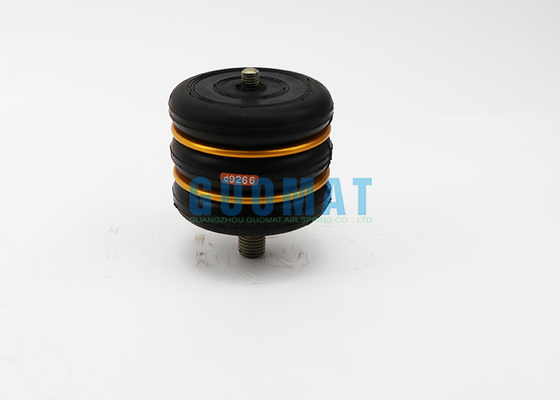

Rubber Power Press Triple Convoluted Air Spring Vibration Frequency 2.5 Hz

Rubber Power Press Triple Convoluted Air Spring Vibration Frequency 2.5 Hz

    • Rubber Power Press Triple Convoluted Air Spring Vibration Frequency 2.5 Hz
    • Rubber Power Press Triple Convoluted Air Spring Vibration Frequency 2.5 Hz
    • Rubber Power Press Triple Convoluted Air Spring Vibration Frequency 2.5 Hz
    • Rubber Power Press Triple Convoluted Air Spring Vibration Frequency 2.5 Hz
  • Rubber Power Press Triple Convoluted Air Spring Vibration Frequency 2.5 Hz

    Product Details:

    Place of Origin: Guangdong,China
    Brand Name: GUOMAT
    Certification: ISO/TS16949:2009
    Model Number: MB-160-3R

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiable
    Packaging Details: strong carton box or as customers need
    Delivery Time: 2-8 work days
    Payment Terms: T/T, Western Union,paypal or others
    Supply Ability: 1000pcs/week
    Contact Now
    Detailed Product Description
    Material: Rubber And Stainless Steel Yokohama: M-160-3R
    GUOMAT: MB-160-3R Layer Number: 3 Convolution
    Using Maximum Internal Pressure: 0.88 Mpa Vibration Frequency: 2.5 Hz
    Net Weight: 3.65 KG Gross Weight: 4.5 KG
    Package Size: 170mm*220mm*220mm Commonly Maximum Stroke: ±53mm
    High Light:

    triple convoluted air spring

    ,

    double convoluted air spring

    M-160-3 Power Press Triple Convoluted Rubber Air Spring Vibration Frequency 2.5 Hz





    Net Weight:3.655 KG



    Gross Weight:3.5 KG



    Package Size:170mm*220mm*220mm





    S-160 items Detailed Parameter Table:



    S-160 items Detailed Parameter Table:



    GUOMAT NO. ReMBerence No. Hight H(mm) Commonly Maximum stroke(mm) The LargeMt Diameter When CompreMMed(mm)
    DeMign High(mm) Maximum High(mm) Minimum Height(mm)
    MB-160-1 M-160-1 72 102 40 ±25 220
    MB-160-2 M-160-2 98 148 53 ±35 220
    MB-160-3 M-160-3 152 227 82 ±53 220
    MB-160-4 M-160-4 206 306 111 ±70 220



    GUOMAT NO. Reference No. Standard Height,Internal Pressure 0.49 M pa When The General Value Using Maximum Internal Pressure (M pa) Internal Pressure (M pa)
    Effective Area (Cm2) Volume(L) Load (K n) Dynamic Spring Parameters (N/Min) Vibration frequency (Hz)
    MB-160-1 S-160-1 200 1.9 9.8 636 3 0.69 2.9-3.9
    MB-160-2 S-160-2 200 2.1 9.8 255 2.5 0.88 2.9-3.9
    MB-160-3 S-160-3 200 3.4 9.8 157 2 0.88 2.9-3.9
    MB-160-4 S-160-4 200 4.7 9.8 118 1.7 0.88 2.9-3.9





    S-160-3R air spring fits below items



    Scissor lift

    Mechanical Hopper vibration and damping handling stop

    Direct force

    Platform lift

    Short stroke mechanical linkage

    Hot foil stamping press

    Impact absorbtion

    Roller tensioning

    Quick lock device

    Reel tensioning

    Machine isolation





    GUOMAT Has Punch Press Air Spring Cushion /Air Shock Absorber Part NO. Below:



    GUOMAT Part NO. Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No.
    MB-240-4 M-240-4R 240-4r
    MB-240-3 M-240-3R 240-3r
    MB-240-2 M-240-2R 240-2r
    MB-240-1 M-240-1R 240-1r
    MB-220-4 M-220-4R 220-4r
    MB-220-3 M-220-3R 220-3r
    MB-220-2 M-220-2R 220-2r
    MB-200-2 M-200-2R 200-2r
    MB-200-3 M-200-3R 200-3r
    MB-200-4 M-200-4R 200-4r
    MB-160-1 M-160-1R 160-1r
    MB-160-2 M-160-2R 160-2r
    MB-160-3 M-160-3R 160-3r
    MB-160-4 M-160-4R 160-4r
    MB-120-4 M-120-4R 120-4r
    MB-120-3 M-120-3R 120-3r
    MB-120-2 M-120-2R 120-2r
    MB-100-4 M-100-4R 100-4r
    MB-90-3 M-90-3R 90-3r
    MB-90-2 M-90-2R 90-2r
    MB-90-1 M-90-1R 90-1r
    MB-300-1 M-300-1R 300-1r
    MB-300-2 M-300-2R 300-2r
    MB-300-3 M-300-3R 300-3r
    MB-300-4 M-300-4R 300-4r



    Rubber Power Press Triple Convoluted Air Spring Vibration Frequency 2.5 Hz 0
