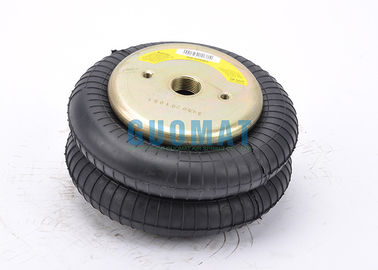

FD 120-17 CI Industrial Air Springs Double Convolution Air Actuator G3/4 Air Inlet

FD 120-17 CI Industrial Air Springs Double Convolution Air Actuator G3/4 Air Inlet

    • FD 120-17 CI Industrial Air Springs Double Convolution Air Actuator G3/4 Air Inlet
    • FD 120-17 CI Industrial Air Springs Double Convolution Air Actuator G3/4 Air Inlet
    • FD 120-17 CI Industrial Air Springs Double Convolution Air Actuator G3/4 Air Inlet
  • FD 120-17 CI Industrial Air Springs Double Convolution Air Actuator G3/4 Air Inlet

    Product Details:

    Place of Origin: China
    Brand Name: GUOMAT
    Certification: ISO/TS16949:2009
    Model Number: 2B120-17

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: strong carton box or as customers need
    Delivery Time: 2-8 work days
    Payment Terms: T/T, Western Union,Paypal or Others
    Supply Ability: 1000pcs/week
    Contact Now
    Detailed Product Description
    Material: Steel Cover Plate , Rubber Bellows CONTITECH: FD120-17
    Gas Hole: G3/4 Screw Tooth: M8
    Screw Center Distance: 70 Mm Cover Plate Diameter: 135 Mm
    Pressure Ability: 0.2-0.8 M Pa Stroke: 75~230 Mm
    High Light:

    air helper springs

    ,

    air suspension parts

    FD120-17 CI Industrial Air Spring Double Convolution Air Actuator 3/4 NPT Air Inlet





    Many OEM Original Equipment Manufacturers of FD120-17 :



    BELLOW NO. COMPLETE NO.

    CONTITECH 603 N BOSCH 822419042
    FIRESTONE FLEX 26 CONTITECH FD120-17
    FIRESTONE W01 358 0142 2682 030000
    PIRELLI 26 DUNLOP (FR) SO 8201
    PHOENIX 2B O7 R FESTO EB-215-155
    AIRKRAFT 114050 GOODYEAR 2B 7-540
      NORGREN PM/31082 (8x2)
      PIRELLI T26 84181
      TAURUS KF 218
      WEFORMA WBZ 300-E1
      AIRKRAFT 113053



    Nut / Blind Nut

    Top Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25

    Screw Center Distance of Top Cover Plate : 70 mm

    Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25

    Screw Center Distance of Bottom Cover Plate : 70mm

    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : G3/4

    Cover Plate

    Top Cover Plate Diameter (Width): 135 mm / 5.31 inches

    Bottom Cover Plate Diameter (Width): 135 mm / 5.31 inches

    Top Cover Plate Number: 3450

    Bottom Cover Plate Number: 3436

    Rubber Bellows

    Rubber Bellows Natural Diameter : 189 mm

    Rubber Bellows Natural Height : 177 mm

    Compressed Height: 79 mm / 3.12 inches

    Design Height: 178mm-203mm / 7-8 inches

    Maximum Diameter: 218 mm / 8.6 inches

    Bellows # NO.: 26

    Bumper block / Buffer block

    Without Bumper Block

    Girdle Hoop / Girdle Ring

    With Girdle Hoop :One Pieces of Girdle Hoop





    Detail Technical data at the below photo





    Order No.

    Rubber bellows only

    60221

    with crimped plates, 3/4 NPT air inlet
    0 in. excentrical

    75967





    Vibration isolation - dynamic characteristic values



    Design height H: recommended 7.48 inch, minimum 6.89 inch

    Pressure p [psi]

    40

    60

    80

    100

    120

    Vol. V [in.3]

    Force (Load) [lbf]

    778

    1210

    1640

    2060

    2460



    Spring rate [lbf/in.]

    311

    492

    673

    854

    1040

    232

    Natural frequency [Hz]

    2.1

    2.0

    2.0

    2.0

    2.0










    Pneumatic application - static characteristic values Force F [kN]



    Force F [lbf]

    Pressure p [psi]

    40

    60

    80

    100

    120

    Vol. V [in.3]

    Height H [in.]

    8.0

    681

    1070

    1440

    1820

    2180

    240

    7.0

    885

    1340

    1790

    2260

    2710

    220

    6.0

    1070

    1580

    2110

    2650

    3170

    200

    5.0

    1210

    1790

    2390

    3000

    3570

    170

    4.0

    1330

    1970

    2640

    3310

    3910

    140

    3.0

    1420

    2120

    2840

    3560

    4160

    120
