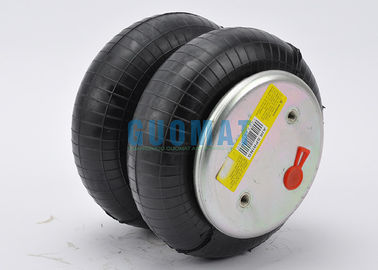

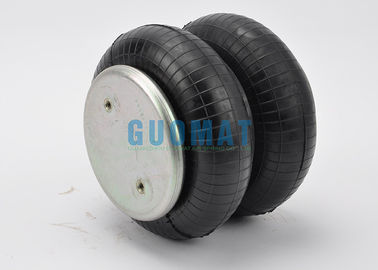

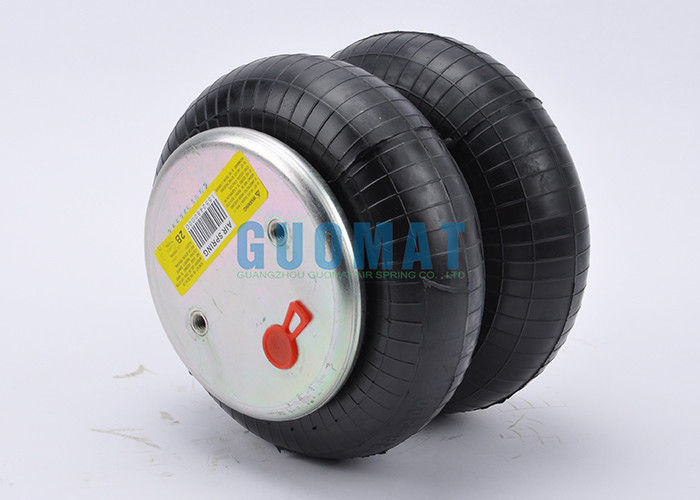

Steel And Rubber Firestone Industrial Air Spring Double Convoluted 20 W013586910

Steel And Rubber Firestone Industrial Air Spring Double Convoluted 20 W013586910

  • Steel And Rubber Firestone Industrial Air Spring Double Convoluted 20 W013586910
  • Steel And Rubber Firestone Industrial Air Spring Double Convoluted 20 W013586910
  • Steel And Rubber Firestone Industrial Air Spring Double Convoluted 20 W013586910
Steel And Rubber Firestone Industrial Air Spring Double Convoluted 20 W013586910
Product Details:
Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B6910
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel And Rubber Firestone: W01-358-6910
Warranty: 12 Months Weight: 3.0kg
Other Name: Air Actuators Rubber Bags Pressure Ability: 0.2-0.8 M Pa
Air Inlet: 1/4NPTF Bolt: 2X3/8-16UNC
High Light:

air helper springs

,

air suspension parts

W013586910 Firestone Industrial Air Spring Airide Air Spring Double Convoluted 20




 About  GUOMAT Air Sring 2B6910 replaces Firestone W01-358-6910



GUOMAT Air Sring launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products Air Sring 2B6910 meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products Air Sring 2B6910 produced. This is our high recognition from American customers and also gives us Great motivation.




OEM Original Equipment Manufacturer:


BELLOW Numbers COMPLETE Numbers

CONTITECH FD 20019 S / 895 N Firestone : W01-358-6910
FIRESTONE FLEX 20 Contitech : FD 200-19 320
FIRESTONE W01-358-0138 Goodyear : 2B9-200/202/216
095-0009 Hendrickson : S8768/458433
GOODYEAR 2B 9-200 : 578423202
578923202 Triangle: 6325/4320
PHOENIX 2B 12R Dayton : 3546910
PIRELLI T20 86600 Leland : Sc2011
AIRKRAFT 114001 Navistar : 554783C1
  Dina : A812719/AZ812719
  SAF Holland : 57006910
  Trailers De : 133128
  Brake & Wheel : M3501
  Ridewell : 1003586910C
  Tuthill : 1371
  Watson&Chalin : AS-0001/AS-0156G




Specifications and Technical Data of W01-358-6910 and 2B9-200

Firestone part number: W01-358-6910 /

Firestone part number:W013586910 /

Firestone part number:W01 358 6910

Firestone:W01-358-6910,
Firestone:W013586910,
Firestone:WO1-358-6910,
Firestone:WO13586910
Firestone Corrugated Tube Number: 20

Firestone Bellows Number:20
Goodyear part number: 2B9-200 /

Goodyear part number:2B9200 /

Goodyear part number:2B9 200
Goodyear Bellows Number: 578-92-3-202 /

Goodyear Bellows Number:578923202/

Goodyear Bellows Number:578 92 3 202
Number of grids: 1371
Hendrickson Trailer No.: S-8768
Hendrickson Truck Number: 45843-3
Ridewell number: 1003586910C
Triangle part number: 4320
Triangle bellows number: 6325
Watson&Chalin#:AS-0001
Compressed height: 3.12
Number of top plates: 3079
Top cover diameter: 6.31 inches / 160 mm
Number of bottom pistons: 3090
Bottom cover diameter: 6.31 inches / 160 mm
Screw center distance: 89 mm
The distance between the nuts is 44.5 mm
Top cover screw (nut) teeth: 2pcsX 3 / 8-16UNC
Bottom cover screw (nut) teeth: 2pcsX 3 / 8-16UNC
Rubber bellows MAX diameter: 251 mm
Rubber bellows natural diameter 224 mm
Working stroke: up to 260 mm to MIN 75 mm
Air vent / air inlet: 1/4 NPT




Inch Technical Data of W01-358-6910



Maximum diameter @ 100 PSIG (inch)
9.9
Maximum height (inch)
9.1
Maximum stroke (inch)
6
Minimum usable height (inches)
3.1

Style cross reference equivalent high intensity style number
202
Style cross reference extended height (similar end caps) style number
20-2
material
2-layer standard line
End details
Bead plate type
3
Blind nut center (inch)
3.5
Port offset of blind nut centerline (inch)
1.75



80PSI force at 1 inch stroke (lbs)
3790
80 PSI force (lbs) at a stroke of 3 inches
3180
Maximum thrust for maximum stroke @ 80PSI (pounds)
1770

How to Calculation For Pneumatics, Such as

• Mass To Be Lifted 2000 M (Kg)
• Desired Stroke 190 S Min (Mm)
• Number Of Air Springs 4 N
• Minimum Installation Height 190 H Min (Mm)
• Minimum Installation Diameter 500 D (Mm)
• Air Pressure 6 P (Bar)


Vibration isolation – dynamic characteristic values
Design height H: recommended 210mm, minimum 195mm

Pressure p [bar]

3

4

5

6

7

8

Vol. V [l]

Force (Load) [kN]

5.2

7.1

9

10.7

12.4

14.5



Spring rate [N/mm]

79.5

103

126.5

150

173.5

197

5.9

Natural frequency [Hz]

2.0

1.9

1.9

1.9

1.9

1.9







Pneumatic application – static characteristic values
Force F [kN]

Pressure p [bar]

3

4

5

6

7

8

Vol. V [l]

Height H [mm]

230

4.21

5.7

7.2

8.73

10.3

12

6.4

200

5.8

7.78

9.74

11.7

13.8

15.9

5.7

170

6.96

9.3

11.7

14.1

16.5

19

5

140

7.86

10.5

13.2

15.8

18.5

21.3

4.1

110

8.52

11.4

14.2

17.1

19.9

22.9

3.4

80

9.07

12

15

18

21

24.1

2.5





Applications of GUOMAT Air Sring 2B6910:


• Press Manufacturing
• Vibrating Equipment &
Conveyers
• Shaker Screens
• Steel Manufacturing
Equipment
• Automotive Related
(Plate Glass)
• Material Handling Industry
• Lumber Industry
• Aluminum Can Recycling
• Container Manufacturers
• Paper Industry


Steel And Rubber Firestone Industrial Air Spring Double Convoluted 20 W013586910 0Steel And Rubber Firestone Industrial Air Spring Double Convoluted 20 W013586910 1Steel And Rubber Firestone Industrial Air Spring Double Convoluted 20 W013586910 2



ORDER NUMBER STYLE NUMBER SEE PAGE ORDER NUMBER ORDER NUMBER STYLE NUMBER STYLE NUMBER SEE PAGE SEE PAGE
W01-358-0010 16 38 W01-M58-6079 21 63
W01-358-0017 16 38 W01-M58-6100 113 47
W01-358-0025 25 55 W01-M58-6101 113 47
W01-358-0030 25 55 W01-M58-6102 113 47
W01-358-0100 110 41 W01-M58-6103 113 47
W01-358-0112 110 41 W01-M58-6105 255-1.5 56
W01-358-0118 115 44 W01-M58-6107 233-2 65
W01-358-0119 119 50 W01-M58-6109 233-2 65
W01-358-0127 131 40 W01-M58-6112 21 63
W01-358-0131 131 40 W01-M58-6113 21 63
W01-358-0133 116 42 W01-M58-6114 21 63
W01-358-0134 19 45 W01-M58-6155 131 40
W01-358-0135 113 47 W01-M58-6115 21 63
W01-358-0140 21-2 64 W01-M58-6120 313 73
W01-358-0142 26 58 W01-M58-6121 313 73
W01-358-0147 134-1.5 53 W01-M58-6122 313 73
W01-358-0149 134-1.5 53 W01-M58-6123 313 73
W01-358-0150 113-1 48 W01-M58-6128 352 72
W01-358-0201 28 66 W01-M58-6129 352 72
W01-358-0205 203 67 W01-M58-6130 313 73
W01-358-0207 29 68 W01-M58-6132 313 73
W01-358-0213 21 63 W01-M58-6136 333 74
W01-358-0219 203 67 W01-M58-6137 333 74
W01-358-0226 22 61 W01-M58-6138 333 74
W01-358-0231 113 47 W01-M58-6140 16 38
W01-358-0259 22-1.5 62 W01-M58-6145 110 41
W01-358-0324 323 76 W01-358-0152 20-2 60
W01-358-0480 1X84D-1 80 W01-M58-6160 25 55
W01-358-0987 320 77 W01-M58-6165 116 42
W01-358-1002 320 77 W01-M58-6166 116 42
W01-358-1021 148-1 54 W01-M58-6170 116-1 43
W01-358-1022 248-2 71 W01-M58-6175 116 42
W01-358-1023 348-3 79 W01-M58-6176 116 42
W01-358-1026 126 52 W01-M58-6181 115 44
W01-358-2132 1T19L-11 98 W01-M58-6182 115 44
W01-358-5126 200 69 W01-358-0152 20-2 60
W01-358-5135 121 51 W01-M58-6185 20 59
W01-358-5305 1T14C-1 86 W01-M58-6186 20 59
W01-358-5306 1T14C-1 86 W01-M58-6187 20 59
W01-358-5307 1T14C-1 86 W01-M58-6188 20 59
W01-358-5310 1T14C-1 86 W01-M58-6190 20 59
W01-358-5311 1T14C-1 86 W01-M58-6192 20 59
W01-358-5405 1T14C-3 87 W01-M58-6194 20-2 60
W01-358-5708 1T14C-7 88 W01-M58-6200 22 61
W01-358-5712 1T14C-7 88 W01-M58-6201 22 61
W01-358-5743 1T14C-7 88 W01-M58-6210 22 61
W01-M58-6008 19 45 W01-M58-6212 22 61
W01-M58-6011 19 45 W01-M58-6213 22 61
W01-M58-6040 19-.75 46 W01-M58-6220 1T12E-3 85
W01-M58-6066 113-1 48 W01-M58-6255 1T15L-4 91
W01-M58-6067 113-1 48 W01-M58-6256 1T15L-4 91
W01-M58-6068 113 47 W01-M58-6263 1T15M-0 92
W01-M58-6069 113 47 W01-M58-6264 1T15M-0 92
W01-M58-6070 113 47 W01-M58-6265 1T15M-0 92
W01-M58-6071 113 47 W01-M58-6266 1T15M-0 92
W01-M58-6077 21 63 W01-M58-6270 1T15M-2 93
