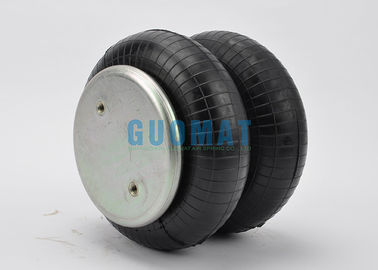

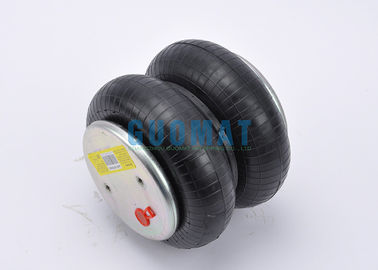

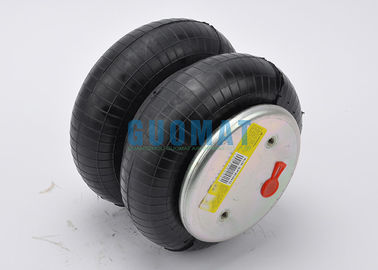

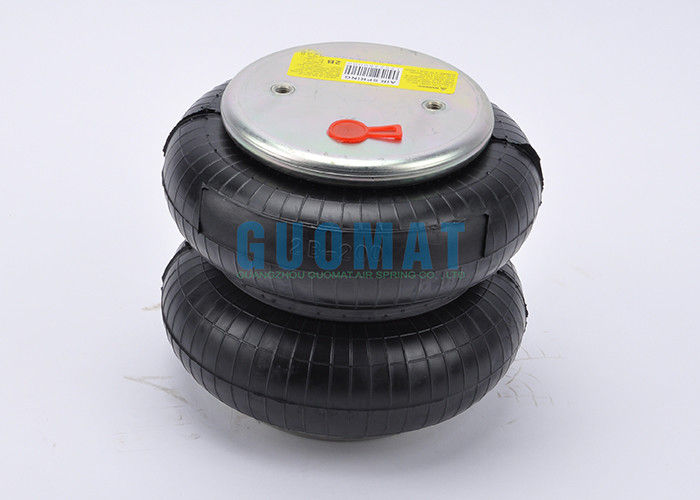

2B9-200 Goodyear Air Spring For SAF Holland 57006910 / Chassis Suspension Spring

2B9-200 Goodyear Air Spring For SAF Holland 57006910 / Chassis Suspension Spring

    • 2B9-200 Goodyear Air Spring For SAF Holland 57006910 / Chassis Suspension Spring
    • 2B9-200 Goodyear Air Spring For SAF Holland 57006910 / Chassis Suspension Spring
    • 2B9-200 Goodyear Air Spring For SAF Holland 57006910 / Chassis Suspension Spring
    • 2B9-200 Goodyear Air Spring For SAF Holland 57006910 / Chassis Suspension Spring
  • 2B9-200 Goodyear Air Spring For SAF Holland 57006910 / Chassis Suspension Spring

    Product Details:

    Place of Origin: Guangdong,China
    Brand Name: GUOMAT
    Certification: ISO/TS16949:2009
    Model Number: 2B6910

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: strong carton box or as customers need
    Delivery Time: 2-8 work days
    Payment Terms: T/T, Western Union,Paypal or Others
    Supply Ability: 1000pcs/week
    Contact Now
    Detailed Product Description
    Material: Steel Cover Plate , Rubber Bellows Goodyear: 2B9-200
    Gas Hole: 1/4NPTF Screw Tooth: 3/8-16UNC
    Screw Center Distance: 89 Mm Cover Plate Diameter: 160 Mm
    Pressure Ability: 0.2-0.8 M Pa Stroke: 75~260 Mm
    Net Weight: 3.35 Kg Package Size: 24*24*24 CM
    High Light:

    air helper springs

    ,

    air suspension parts

     2B9-200 Goodyear Air Spring For SAF Holland 57006910 Chassis Suspension Spring





    GUOMAT 2B6910 Technical parameters



    Nut / Blind Nut



    Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Top Cover Plate : 89 mm

    Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Bottom Cover Plate : 89 mm



    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : 1/4-18NPTF

    Screw Center Distance Between Gas Hole and Nut : 44.5 mm



    Cover Plate

    Top Cover Plate Diameter: 160 mm

    Bottom Cover Plate Diameter: 160 mm



    Rubber Bellows

    Rubber Bellows MAX Diameter: 251 mm

    Rubber Bellows Natural Diameter : 224 mm

    The Working Stroke : MIN 75 mm to MAX 260 mm

    Maximum Height : 274 mm

    Minimum Height :95mm

    Stroke Height : 179mm



    Bumper block / Buffer block

    Without Bumper Block



    Girdle Hoop / Girdle Ring

    With Girdle Hoop :One Pieces of Girdle Hoop





    2B6910 Cross others OEM



    OEM Reference OEM Reference
    Granning: 1371 Taurus: AS218-6910
    Triangle Spring: 4320 Dallas Spring: AS6910
    Firestone: 6910 Sirco: AS-6910
    Conti Tech: 64267 Midland/Haldex: CS209200
    R & S Truck: 1027405 Euclid/Meritor Aftermarket: E-FS6910
    Ridewell: 1003586910C Conti Tech: FD200-19320
    Batco: 10-96910 Euclid/Meritor Aftermarket: FS6910
    Reyco: 23704-01 BWP: M-3501
    Hendrickson: 45843-3 HD America: PMABG-6910B
    Navistar/IHC: 554783C1 Ridewell: S4512C
    UCF/Impex: AB-2B9-200 Leland: SC201
    Automann: ABSP2B12R-6910 Leland: SC2011
    Watson & Chalin: AS0001





    Other kinds of goodyear that GUOMAT have:



    GUOMAT Number Assembly Number Max OD @100 PSIG (Inches) Design Load Range (pounds) Design Height Range (Inches) Usable Stroke (Inches) Min Comp Height (Inches) Max Ext Height (Inches) Bumper Included Approximate Isolation Percent Air Fitting Size (Inches)
    For a Distributing Frequency Of:
    435 CPM 870 CPM 1160 CPM 1750 CPM
    1B9 201 1B9-201 11 640 - 3,900 4.5 - 5.0 2.7 3.2 5.9 YES 84 96 97 99 1/4 OS
    1B9 202 1B9-202 11 640 - 3,900 4.5 - 5.0 3.6 2.3 5.9 NO 84 96 97 99 1/4 OS
    1B9 204 1B9-204 11 640 - 3,900 4.5 - 5.0 3.6 2.3 5.9 NO 84 96 97 99 1/2 OS
    1B9 205 1B9-205 11 640 - 3,900 4.5 - 5.0 2.7 3.2 5.9 YES 84 96 97 99 1/2 OS
    1B9 207 1B9-207 11 640 - 3,900 4.5 - 5.0 3.6 2.3 5.9 NO 84 96 97 99 3/4 OS
    1B9 208 1B9-208 11 640 - 3,900 4.5 - 5.0 2.7 3.2 5.9 YES 84 96 97 99 3/4 OS
    2B12 309 2B12-309 13 900 - 7,205 7.5 - 9.5 6.9 4.2 11.1 YES 92 98 98 99 1/4 OS
    2B12 318 2B12-318 13 900 - 7,205 7.5 - 9.5 6.9 4.2 11.1 YES 92 98 98 99 3/4 OS
    2B12 416 2B12-416 13.7 1,300 - 8,100 7.5 - 9.5 10.9 3.5 14.4 NO 92 98 99 99 1/4 OS
    2B12 419 2B12-419 13.7 1,300 - 8,100 7.5 - 9.5 10.9 3.5 14.4 NO 92 98 99 99 3/4 OS
    2B12 425 2B12-425 13 900 - 7,205 7.5 - 9.5 7.6 3.5 11.1 NO 92 98 98 99 1/4 OS
    2B12 429 2B12-429 13 900 - 7,205 7.5 - 9.5 7.6 3.5 11.1 NO 92 98 98 99 3/4 OS
    2B12 437 2B12-437 13 900 - 7,205 7.5 - 9.5 7.6 3.5 11.1 NO 92 98 98 99 1/4 C
    2B12 440 2B12-440 13.7 1,300 - 8,100 7.5 - 9.5 10.6 3.8 14.4 YES 92 98 99 99 1/4 CS
    2B14 352 2B14-352 15.1 1,500 - 11,100 7.5 - 9.5 7.8 3.5 11.3 NO 93 98 99 99 3/4 OS
    2B14 353 2B14-353 15.1 1,500 - 11,100 7.5 - 9.5 6.4 4.9 11.3 YES 93 98 99 99 3/4 OS
    2B14 354 2B14-354 15.1 1,500 - 11,100 7.5 - 9.5 7.8 3.5 11.3 NO 93 98 99 99 1/4 OS
    2B14 355 2B14-355 15.1 1,500 - 11,100 7.5 - 9.5 6.4 4.9 11.3 YES 93 98 99 99 1/4 OS
    2B14 362 2B14-362 16 2,000 - 13,100 7.5 - 9.5 11.7 3.5 15.2 NO 93 98 99 99 1/4 OS
    2B14 363 2B14-363 16 2,000 - 13,100 7.5 - 9.5 11.7 3.5 15.2 NO 93 98 99 99 3/4 OS
    2B14 452 2B14-452 16 2,000 - 13,100 7.5 - 9.5 11 4.2 15.2 YES 93 98 99 99 1/4 OS
    2B15 375 2B15-375 16.7 2,000 - 12,300 7.5 - 9.5 9.3 3.5 12.8 NO 93 98 99 99 1/4 OS
    2B15 376 2B15-376 16.7 2,000 - 12,300 7.5 - 9.5 7.9 4.9 12.8 YES 93 98 99 99 1/4 OS
    2B15 377 2B15-377 16.7 2,000 - 12,300 7.5 - 9.5 9.3 3.5 12.8 NO 93 98 99 99 3/4 OS
    2B15 378 2B15-378 16.7 2,000 - 12,300 7.5 - 9.5 7.9 4.9 12.8 YES 93 98 99 99 3/4 OS
    2B19 8423 2B19-8423 20.5 3,200 - 23,700 7.0 - 10.0 8.75 3.25 12 ** 92 97 98 99 **
    2B19 8433 2B19-8433 20.5 3,200 - 23,700 7.0 - 10.0 8.75 3.25 12 ** 92 97 98 99 **
    2B22 8529 2B22-8529 23 5,200 - 31,700 7.0 - 9.0 9.25 3.25 12.5 ** 93 97 98 99 **
    2B22 8539 2B22-8539 23 5,200 - 31,700 7.0 - 9.0 9.25 3.25 12.5 ** 93 97 98 99 **
    2B6 530 2B6-530 6.5 180 - 2,000 4.5 - 6.5 4.9 2.8 7.7 NO 85 96 97 99 1/4 C
    2B6 531 2B6-531 6.5 180 - 2,000 4.5 - 6.5 4.9 2.8 7.7 NO 85 96 97 99 1/4 OS
    2B6 532 2B6-532 6.5 180 - 2,000 4.5 - 6.5 4.3 3.4 7.7 YES 85 96 97 99 1/4 OS
    2B6 535 2B6-535 7 300 - 2,200 5.0 - 7.0 6.3 2.8 9.1 NO 92 97 98 99 1/4 OS
    2B6 536 2B6-536 7 300 - 2,200 5.0 - 7.0 5.7 3.4 9.1 YES 92 97 98 99 1/4 OS
    2B7 540 2B7-540 8 230 - 2,500 6.0 - 8.0 6.5 2.5 9 NO 91 97 98 99 1/4 C
    2B7 541 2B7-541 8 230 - 2,500 6.0 - 8.0 6.5 2.5 9 NO 91 97 98 99 1/4 OS
    2B7 542 2B7-542 8 230 - 2,500 6.0 - 8.0 5.7 3.3 9 YES 91 97 98 99 1/4 OS
    2B7 546 2B7-546 8 230 - 2,500 6.0 - 8.0 6.5 2.5 9 NO 91 97 98 99 3/4 C
    2B8 550 2B8-550 8.8 440 - 2,700 7.0 - 8.0 7.2 2.9 10.1 NO 93 97 98 99 1/4 C
    2B8 552 2B8-552 8.8 440 - 2,700 7.0 - 8.0 7.2 2.9 10.1 NO 93 97 98 99 3/4 C
    2B8 553 2B8-553 8.8 440 - 2,700 7.0 - 8.0 7.2 2.9 10.1 NO 93 97 98 99 1/4 OS
    2B8 554 2B8-554 8.8 440 - 2,700 7.0 - 8.0 6.6 3.5 10.1 YES 93 97 98 99 1/4 OS
    2B9 200 2B9-200 10.3 340 - 3,700 8.0 - 9.0 7.6 3.2 10.8 NO 92 97 98 99 1/4 OS
    2B9 201 2B9-201 10.3 340 - 3,700 8.0 - 9.0 7 3.8 10.8 YES 92 97 98 99 1/4 OS
    2B9 204 2B9-204 10.3 340 - 3,700 8.0 - 9.0 7.6 3.2 10.8 NO 92 97 98 99 1/2 OS
    2B9 205 2B9-205 10.3 340 - 3,700 8.0 - 9.0 7 3.8 10.8 YES 92 97 98 99 1/2 OS
    2B9 208 2B9-208 10.3 340 - 3,700 8.0 - 9.0 7 3.8 10.8 YES 92 97 98 99 3/4 OS
    2B9 216 2B9-216 10.3 340 - 3,700 8.0 - 9.0 7.6 3.2 10.8 NO 92 97 98 99 3/4 OS
    2B9 250 2B9-250 10.3 540 - 3,800 8.0 - 9.0 8.7 3.5 12.2 NO 93 98 99 99 1/4 OS
    2B9 251 2B9-251 10.3 540 - 3,800 8.0 - 9.0 8.4 3.8 12.2 YES 93 98 99 99 1/4 OS
    2B9 253 2B9-253 10.3 540 - 3,800 8.0 - 9.0 8.4 3.8 12.2 YES 93 98 99 99 1/4 OS
    2B9 255 2B9-255 10.3 540 - 3,800 8.0 - 9.0 8.4 3.8 12.2 YES 93 98 99 99 1/4 OS
    2B9 256 2B9-256 10.3 540 - 3,800 8.0 - 9.0 8.7 3.5 12.2 NO 93 98 99 99 1/4 OS
    2B9 263 2B9-263 10.3 540 - 3,800 8.0 - 9.0 8.7 3.5 12.2 NO 93 98 99 99 1/2 OS
    2B9 275 2B9-275 10.3 540 - 3,800 8.0 - 9.0 8.7 3.5 12.2 NO 93 98 99 99 3/4 OS
    FD 200-22 FD 200-22
