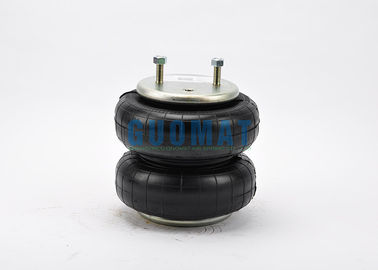

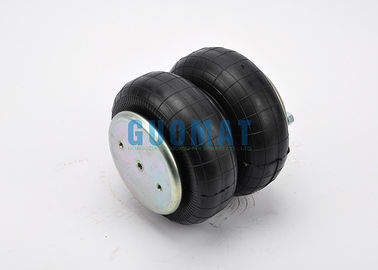

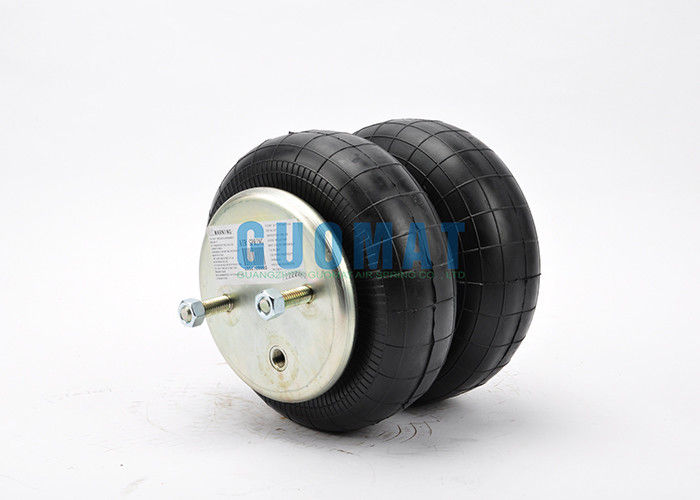

W013586943 Double Convolution Industrial Air Spring For American Tractor / Trailer

W013586943 Double Convolution Industrial Air Spring For American Tractor / Trailer

    • W013586943 Double Convolution Industrial Air Spring For American Tractor / Trailer
    • W013586943 Double Convolution Industrial Air Spring For American Tractor / Trailer
    • W013586943 Double Convolution Industrial Air Spring For American Tractor / Trailer
  • W013586943 Double Convolution Industrial Air Spring For American Tractor / Trailer

    Product Details:

    Place of Origin: Guangdong,China
    Brand Name: GUOMAT
    Certification: ISO/TS16949:2009
    Model Number: 2B6943

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: strong carton box or as customers need
    Delivery Time: 2-8 work days
    Payment Terms: T/T, Western Union,Paypal or Others
    Supply Ability: 1000pcs/week
    Contact Now
    Detailed Product Description
    Material: Steel Cover Plate , Rubber Bellows Firestone: W013586943
    Gas Hole: 1/4NPTF Screw Tooth: 3/8-16UNC
    Screw Center Distance: 89 Mm Cover Plate Diameter: 160 Mm
    Pressure Ability: 0.2-0.8 M Pa Stroke: 79-325 Mm
    Package Size: 24*24*24 Cm
    High Light:

    air helper springs

    ,

    air suspension parts

    W013586943 Double Convolution Air Suspension Spring For American Tractor /Trailer





    GUOMAT 2B6943 Specifications:



    Firestone Part Number: W01-358-6943 / W013586943 / W01 358 6943

    Firestone Bellows Number: 20-2

    Goodyear Part Number: 2B9-250

    Goodyear Bellows Number: 578-92-3-206 / 578923206 / 578 92 3 206

    Triangle Part Number: 4426

    Triangle Bellows Number: 6332

    Watson & Chalin #: AS-0041

    Bellows NO.: 20-2

    Order Number: W01-358-6943

    Top Plate Number: 3101

    Bottom Piston Number: 3090





    Technical Data:



    Compressed Height: 3.12 inches /

    Top Cover Plate Diameter: 6.31 inches / 160mm

    Bottom Cover Plate Diameter: 6.31 inches / 160mm

    Screw Center Distance : 89 mm

    Distance Gas Hole Between Nut 44.5 mm

    Top Cover Plate Screw (Nut) Tooth : 2pcsX1/2-13UNC

    Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

    Rubber Bellows MAX Diameter: 262 mm

    The Working Stroke : MAX 325 mm to MIN 79 mm

    Gas Hole / Air inlet : 1/4 NPTF

    Assembly Weight: 8.1 lbs

    Design Height: 9-11 inches

    loading cap.at3.0bar: 11.17kn
    loading cap.at7.0bar: 31.65kn

    Maximum Diameter: 10.4 inches

    Operating Temperature: 56Cº to -53Cº
    Weight : 6.5kg
    Desigh height : 300mm
    Deflection(height min) :150mm
    Deflection(height max):440mm
    Working stroke: 290mm
    Cross Information





    GUOMAT 2B6943 Cross others OEM



    OEM References Numbers References Numbers
    Firestone : W01-358-6943 Watson&Chalin : AS-0041
    Contitech : FD 200-25 426 Neway/SAF : 90557237
    Contitech :: 161332 V-Steer II (Lift Bag)
    Goodyear: 2B9-250 Van Raden
    Triangle : 6332/4426 Ridewell : 1003586943C
    Goodyear:: 578923206 Tuthill : 6352

    CONTITECH FD 200-25 426
    FIRESTONE W01-358-6943
    GOODYEAR 2B9-250
    OEM Information
    WATSON&CHALIN AS-0041
    NEWAY 90557237





    Design height H: recommended 10 inch, minimum 9.06 inch

    Pressure p [psi]

    40

    60

    80

    100

    120

    Vol. V [in.3]

    Force (Load) [lbf]

    1230

    1890

    2540

    3190

    3840



    Spring rate [lbf/in.]

    389

    552

    741

    932

    1080

    538

    Natural frequency [Hz]

    1.8

    1.8

    1.7

    1.7

    1.7







    Pneumatic application – static characteristic values

    Force F [lbf]

    Pressure p [psi]

    40

    60

    80

    100

    120

    Vol. V [in.3]

    Height H [in.]

    11.0

    948

    1470

    2000

    2550

    3110

    560

    10.0

    1180

    1780

    2430

    3060

    3720

    540

    9.0

    1370

    2070

    2780

    3510

    4240

    510

    8.0

    1530

    2280

    3070

    3850

    4640

    470

    7.0

    1670

    2490

    3340

    4200

    5030

    440

    6.0

    1790

    2680

    3570

    4470

    5360

    400

    5.0

    1880

    2800

    3750

    4700

    5570

    350

    4.0

    1960

    2910

    3910

    4900

    5750

    300





    Description convolution/ convoluted air spring



    convoluted air spring is a bellows style GUOMAT air spring. The bellows air springs have one, two, or three convolutions in the flexible member. This dual complex air bags are often used as a lifting spring or shaft trucks and trailers, do an air spring, also as an actuator or insulator in the industrial and commercial applications and devices. The specifications will vary on your 2B9-250, but double convoluted GUOMAT bags are found in crimped design as well as sleeve type bellows. They will provide similar features and functions but sleeve type of retainer permanent connection with the final between retainers and external replaceable parts plait ring.





    Details Technical data at the below photo



    W013586943 Double Convolution Industrial Air Spring For American Tractor / Trailer 0W013586943 Double Convolution Industrial Air Spring For American Tractor / Trailer 1W013586943 Double Convolution Industrial Air Spring For American Tractor / Trailer 2
