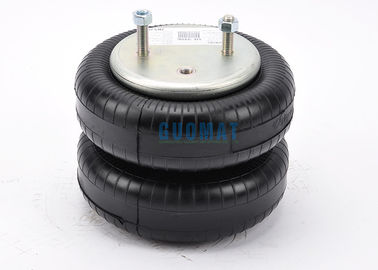

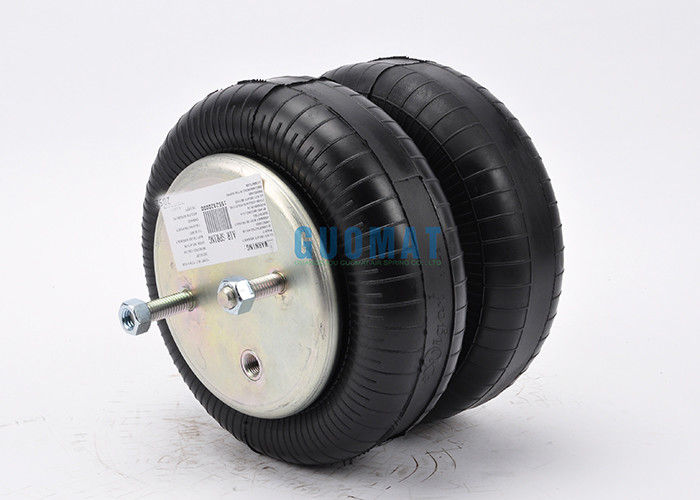

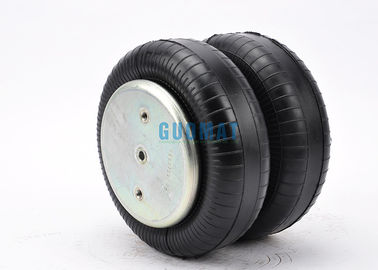

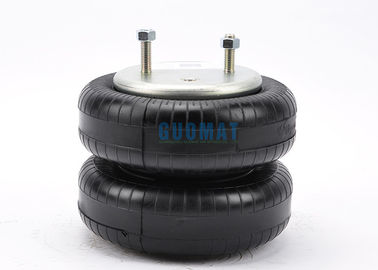

2B9-253​ Industrial Air Spring Actuators Air Ride Air Spring Two Convoluted For Machines

China 2B9-253​ Industrial Air Spring Actuators Air Ride Air Spring Two Convoluted For Machines supplier
2B9-253​ Industrial Air Spring Actuators Air Ride Air Spring Two Convoluted For Machines supplier 2B9-253​ Industrial Air Spring Actuators Air Ride Air Spring Two Convoluted For Machines supplier 2B9-253​ Industrial Air Spring Actuators Air Ride Air Spring Two Convoluted For Machines supplier 2B9-253​ Industrial Air Spring Actuators Air Ride Air Spring Two Convoluted For Machines supplier

Large Image :  2B9-253​ Industrial Air Spring Actuators Air Ride Air Spring Two Convoluted For Machines

Product Details:

Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B9253​

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows Goodyear: 2B9-253
Gas Hole: 1/4NPTF Two Pillars Stick Nuts: 1/2
Screw Center Distance: 89 Mm Cover Plate Diameter: 160 Mm
Pressure Ability: 0.2-0.8 M Pa Natural Height: 235 Mm

2B9-253​ Industrial Air Spring Actuators Airide Air Spring Double Convoluted For Machines





GUOMAT NO. 2B9253​ Specifications:



Roof hole/stud: 3 pieces
Bottom hole / stud: 2 pieces
Top cover: 6.4 inches / 160 mm
Bottom cover diameter: 6.4 inches / 160 mm
Folding height: 3.8 inches / 96 mm
Top cover screw center distance: 3.5 inches / 89 mm
Screw center distance of bottom cover: 3.5 inches / 89 mm
Rubber bellows natural diameter: 232.5 mm
Working stroke: MAX 309 mm to MIN 96 mm / MAX 12.2 inches to MIN 3.8 inches
Maximum height: 12.2 inches / 309 mm
Minimum height: 3.8 inches / 96 mm
Compressed height: 8.3 inches / 213 mm
Rubber bellows natural: 9.2 inches / 235 mm





GUOMAT NO. 2B9253​ Cross others OEM



OEM References Numbers References Numbers
Firestone W01-358-6951 Triangle : 6332/4427
Contitech FD 200-25 Leland : Sc2125
Goodyear 578923206 Watson&Chalin : AS0119F
Goodyear 2B9-253 : AS01451G
  Ridewell : 1003586945C

Goodyear Trimmed: 2B9253

Conti Tech: FD200-25427 / FD 200-25 427

Firestone W01-358-6945 / 20-2

Goodyear 2B9-253

Goodyear Flexmember: 578-92-3-206 / 578923206 / 578 92 3 206

Triangle Spring: 4427 / 6332

Firestone: 6945

Conti Tech: 64550

Ridewell: 1003586945C

Batco: 10-96945

UCF / Impex: AB-2B9-253

T.W. Distribution: AB6945

Dallas Spring: AS6945

Midland / Haldex: CS209253

Euclid/Meritor Aftermarket: E-FS6945

Euclid/Meritor Aftermarket: FS6945

Leland: SC2125

Watson&Chalin : AS0119F / AS01451G





Details Technical data at the below photo

Vibration isolation - dynamic characteristic values

Pneumatic application - static characteristic values Force F [kN]



2B9-253​ Industrial Air Spring Actuators Air Ride Air Spring Two Convoluted For Machines2B9-253​ Industrial Air Spring Actuators Air Ride Air Spring Two Convoluted For Machines2B9-253​ Industrial Air Spring Actuators Air Ride Air Spring Two Convoluted For Machines2B9-253​ Industrial Air Spring Actuators Air Ride Air Spring Two Convoluted For Machines
