578-92-3-315 Industrial Air Spring Bellow FD331-26 514 Compressed Height 104 mm 2B12-345

China 578-92-3-315 Industrial Air Spring Bellow FD331-26 514 Compressed Height 104 mm 2B12-345 supplier
578-92-3-315 Industrial Air Spring Bellow FD331-26 514 Compressed Height 104 mm 2B12-345 supplier 578-92-3-315 Industrial Air Spring Bellow FD331-26 514 Compressed Height 104 mm 2B12-345 supplier 578-92-3-315 Industrial Air Spring Bellow FD331-26 514 Compressed Height 104 mm 2B12-345 supplier 578-92-3-315 Industrial Air Spring Bellow FD331-26 514 Compressed Height 104 mm 2B12-345 supplier 578-92-3-315 Industrial Air Spring Bellow FD331-26 514 Compressed Height 104 mm 2B12-345 supplier

Large Image :  578-92-3-315 Industrial Air Spring Bellow FD331-26 514 Compressed Height 104 mm 2B12-345

Product Details:

Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B7545

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber Bellows Steel Cover Plate GoodYear: 2B12-345
Contitech Bellows#: FD 331-26, 64284 GoodYear Bellows#: 578 92 3 315 / 578923315
Air Inlet: 1/4NPT Top Cover Plate Diameter (Width): 224.5 Mm
Compressed Height: 104 Mm Working Stroke: 259 Mm
GUOMAT: Bland New

578-92-3-315 Industrial Air Spring Bellow FD331-26 514 Compressed Height 104 mm 2B12-345





Manufacturer Cross OEM Reference Other Cross OEM Reference
Firestone : W01-358-7545 / W01 358 7545 / W013587545 Triangle Part Number:4514
Firestone Bellows Number:228-1.5 / 228C-1.5 Triangle Bellows Number:6375
Firestone Top Plate Number:3271 Hendrickson Auxiliary : 001796
Firestone Piston Number:3183 (Paralift Ultra/High Lift) - Lift bag
Contitech : FD 331-26 514 Watson&Chalin : AS-0087-1F / AS-0109
Contitech Bellows#: FD 331-26, 64284
Goodyear : 2B12-345 / 2B12 345 / 2B12345
GoodYear Bellows#: 578-92-3-315 / 578 92 3 315 / 578923315





Compressed Height: 3.60 inches
Top Plate Number:3271
Top Plate Width:9.00 inches
Piston Number:3183
Piston Width:9.00 inches
Firestone Bellows Number:228-1.5
Hendrickson Auxiliary Number:001796
Triangle Part Number:4514
Triangle Bellows Number:6375
Watson & Chalin #:AS-0087-1F
Note:(Paralift Ultra/High Lift)–lift bag

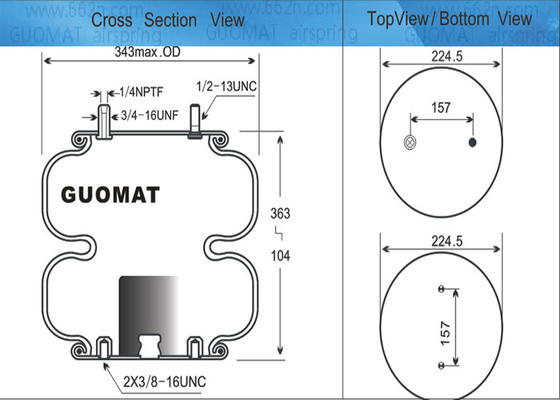

Nut / Blind Nut



Top Cover Plate Screw (Nut) Tooth : 1 pcs X 1/2-13UNC

Top Cover Plate Combination Nut : 3/4-16UNF

Screw Center Distance of Top Cover Plate : 157 mm / 6.2 inches

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 157 mm / 6.2 inches



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4NPT , Combination Stud/Air Inlet Stud



Cover Plate

Top Cover Plate Diameter (Width): 224.5 mm / 9.00 inches

Bottom Cover Plate Diameter (Width): 224.5 mm / 9.00 inches



Rubber Bellows

Rubber Bellows MAX Diameter : 343 mm / 9.7 inches

Compressed Height: 104 mm / 4.1 inches

Maximum Height: 363mm / 14.3 inches

Working Stroke : 259 mm / 10.2 inches



Bumper block / Buffer block

With Bumper Block



Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop





2B12-345 GUOMAT air spring. GUOMAT Air Springs offers new high productivity and long life for your trucks, trailers and buses. Bellow Air Springs offers a constant level of transportation and trouble-free service.

The 2B12-345 GUOMAT airbag protects cargo and provides horizontal transport and long-term service. Bellows air springs provide a quiet, cushioned ride and they are more durable than steel springs because of the low vibration. The driver is more comfortable, reduces fatigue and stays alert. Plus the cargo can better prevent shock and vibration.

GUOMAT NO. 2B12345
Air Spring 7545 AS-0087-1F 4514
Goodyear#: 2B12-345
Corrugation type: double
Automann Bellow#: SP2B22RB
Firestone Bellow#: 228C-1.5 is 228-1.5
Goodyear Bellow#:578-92-3-315
Contitech Bellow#: FD 331-26
Triangle Bellow#:N / A.
Base plate / Pison type:
Number of roof holes/studs: 2
Roof diameter: 9 inches
Top plate C to C diameter: 6.2 inches
Bottom hole stud Qyt: 2
Base plate diameter: 9 inches
Base plate C to C diameter: 6.2 inches
Backplane section#:
Base plate alignment: 90 degrees
Bumper: Yes
bracket:
Minimum height: 3.8 inches
Maximum height: 14.4 inches





Pictures show the information includes:



Technical data

Vibration isolation - dynamic characteristic values

Pneumatic application - static characteristic values



578-92-3-315 Industrial Air Spring Bellow FD331-26 514 Compressed Height 104 mm 2B12-345578-92-3-315 Industrial Air Spring Bellow FD331-26 514 Compressed Height 104 mm 2B12-345578-92-3-315 Industrial Air Spring Bellow FD331-26 514 Compressed Height 104 mm 2B12-345578-92-3-315 Industrial Air Spring Bellow FD331-26 514 Compressed Height 104 mm 2B12-345
