Place of Origin: | Guangdong,China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | 2B7555 |
Minimum Order Quantity: | 1pc |
---|---|
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union,Paypal or Others |
Supply Ability: | 1000pcs/week |
Material: | Steel Cover Plate , Rubber Bellows | Contitech: | FD 331-26 480, FD331-26480, FD33126480 |
---|---|---|---|
GoodYear Bellows#: | 578923315 / 578-92-3-315 | Gas Hole / Air Inlet: | 1/4-18NPT , Combination Stud/Air Inlet Stud |
Cover Plate Diameter (Width): | 224.5 Mm / 9.00 Inches | Compressed Height: | 104 Mm / 4.1 Inches |
Bottom Cover Plate Screw (Nut) Tooth: | 2 Pcs X 3/8-16UNC | GoodYear: | 2B12346, 2B12-440 |
Firestone: | W01-358-7555, W013587555 | ||
High Light: | air helper springs,air suspension parts |

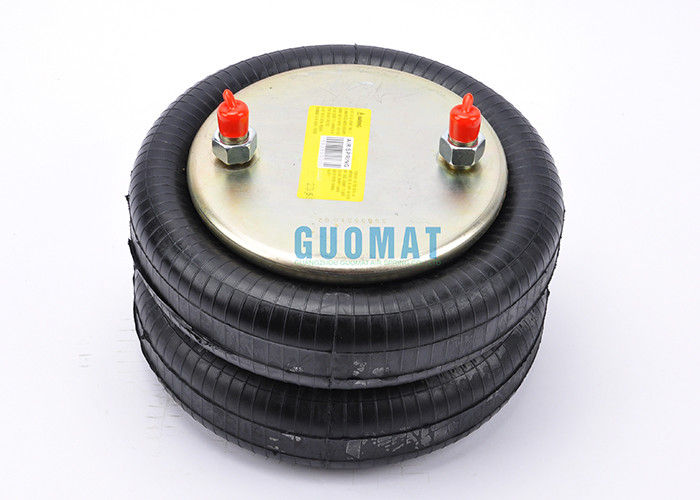

FD 331-26 480 Double Convoluted Air Bag 64284 For Histeer 10315
❶Nut/ Blind Nut
Top cover screw (nut) teeth: 1 X 1 / 2-13UNC
Top cover combination nut: 3 / 4-16UNF
Top cover screw center distance: 157 mm / 6.2 inches
Bottom cover screw (nut) teeth: 2 X 2X1 / 2-13UNC
Screw center distance of bottom cover: 157 mm / 6.2 inches
❷ air hole / air inlet / air connector
Stomatal / air inlet: 1 / 4-18NPT, combined stud / intake stud
❸ cover
Top cover diameter (width): 224.5 mm / 9.00 inches
Bottom cover diameter (width): 224.5 mm / 9.00 inches
❹Rubber bellows
Rubber bellows MAX diameter: 343 mm / 9.7 inches
Compressed height: 104 mm / 4.1 inches
Maximum height: 363 mm / 14.3 inches
Working stroke: 259 mm / 10.2 inches
❺ bumper block / buffer block
Bumper seat
Twisted waist/waist ring
Girdle Hoop: a belt hoop
Cross OEM References | OEM References |
Firestone : W01-358-7555 / W01 358 7555 / W013587555 | Firestone: 7450 |
Firestone Bellows Number: 228C-1.5 | Firestone: 7555 |
Contitech : FD 331-26 480 | Conti Tech: 64284 |
Goodyear : 2B12-440 / 2B12440 | Batco: 10-97450 |
Goodyear: 578923315 / 578-92-3-315 | Batco: 10-97555 |
Reyco : 20018-01 (86AR)/ 18813-01 | Reyco: 18813-01 |
Holland/Binkley: XB-SPN-053-37 | Reyco: 20018-01 |
Binkley XB-SPN-053-37 | UCF/Impex: AB-2B12-440 |
Brake&Wheel : M3531 | Dallas Spring: AS7555 |
Twthill : 1881301/2001801 | Sirco: AS-7555 |
Triangle Part Number:4480 | Midland/Haldex: CS212440 |
Triangle Bellows Number:6375 | Euclid/Meritor Aftermarket: E-FS7555 |
Euclid/Meritor Aftermarket: FS7555 | Conti Tech: FD331-26480 |
Leland: SC2676 |
GUOMAT Air Springs can last at least twice lifetime, always as much as four times longer than steel springs!
