Material: Steel Cover Plate , Rubber Bellows Contitech: FD 210-22 DS
Air Inlet: G1/2 Bolt: M8
Brand: GUOMAT Screw Center Distance: 181 Mm
High Light:

air helper springs

,

air suspension parts

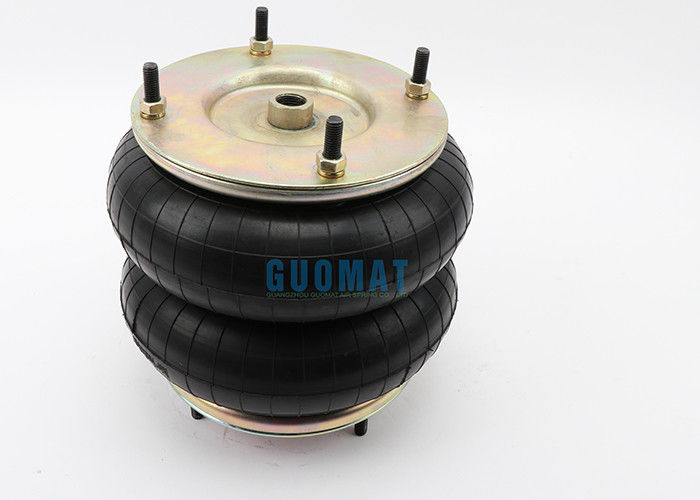

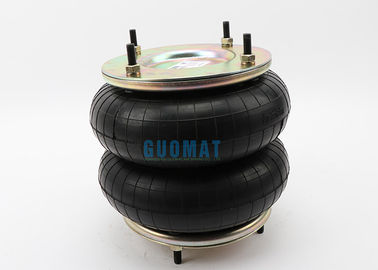

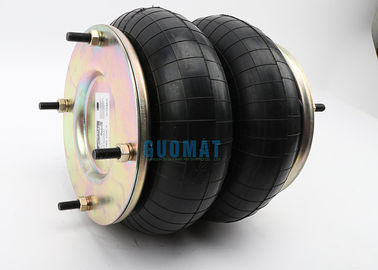

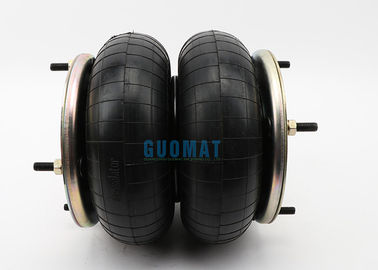

FD 210-22 DS Double Convolution Air Bag With Dismountable Plates, G1/2 Air Inlet





❶Nut/ Blind Nut


Top cover screw (nut) teeth: 4 X M8
Top cover screw center distance: 181 mm
Bottom cover screw (nut) teeth: 4 X M8
Bottom cover screw center distance: 181 mm



❷ air hole / air inlet / air connector
Air vent / air inlet: G1/2
Center distance between air inlet and nut:90.5 mm



❸ cover
Top cover diameter (width): 210 MM
Bottom cover diameter (width):210 MM



❹Rubber bellows


Rubber bellows natural diameter: 250 mm
Rubber bellows MAX diameter: 270 mm
Compressed height: 81 mm / 4.12 inches
Minimum bump height: 75 mm
Maximum height: 300 mm
Rubber bellows only:66993
Working stroke: 225



❺ bumper block / buffer block
No Bumper Block
Twisted waist/waist ring
Girdle Hoop: a belt hoop





Vibration isolation – dynamic characteristic values

Design height H: recommended 220mm, minimum 200mm



Pressure p [bar] 3 4 5 6 7 8 Vol. V [l] 8
Force (Load) [kN] 6.7 9.2 11.5 13.9 16.3 18.7   6.7
Spring rate [N/mm] 100 123.5 148 171 194.5 218.5 7.2 5.2
Natural frequency [Hz] 1.9 1.8 1.8 1.8 1.7 1.7   3.3







"Pneumatic application – static characteristic values
Force F [kN]"



Pressure p [bar]   3 4 5 6 7 8 Vol. V [l]
Height H [mm] 250 5.28 7.22 9.16 11.2 13.2 15.1 8
200 7.66 10.3 13 15.7 18.4 21.1 6.7
150 9.98 13.4 16.7 20.2 23.6 27 5.2
100 12.4 16.5 20.6 24.8 28.9 33 3.3
