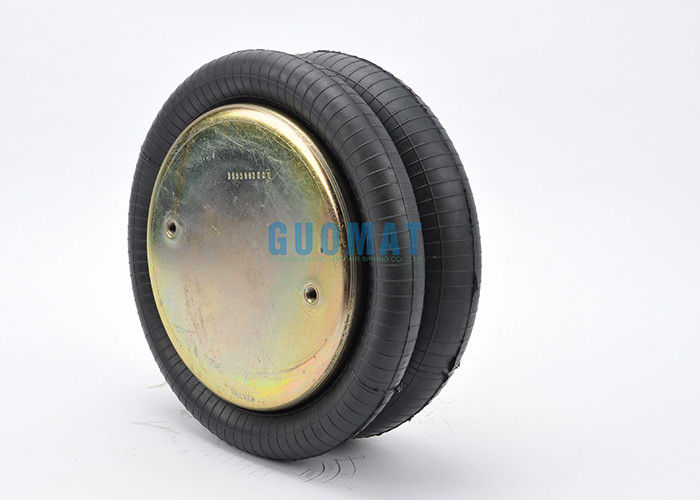

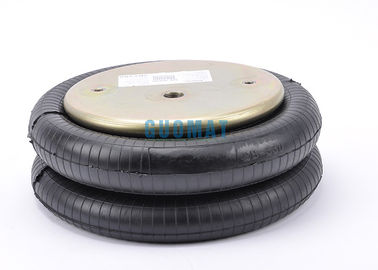

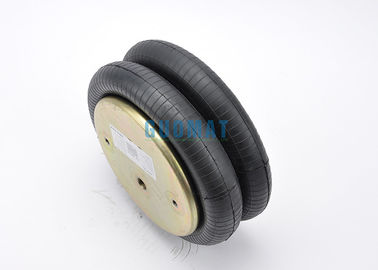

W01-358-7405 Industrial Air Spring For Arvin Meritor 200981 Truck Air Bag Suspension

W01-358-7405 Industrial Air Spring For Arvin Meritor 200981 Truck Air Bag Suspension

  • W01-358-7405 Industrial Air Spring For Arvin Meritor 200981 Truck Air Bag Suspension
  • W01-358-7405 Industrial Air Spring For Arvin Meritor 200981 Truck Air Bag Suspension
  • W01-358-7405 Industrial Air Spring For Arvin Meritor 200981 Truck Air Bag Suspension
  • W01-358-7405 Industrial Air Spring For Arvin Meritor 200981 Truck Air Bag Suspension
W01-358-7405 Industrial Air Spring For Arvin Meritor 200981 Truck Air Bag Suspension
Product Details:
Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B7405
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows Firestone: W01-358-7405
Goodyear: 2B12-459 GUOMAT: 2B7405
Assembly Weight:: 6.9 KG Gas Hole / Air Inlet :: 1/4-18NPTF
Top Cover Plate Diameter (Width): 231 Mm / 9.00 Inches Working Stroke: 224 Mm / 8.8 Inches
Box Size: 33*33*22 Cm
High Light:

convoluted air spring

,

air helper springs

W01-358-7405 Firestone Air Springs For Arvin Meritor 200981 Truck Air Bag Suspension





Cross OEM Reference



Air Spring Supplier: ContiTech Suspension supplier: Leland
Cross others/vendor number: FD33022364 Cross others/vendor number: SC2073

Air spring supplier: Goodyear Air suspension supplier: Navistar
Reference: 578923309 Cross others/vendor number: 1685177C1
Cross others/vendor number: 2B12313
  Air suspension supplier: SAF Netherlands
Air spring supplier: Goodyear Cross others/vendor number: 57007405
Cross others/vendor number: 2B12459
  Suspension supplier: Suspension Company
Air Spring Supplier: Triangle
Reference: 6316 Grounded Firestone: w013587405
Cross others/vendor number: 4364
  Suspension supplier: Hutchens
Air suspension supplier: Arvin Meritor Cross others/vendor number: H1038401
Cross others/vendor number: 200981

Air Spring Supplier: Dayton Parts
Cross others/vendor number: 3547405

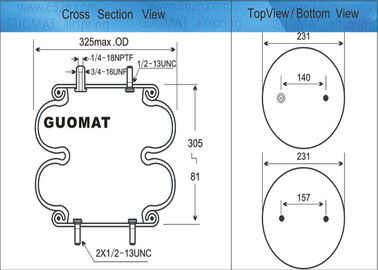

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 1 pcs X 3/4-16UNF

Screw Center Distance of Top Cover Plate : 140 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 1/2-13UNC

Screw Center Distance of Bottom Cover Plate : 157mm



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4-18NPTF

Center Distance Between air inlet and Nut : 140 mm

Air Inlet Combine With One Nut



Cover Plate

Top Cover Plate Diameter (Width): 231 mm / 9.00 inches

Bottom Cover Plate Diameter (Width): 231 mm / 9.00 inches

Top Cover Plate Number: 3235

Bottom Cover Plate Number: 3256



Rubber Bellows

Rubber Bellows MAX Diameter : 325 mm / 12.9 inches

Compressed Height: 81 mm / 4.12 inches

Minimum Jounce Height: 81mm / 4.12 inches

Design Height: 203 mm-241mm / 8-9.5 inches

Maximum Height: 305 mm / 12 inches

Bellows # NO.: 22

Working Stroke : 224 mm / 8.8 inches



Bumper block / Buffer block

Without Bumper Block



Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop



Assembly Weight: 6.9 kg





Manufacturer Cross OEM Reference Vehicle Cross OEM Reference

Firestone : W01-358-7405

Firestone : W01 358 7405

Firestone : W013587405

Leland : Sc2073

Contitech : FD 330-22 364

Contitech :FD 330 22 364

Contitech :FD 33022 364

Navistar : 1685177C1

Goodyear :2B12-313

Goodyear :2B12-459

Goodyear :2B12313

Goodyear :2B12459

Goodyear :2B12 313

Goodyear :2B12 459

Arvin Meritor : 200981

Goodyear Rubber Bellows :578923309

Goodyear Rubber Bellows :578-92-3-309

Goodyear Rubber Bellows :578 92 3 309

Hutchens : H-10384-01
Triangle Part Number:4364 SAF Holland : 57007405
Triangle Bellows Number:6316 Firestone Top Plate Number:3235
Dayton : 3547405 Firestone Piston Number:3256
Suspensions Inc. Number200981 Firestone Bellows Number:22




Pictures show the information includes:



Technical data

Vibration isolation - dynamic characteristic values

Pneumatic application - static characteristic values



W01-358-7405 Industrial Air Spring For Arvin Meritor 200981 Truck Air Bag Suspension 0



W01-358-7405 Industrial Air Spring For Arvin Meritor 200981 Truck Air Bag Suspension 1W01-358-7405 Industrial Air Spring For Arvin Meritor 200981 Truck Air Bag Suspension 2W01-358-7405 Industrial Air Spring For Arvin Meritor 200981 Truck Air Bag Suspension 3
