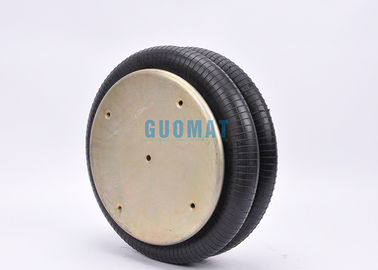

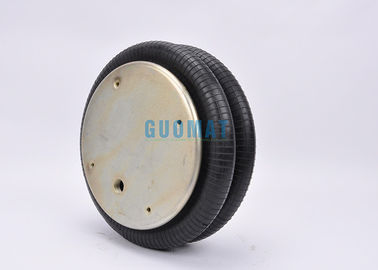

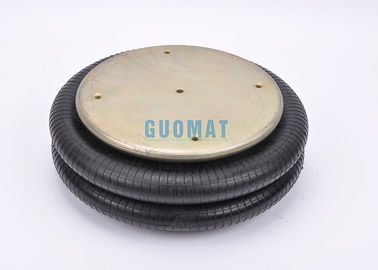

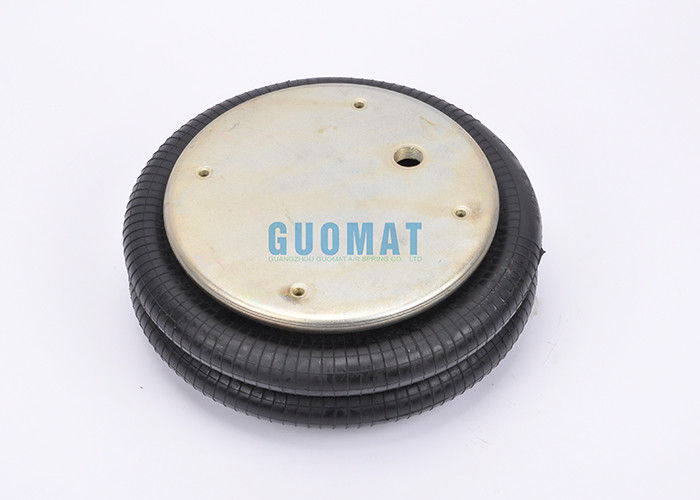

W01-358-7135 Industrial Air Spring Neway 90557001 Firestone Air Bag Kit

W01-358-7135 Industrial Air Spring Neway 90557001 Firestone Air Bag Kit

  • W01-358-7135 Industrial Air Spring Neway 90557001 Firestone Air Bag Kit
  • W01-358-7135 Industrial Air Spring Neway 90557001 Firestone Air Bag Kit
  • W01-358-7135 Industrial Air Spring Neway 90557001 Firestone Air Bag Kit
  • W01-358-7135 Industrial Air Spring Neway 90557001 Firestone Air Bag Kit
W01-358-7135 Industrial Air Spring Neway 90557001 Firestone Air Bag Kit
Product Details:
Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B53022
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel And Rubber Contitech: FD530-22
Warranty: 12 Months Weight: 6.9 Kg
Other Name: Air Suspension Bags Pressure Ability: 0.2-0.8 M Pa
Package Size: 38*38*22 Cm Firestone: W013587135
High Light:

convoluted air spring

,

air helper springs

Firestone W01-358-7135 Air Spring Neway 90557001 Air Spring Firestone Air Bag Kit





The installation of any components or kits should only be performed by personnel who have experience in installing and correctly operating vehicle systems. The person installing any component or kit is also responsible for determining the suitability of the component or kit for a particular application.
Manufacturers and distributors are not responsible for any misuse of these products. Be sure to use it according to the prompts and verify that the vehicle or equipment you are using is not suitable, because different vehicles and the equipment vary greatly. Any manufacturer and distributor are not responsible for any products you purchase here.





Technical Parameters of



Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 4 pcs X 1/2X1.75

Screw Center Distance of Top Cover Plate : 159 mm

Bottom Cover Plate Screw (Nut) Tooth :4 pcs X 1/2X1.75

Screw Center Distance of Bottom Cover Plate : 159 mm

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4NPT , Combination Stud/Air Inlet Stud

Cover Plate

Top Cover Plate Diameter (Width): 315 mm

Bottom Cover Plate Diameter (Width): 315 mm

Rubber Bellows

Rubber Bellows MAX Diameter : 395 mm

Maximum Height: 300 mm

Working Stroke : 90 mm

Bumper block / Buffer block

With Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop







OEM Original Equipment Manufacturer:



GUOMAT NO.:2B53022

NEWAY 90557001

SAF HOLLAND : 90557001
GRANNING : 15647
CONTITECH : FD 530-22 311
FIRESTONE : W01 358 7135
GOODYEAR : 2 B 14-360
OLD WUHLERMANN : 2RC-355-3C



Goodyear Bellows Number: 578-92-3-353
Goodyear Part Number: 2B14-360
Firestone Bellows Number: 21D
Firestone Part Number: W01-358-7135



Contitech No:FD530-22 311

Contitech No:FD530 22 311


FIRESTONE:21T2 W01-358-7135

FIRESTONE:21T2 W01 358 7135

FIRESTONE:21T2 W013587135


GOODYEAR:2B14-360

GOODYEAR:2B14360

GOODYEAR:2B14 360


GOODYEAR::556 22 8 554

GOODYEAR::556-22-8-554

GOODYEAR::556228554


Replaces: Neway 90557001, Pezzani AR-21-A, Ridewell 1003587135C, Silent Drive, Truckstell (Marion Mfg.) 63641, Truckstell (Marion Mfg.) 63644, and Hendrickson Can. B-12514-014



Maximum Diameter @ 100 PSIG (inches) 15.1 Material 2-Ply Standard Cord
Maximum Height (inches) 10.1 Design Height 9.5
Maximum Stroke (inches) 6.9 40 psig (pounds) 3030
Minimum Usable Height (inches) 3.2 60 psig (pounds) 4750
1 Inch (pounds) 10300 80 psig (pounds) 6540
3 Inch (pounds) 9310 Natural Frequency (@80 psig) (cpm) 105
Maximum Stroke (pounds) 5670 400 CPM % 92.6
Equivalent High Strength Style Number 205 800 CPM % 98.3
Extended Height (Similar End Closure) Style Number 21_́2 1500 CPM % 99.5

Manufacturer Part Number W01-358-7135 Material 2-Ply Standard Cord
Maximum Diameter @ 7 Bar (mm) 384 Design Height (mm) 241
Maximum Height (mm) 76 3 Bar (kN) 14.7
Maximum Stroke (mm) 180 5 Bar (kN) 35.2
Minimum Usable Height (mm) 257 7 Bar (kN) 36.9
25 mm (kN) 41.5 Natural Frequency (@5 Bar)(fn(Hz) 1.8
50% of Max Stroke (kN) 36.7 7 Hz 92.8
Maximum Stroke (kN) 22.9 13 Hz 98.3
High Strength Style Number 205 25 Hz 99.5
Extended Height (Similar End Closure) Style Number 21-2



W01-358-7135 Industrial Air Spring Neway 90557001 Firestone Air Bag Kit 0W01-358-7135 Industrial Air Spring Neway 90557001 Firestone Air Bag Kit 1W01-358-7135 Industrial Air Spring Neway 90557001 Firestone Air Bag Kit 2
