Steel Cover Plate Industrial Air Spring 2B5813 Air Ride Suspension Parts

Steel Cover Plate Industrial Air Spring 2B5813 Air Ride Suspension Parts

  • Steel Cover Plate Industrial Air Spring  2B5813 Air Ride Suspension Parts
  • Steel Cover Plate Industrial Air Spring  2B5813 Air Ride Suspension Parts
  • Steel Cover Plate Industrial Air Spring  2B5813 Air Ride Suspension Parts
  • Steel Cover Plate Industrial Air Spring  2B5813 Air Ride Suspension Parts
  • Steel Cover Plate Industrial Air Spring  2B5813 Air Ride Suspension Parts
Steel Cover Plate Industrial Air Spring  2B5813 Air Ride Suspension Parts
Product Details:
Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B5813
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows GUOMAT: 2B5813
Air Lift: 5813 Air Inlet: PT1/4
Screw: 3/8-16UNC Cover Plate DIA: 105.5 Mm
High Light:

convoluted air spring

,

air helper springs



Air Lift 2B5813 Air Ride Suspension Parts AIr Spring Replace The Steel Spring

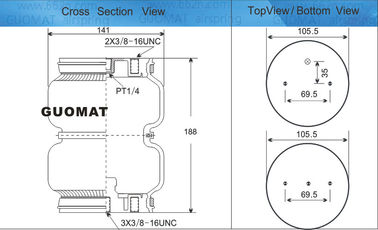

Product parameters:



Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 69.5 mm

Bottom Cover Plate Screw (Nut) Tooth :3 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 69.5 mm

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : PT1/4

Center Distance Between air inlet and Nut : 35 mm

Cover Plate

Top Cover Plate Diameter (Width): 105.5 mm

Bottom Cover Plate Diameter (Width): 105.5 mm



Rubber Bellows

Rubber Bellows Natural Diameter : 141 mm

Rubber Bellows MAX Diameter : 161 mm

Design Height: 188 MM



Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop





Product Description:



This is the GUOMAT air spring from AIR SPRING. The bellows air spring has one, two or three windings in the flexible member. Such double-turn airbags are commonly used in lift springs or axles for trucks and trailers, as pneumatic springs, and as actuators or insulators in industrial and commercial applications. The specifications of the 2B5813 will vary, but the double-curved GUOMAT bag has a crimp design and a sleeve bellows. They will provide similar features and functions, but the sleeve type permanently connects the end retainers by clamping the flexible member between the end retainer and the outer crimp ring.
