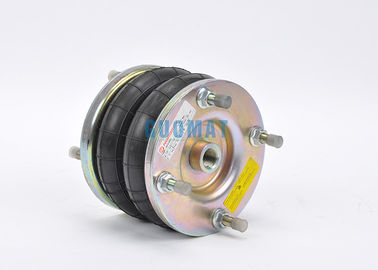

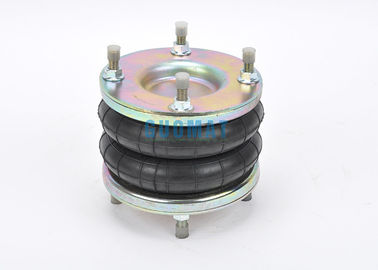

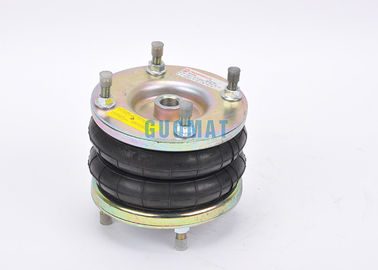

6X2 / 6"X2 Norgren Air Bellows Industrial Air Spring With Stamping Flange And Plate For Pulp Mill Equipment

6X2 / 6"X2 Norgren Air Bellows Industrial Air Spring With Stamping Flange And Plate For Pulp Mill Equipment

  • 6X2 / 6"X2 Norgren Air Bellows Industrial Air Spring With Stamping Flange And Plate For Pulp Mill Equipment
  • 6X2 / 6"X2 Norgren Air Bellows Industrial Air Spring With Stamping Flange And Plate For Pulp Mill Equipment
  • 6X2 / 6"X2 Norgren Air Bellows Industrial Air Spring With Stamping Flange And Plate For Pulp Mill Equipment
  • 6X2 / 6"X2 Norgren Air Bellows Industrial Air Spring With Stamping Flange And Plate For Pulp Mill Equipment
6X2 / 6"X2 Norgren Air Bellows Industrial Air Spring With Stamping Flange And Plate For Pulp Mill Equipment
Product Details:
Place of Origin: Guangdong,China
Brand Name: Norgren
Certification: ISO/TS16949:2009
Model Number: 6X2 / 6"X2
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows Bellows NO .: Springride DF 6 X 2
Firestone: W01-R58-4070 - (6 X 2 Alu ) Plate Dia.: 153.5mm
Max Dia.: 175mm Pressure Ability: 0.2-0.8 MPa
Air Inlet: G1/2 Stroke: 115mm
High Light:

air helper springs

,

air suspension parts

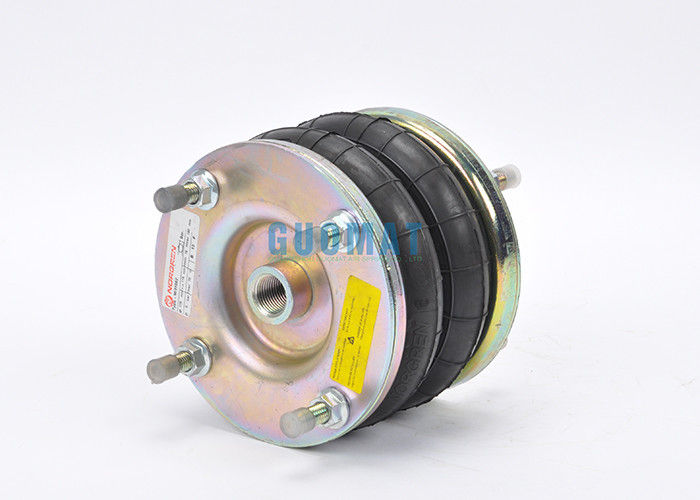

6X2 / 6"X2 Norgren Air Bellows Industrial Air Spring With Stamping Flange And Plate For Pulp Mill Equipment





Specifications and Detail Technical Parameters



Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth :  4pcs X M8



Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M8



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/2



Cover Plate

Top Cover Plate Diameter (Width): 153.5 mm



Bottom Cover Plate Diameter (Width): 153.5 mm



Material top and bottom plate:Aluminium



Rubber Bellows

Diameter max at 7 bar:175MM



Stroke of Rubber Bellows:80mm-195m



Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop



max load at 80 mm height and 8 bar:1415 daN





Double Convoluted Air Spring 2B180-115 D185

Double Convoluted Air Spring 2B180-115 D185

Replaces These Air Springs (Air Bellows)

ContiTech: FD 76-14 1/2 M10

ContiTech: FD 76-14 DS G1/2

ContiTech: FD 76-14 DS G1/2 CR

ContiTech: FD 76-14 DS CR G1/2

ContiTech: FD 76-14 DS CR / FD76-14DSCR / FD7614DSCR

ContiTech Bellow: FD 76-14 / FD76-14 / FD7614

Norgren: M/31062 / M 31062 / M31062

Nominal Ø (inch) x convolutions: 6″ x 2 / 6″x2 / 6×2

Dunlop FR: SP1482

Dunlop UK (Pneuride): PNP 30550 01 12 / PNP30550 0112





Other kinds of model air bellows:



W01R584081 (2 3/4" x3)
W01R584051 Dunlop Style 4,5 " x 2
W01R584052 (6" x1 steel)
Firestone W01R584057 (10 x1 steel)
Firestone W01R584027 8x2 (Epichlorhydrin / Herclor)
Firestone W01R584090 8"x2 Butyl
Firestone W01R584055 8x2 Steel
Firestone W01R584060 (12 x1 steel)
Firestone W01R584077 (12 x1 Herclor )
Firestone W01R584056 8"x3 Steel
Firestone W01R584062 (12 x3 Steel)
Firestone W01R584065 (14 1/2 x3 Steel)
Firestone W01R584098 (14 1/2 x1 Herclor)
Firestone W01R584097 (14" 1/2 x2 Herclor)
Firestone W01R584025 (10" x1 Epichlorhydrin/Herclor)
Firestone W01R584078 (6 x1 Alu )
Firestone W01R584070 (6 x 2 Alu )
Firestone W01R584053 (6 x 2 Steel )
Firestone W01R584059 (10" x3 steel)
Firestone W01R584054 8x1 Steel
Firestone W01R584028 8"x1 Epichlorhydrin
Spar Part Bellow 8"x2 W01R584045
Firestone W01R584064 14" 1/2 x2
Firestone W01R584063 14 1/2 x1
Bellow only 8" x 1 W01R584085
Firestone W01R584048
W01R584080 2 3/4" x 2
Firestone W01R584060 12" x2 steel
Firestone W01R584070 (6 x 2 V2a )
Firestone W01R584051E 4,5 x 2 Stainless Steel
Firestone W01R584050
W01R584080 2 3/4" x 1



Double Convolution Air Spring Calculation inquiry:
