W013583400 Firestone Rubber Air Spring Shock Bellows Number 224 0.2-0.8 M Pa Pressure Ability

W013583400 Firestone Rubber Air Spring Shock Bellows Number 224 0.2-0.8 M Pa Pressure Ability

  • W013583400 Firestone Rubber Air Spring Shock Bellows Number 224 0.2-0.8 M Pa Pressure Ability
  • W013583400 Firestone Rubber Air Spring Shock Bellows Number 224 0.2-0.8 M Pa Pressure Ability
  • W013583400 Firestone Rubber Air Spring Shock Bellows Number 224 0.2-0.8 M Pa Pressure Ability
  • W013583400 Firestone Rubber Air Spring Shock Bellows Number 224 0.2-0.8 M Pa Pressure Ability
  • W013583400 Firestone Rubber Air Spring Shock Bellows Number 224 0.2-0.8 M Pa Pressure Ability
W013583400 Firestone Rubber Air Spring Shock Bellows Number 224 0.2-0.8 M Pa Pressure Ability
Product Details:
Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B3400
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows Firestone: W013583400
Goodyear: 2B7-540 American Carrier: 8003-009
Assembly Weight:: 4.6 Lbs Maximum Diameter: 203mm
Pressure Ability: 0.2-0.8 M Pa Design Height: 75-230mm
High Light:

air helper springs

,

air suspension parts

W013583400 Firestone Rubber Air Spring Shocks Bellows Number 224​

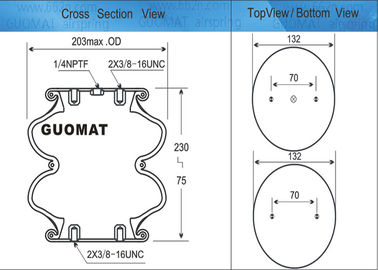

GUOMAT 2B3400 Data



❶Nut/ Blind Nut
Top cover screw (nut) teeth: 2 x 3 / 8-16UNC
Top cover screw center distance: 70 mm
Bottom cover screw (nut) teeth: 2 X 3 / 8-16UNC
Bottom cover screw center distance: 70 mm
❷ air hole / air inlet / air connector
Air vent / air inlet: 1 / 4 NPTF
Screw center distance between air vent and nut: 35 mm
❸ cover
Top cover diameter (width): 132 mm / 5.31 inches
Bottom cover diameter (width): 132 mm 5.31 inches
❹Rubber bellows
Rubber bellows MAX diameter: 203 mm
Working stroke: MIN 75 mm to MAX 230 mm
Maximum height: 230 mm
Minimum height (compression height): 75 mm / 2.75 inches
Stroke height: 155 mm
❺ bumper block / buffer block
No Bumper Block
Twisted waist/waist ring
Belt hoop: a band loop





GUOMAT 2B3400 Specifications



Firestone Top Plate Number: 3450

Firestone Piston Number: 3436

Firestone Bellows Number: 224

Goodyear Part Number: 2B7-540

Goodyear Part Number:2B7 540

Goodyear Part Number:2B7540

American Carrier Number: 8003-009

Firestone Part Number: W01-358-3400

Firestone Part Number:W01 358 3400

Firestone Part Number:W013583400

Firestone Order Number: W01-358-3400

Bellows #: 224

Assembly Weight: 4.6 lbs

Design Height: 6-7 inches

Loading Capacity at 20 psig: 342 lbsf

Loading Capacity at 60 psig: 1,026 lbsf

Loading Capacity at 90 psig: 1,539 lbsf

Maximum Diameter: 8 inches

Operating Temperature: 56Cº to -53Cº





GUOMAT 2B3400 Detail Data:



W013583400 Firestone Rubber Air Spring Shock Bellows Number 224 0.2-0.8 M Pa Pressure Ability 0

W013583400 Firestone Rubber Air Spring Shock Bellows Number 224 0.2-0.8 M Pa Pressure Ability 1W013583400 Firestone Rubber Air Spring Shock Bellows Number 224 0.2-0.8 M Pa Pressure Ability 2W013583400 Firestone Rubber Air Spring Shock Bellows Number 224 0.2-0.8 M Pa Pressure Ability 3
