| Material: | Steel Cover Plate , Rubber Bellows | Norgren: | 16X2 |
|---|---|---|---|
| Assembly Weight:: | 8 Kg | Natural Diameter: | 380 Mm |
| Pressure Ability: | 0.2-0.8 M Pa | Design Height: | 75-230mm |
| DIA OF PLATE: | 310MM | ||
| High Light: | air helper springs,air suspension parts |
||

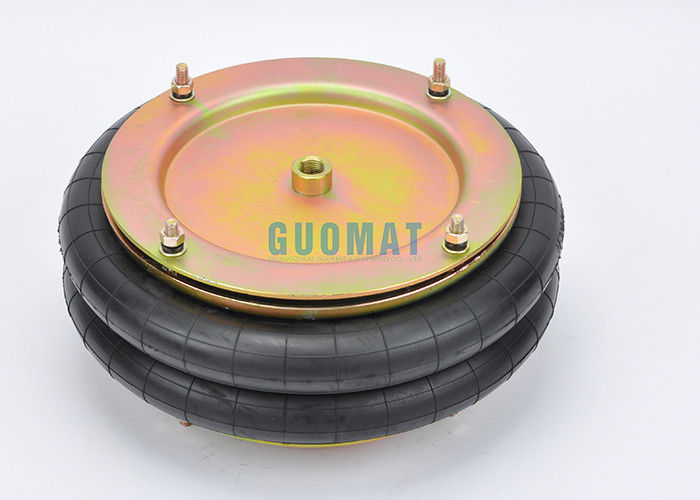

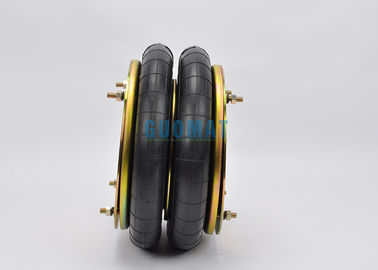

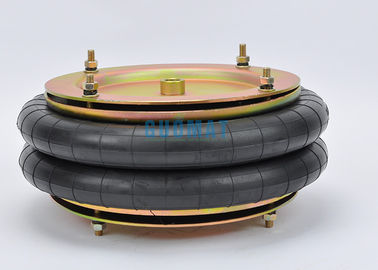

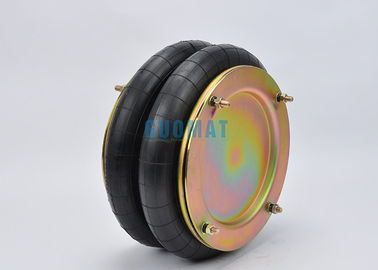

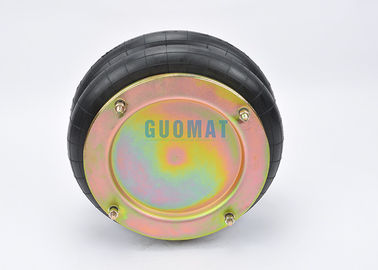

M / 31163 Norgren Rerfer to 16X2 Industrial Air Spring Bellows GUOMAT NO. FL320166-2 Without Buffer Block
M / 31163;16X2 Data:

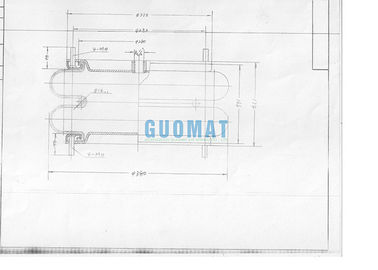

16X2 AIRSPRING
LOBES: 2
ø MAX: 430
STATIC HEIGHT: 180 MM
TOTAL STROKE: 243 MM
MAX ANGLE: 15º
MAX AXIAL OFFSET: 10 mm
øC: 283
ø SPACE ENVELOPES: 445 MM
LOAD IN daN: 9
MAX WORK PRESSURE: 8 BAR
BURST PRESSURE: 25 BAR
WEIGHT: 6.12 LBS
DIMENSIONS: 16" X 16" X 4"
Operation mode: Single actionStroke: 315 mmPort size: G1 / 2Nominal diameter: 16"Convolution number: 2
❶Nut/ Blind Nut
Top cover screw (nut) teeth: 4x M10
Top cover screw center distance: 282 mm
Bottom cover screw (nut) teeth: 4x M10
Bottom cover screw center distance: 282 mm
❷ air hole / air inlet / air connector
Air vent / air inlet: G1 / 2
❸ cover
Top cover diameter (width): 310MM
Bottom cover diameter (width): 310MM
❹Rubber bellows
Rubber bellows MAX diameter: 430 mm
Working stroke: 77 MM- 320 MM
Maximum height: 320 MM
Minimum height (compression height): 77 mm
Stroke height: 155 mm
❺ bumper block / buffer block
No Bumper Block
Twisted waist/waist ring
Belt hoop: a band loop
| GUOMAT NO. | Model | Nominal Ø (inch) x convolutions | Maximum stroke (mm) | Air Port size |
| 1B 2 3/4x 1 | M/31021 | 2 3/4“ x 1 | 20 | G1/4 |
| 2B 2 3/4x 2 | M/31022 | 2 3/4“ x 2 | 45 | G1/4 |
| 3B 2 3/4x 3 | M/31023 | 2 3/4“ x 3 | 65 | G1/4 |
| 1B 4 1/2x 1 | M/31041 | 4 1/2“ x 1 | 140 | G3/8 |
| 2B 4 1/2x 2 | M/31042 | 4 1/2“ x 2 | 280 | G3/8 |
| 1B 6x 1 | M/31061 | 6" x 1 | 155 | G1/2 |
| 2B 6x 2 | M/31062 | 6" x 2 | 155 | G1/2 |
| 1B 8x 1 | PM/31081 | 8" x 1 | 95 | G3/4 |
| 2B 8x 2 | M/31082 | 8" x 2 | 185 | G3/4 |
| 1B 9 1/4x 1 | M/31091 | 9 1/4” x 1 | 105 | G3/4 |
| 2B 9 1/4x 1 | M/31092 | 9 1/4“ x 1 | 230 | G3/4 |
| 1B 12x 1 | M/31121 | 12" x 1 | 105 | G3/4 |
| 2B 12x 2 | M/31122 | 12" x 2 | 215 | G3/4 |
| 3B 12x 3 | M/31123 | 12" x 3 | 315 | G3/4 |
