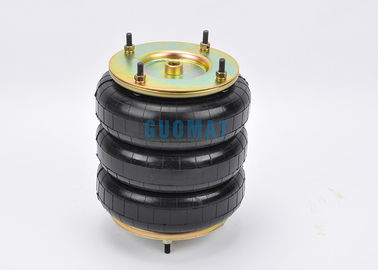

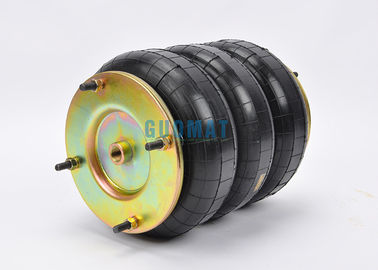

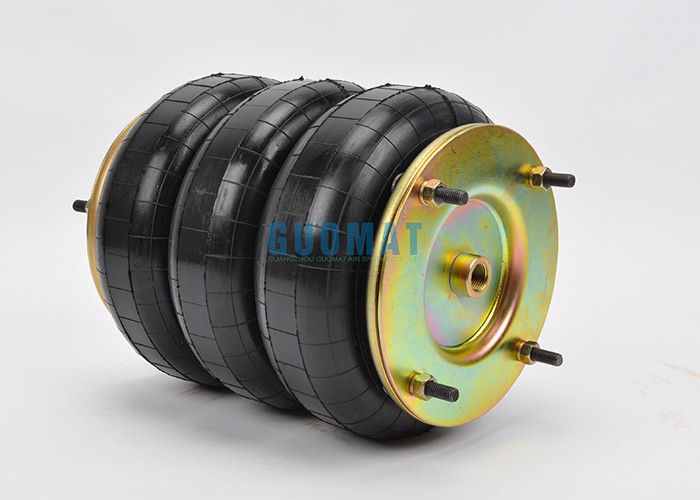

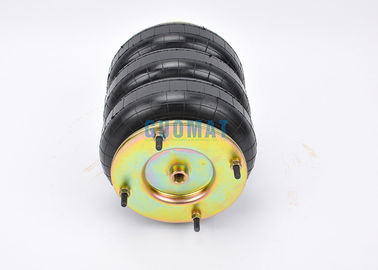

8X3 Steel Firestone Triple Convoluted Air Bag W01-R58-4056 GUOMAT 3B8X3

China 8X3 Steel Firestone Triple Convoluted Air Bag W01-R58-4056 GUOMAT 3B8X3 supplier
8X3 Steel Firestone Triple Convoluted Air Bag W01-R58-4056 GUOMAT 3B8X3 supplier 8X3 Steel Firestone Triple Convoluted Air Bag W01-R58-4056 GUOMAT 3B8X3 supplier 8X3 Steel Firestone Triple Convoluted Air Bag W01-R58-4056 GUOMAT 3B8X3 supplier 8X3 Steel Firestone Triple Convoluted Air Bag W01-R58-4056 GUOMAT 3B8X3 supplier

Large Image :  8X3 Steel Firestone Triple Convoluted Air Bag W01-R58-4056 GUOMAT 3B8X3

Product Details:

Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 3B8X3

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows GUOMAT NO.: 2B4056
Bellows NO .: 8"x 3 Firestone: W01R584056
Plate Dia.: 184 Mm Max Dia.: 175mm
Pressure Ability: 0.2-0.8 MPa Air Inlet: G1/2
Stroke: 240 Mm

8"x3 Steel Firestone W01-R58-4056 GUOMAT 3B8X3 Triple Convoluted Air Bag

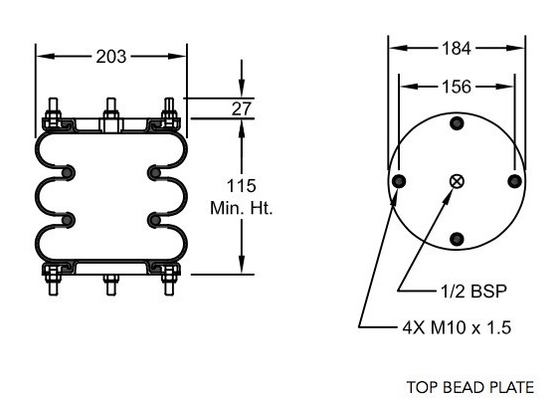

Specifications and Detail Technical Parameters:Style 8" x3



❶Nut/ Blind Nut
Top cover screw (nut) teeth: 4 X M10

Bottom cover screw (nut) teeth: 4 X M10

❷ air hole / air inlet / air connector
Air vent / air inlet: G1 / 2

❸ cover
Top cover diameter (width): 184 mm

Bottom cover diameter (width): 184 mm

Material top and bottom plate: steel

❹Rubber bellows
Maximum diameter 7 bar: 220MM

Rubber bellows stroke: 110mm-350m

❺ bumper block / buffer block
No Bumper Block
Twisted waist/waist ring
Belt loop: two belt loops

Maximum force at 25 mm and 5 bar 13,2 kN





Style 8" x3
Air intake centered G 1/2"
Bolt 4 x M10
Diameter top/bottom plate 184 mm
Maximum diameter 7 bar 220 mm
Minimum height 110 mm
Maximum height 350 mm
Stroke 240 mm
Maximum force at 25 mm and 5 bar 13,2 kN
Standard temperature of rubber materials up to -40 ° C to + 70 ° C





Other Norgen air springs models:



Model Nominal Ø (inch) x convolutions Maximum stroke (mm) Air Port size
PM/31021 2 3/4x 1 20 G1/4
PM/31022 2 3/4x 2 45 G1/4
PM/31023 2 3/4x 3 65 G1/4
PM/31041 4 1/2x 1 140 G3/8
PM/31042 4 1/2x 2 280 G3/8
PM/31061 6x 1 155 G1/2
PM/31062 6x 2 155 G1/2
PM/31081 8x 1 95 G3/4
PM/31082 8x 2 185 G3/4
PM/31091 9 1/4x 1 105 G3/4
PM/31092 9 1/4x 1 230 G3/4
PM/31121 12x 1 105 G3/4
PM/31122 12x 2 215 G3/4
PM/31123 12x 3 315 G3/4



8X3 Steel Firestone Triple Convoluted Air Bag W01-R58-4056 GUOMAT 3B8X38X3 Steel Firestone Triple Convoluted Air Bag W01-R58-4056 GUOMAT 3B8X38X3 Steel Firestone Triple Convoluted Air Bag W01-R58-4056 GUOMAT 3B8X3
