W013588008 Industrial Air Spring Bellows Steel And Rubber Material Number 38

China W013588008 Industrial Air Spring Bellows Steel And Rubber Material Number 38 supplier
W013588008 Industrial Air Spring Bellows Steel And Rubber Material Number 38 supplier W013588008 Industrial Air Spring Bellows Steel And Rubber Material Number 38 supplier W013588008 Industrial Air Spring Bellows Steel And Rubber Material Number 38 supplier W013588008 Industrial Air Spring Bellows Steel And Rubber Material Number 38 supplier W013588008 Industrial Air Spring Bellows Steel And Rubber Material Number 38 supplier

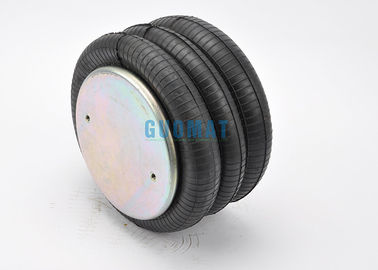

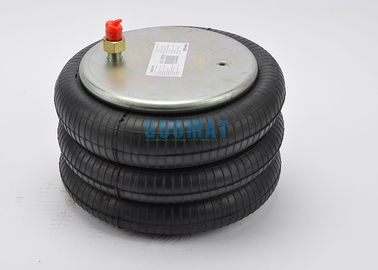

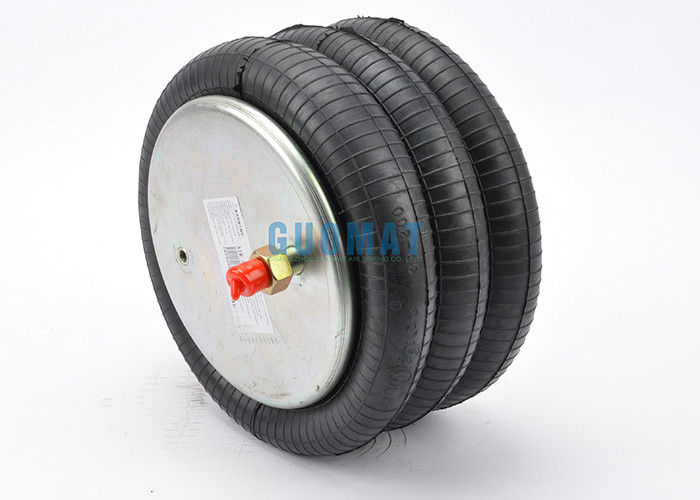

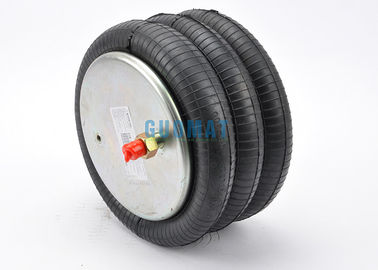

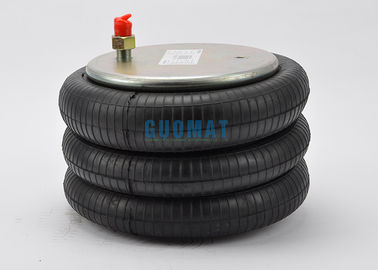

Large Image :  W013588008 Industrial Air Spring Bellows Steel And Rubber Material Number 38

Product Details:

Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 3B8008

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel And Rubber Contitech: FT 330-29 431
Warranty: 12 Months Weight: 7.0 Kg
Other Name: Air Suspension Spring Pressure Ability: 0.2-0.8 M Pa
Firestone: W01-358-8008 Dayton: 3548008

W013588008 Firestone Triple Convoluted Air Spring Bellows Number 38





3B8008 Technical parameters



Nut / Blind Nut



Top Cover Plate Screw (Nut) Tooth : 1pcsX3/8-16UNC

Top Cover Plate Screw (Nut) Tooth : 1pcsX3/4-16UNC

Screw Center Distance of Top Cover Plate : 140mm

Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 157.5mm



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF



Cover Plate

Top Cover Plate Diameter: 231 mm

Bottom Cover Plate Diameter: 231 mm



Rubber Bellows

Rubber Bellows MAX Diameter: 330 mm

Rubber Bellows Natural Diameter :300 mm

The Working Stroke : MAX 460 mm to MIN 130 mm

Maximum Height : 460 mm

Minimum Height :130 mm

Compression Height : 330 mm



Bumper block / Buffer block

Without Bumper Block



Girdle Hoop / Girdle Ring

With Girdle Hoop :Two Pieces of Girdle Hoop





OEM Original Equipment Manufacturer:



BELLOW NO. COMPLETE NO. COMPLETE NO. COMPLETE NO.
Airspring Supplier: Goodyear Airspring Supplier: ContiTech Air Suspension Supplier EZ Ride Air Suspension Supplier Leland
Reference: 578933100 Number: FT33029431   Other OEM Supplier Number: SC2130
Firestone Bellows Number:38 Other OEM Supplier Number: 3B12300 Air Suspension Supplier Hendrickson
    Other OEM Supplier Number: NS501690 Air Suspension Supplier SAF Holland
  Airspring Supplier: Triangle Firestone Airspring Style: 38 Other OEM Supplier Number: 57008008
  Reference: 6334
  Other OEM Supplier Number: 4431 Air Suspension Supplier Hendrickson Air Suspension Supplier Ridewell
    FSIP OEM: W014558008 Other OEM Supplier Number: 1003588008C
  Airspring Supplier: Dayton Parts Air Suspension Supplier Hendrickson Trailer Air Suspension Supplier Silent Drive
  Other OEM Supplier Number: 3548008 Other OEM Supplier Number: S11637
      Air Suspension Supplier Tuthill Technology
  Air Suspension Supplier EZ Ride Air Suspension Supplier Histeer Other OEM Supplier Number: 6392
  Other OEM Supplier Number: 8030155
  Air Suspension Supplier Watson & Chalin Air Suspension Supplier Langes Air Suspension Supplier Watson & Chalin
  Suspension Number: WCSL1400SRR Suspension Number: WCSL1100LR Other OEM Supplier Number: AS0019

  Air Suspension Supplier Watson & Chalin Air Suspension Supplier Watson & Chalin Air Suspension Supplier Watson & Chalin
  Suspension Number: WCLWSL1100LW Suspension Number: WCSL1100SR FSIP OEM: W01W208008

  Air Suspension Supplier Watson & Chalin Air Suspension Supplier Watson & Chalin Air Suspension Supplier Watson & Chalin
  Suspension Number: LWSL1100SSRLW Suspension Number: WCSL1100SSR Suspension Number: WCAL1200IS

  Firestone Trimmed: w013588008 Air Suspension Supplier Watson & Chalin Air Suspension Supplier Watson & Chalin
  Suspension Number: WCSL1400SR Suspension Number: WCSL1100LP

    Air Suspension Supplier Watson & Chalin



W013588008 Industrial Air Spring Bellows Steel And Rubber Material Number 38W013588008 Industrial Air Spring Bellows Steel And Rubber Material Number 38W013588008 Industrial Air Spring Bellows Steel And Rubber Material Number 38
