FT 330-29 432 Steel Cover Plate Industrial Air Spring For Ridewell 1003588010C

China FT 330-29 432 Steel Cover Plate Industrial Air Spring For Ridewell 1003588010C supplier
FT 330-29 432 Steel Cover Plate Industrial Air Spring For Ridewell 1003588010C supplier FT 330-29 432 Steel Cover Plate Industrial Air Spring For Ridewell 1003588010C supplier FT 330-29 432 Steel Cover Plate Industrial Air Spring For Ridewell 1003588010C supplier FT 330-29 432 Steel Cover Plate Industrial Air Spring For Ridewell 1003588010C supplier

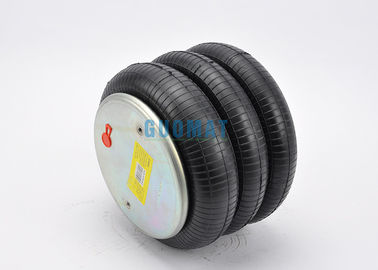

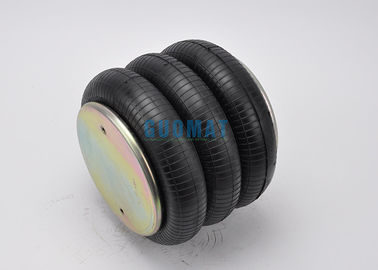

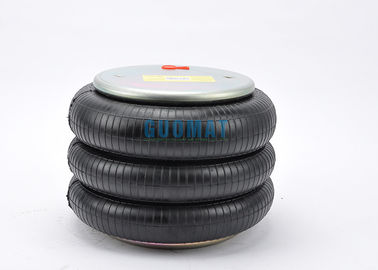

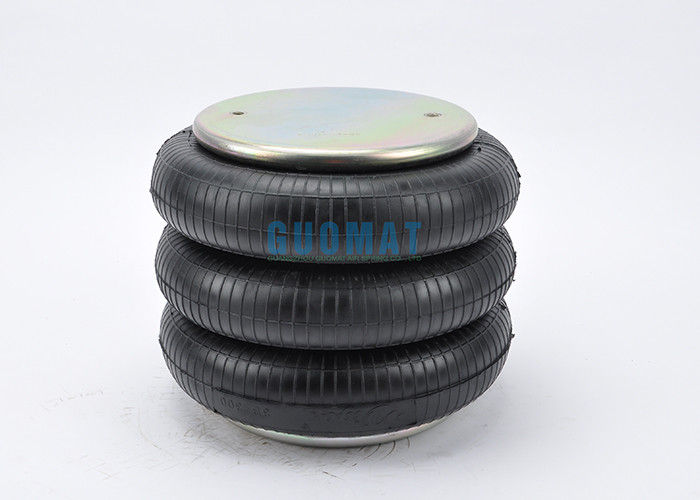

Large Image :  FT 330-29 432 Steel Cover Plate Industrial Air Spring For Ridewell 1003588010C

Product Details:

Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 3B8010

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows Contitech: FT 330-29 432
Gas Hole: 1/4NPTF Two Pillars Stick Nuts: 3/8 UNC
Screw Center Distance: 157.5 Mm Cover Plate Diameter: 231mm
Pressure Ability: 0.2-0.8 M Pa Natural Height: 297 Mm

FT 330-29 432 Contitech Air Spring For Ridewell 1003588010C





GUOMAT NO. 3B8010​ Technical Parameters





Compressed Height: 4.20 inches/ 107MM

Top Plate Number:3215

Top Plate Width:9.00 inches / 231MM

Piston Number:3183

Piston Width:9.00 inches / 231MM

Firestone Bellows Number:38

Goodyear Part Number:3B12-301

Goodyear Part Number:3B12 301

Goodyear Part Number:3B12301

Goodyear Bellows Number:578-93-3-100

Goodyear Bellows Number:578933100

Triangle Part Number:4432

Triangle Bellows Number:6334

Ridewell Number:1003588010C





Nut / Blind Nut



Top Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

Top Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

Screw Center Distance of Top Cover Plate : 157.5mm

Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 157.5mm



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF



Cover Plate

Top Cover Plate Diameter: 231 mm

Bottom Cover Plate Diameter: 231 mm



Rubber Bellows

Rubber Bellows MAX Diameter: 330 mm

Rubber Bellows Natural Diameter :300 mm

The Working Stroke : MAX 460 mm to MIN 130 mm

Maximum Height : 460 mm

Minimum Height :130 mm

Compression Height : 330 mm



Bumper block / Buffer block

Without Bumper Block



Girdle Hoop / Girdle Ring

With Girdle Hoop :Two Pieces of Girdle Hoop







CONTITECH FT 330-29 Cross others OEM



BELLOW Numbers COMPLETE NO. COMPLETE Numbers
AIRKRAFT 116008 AIRKRAFT 115033 AIRKRAFT 115027
FIRESTONE FLEX 38R/38D CONTITECH FT 330-29 773 CONTITECH FT 330-29 430
FIRESTONE 095.0047 FIRESTONE W01-358-8013 FT 330-29 498
GOODYEAR FLEX 556 3 3 8334 GOODYEAR 3B12-305 FT 330-29 503
578 93 3 100 AIRKRAFT 115035 FT 330-29 702
  CONTITECH FT 330-29 432 FIRESTONE W01 358 8006
  FIRESTONE W01-358-8010 W01 358 8030
  GOODYEAR 3B12-301 GOODYEAR 3B12-304





Other kinds of FT 330 29 that GUOMAT have:



GUOMAT NO. Reference Order NO. Force (lbs) Max OD (in) Design height(in) Height Narural frequ.[cpm]
80 psi 100 psi Min MAX
FT 330 29 413 FT 330-29 413 161343 5040 6300 12.9 12 4.1 18.1 78
FT 330 29 430 FT 330-29 430 161344 5040 6300 12.9 12 4 18.1 78
FT 330 29 431 FT 330-29 431 161345 5040 6300 12.9 12 4.1 18.1 78
FT 330 29 432 FT 330-29 432 161346 5040 6300 12.9 12 4.1 18.1 78
FT 330 29 433 FT 330-29 433 161347 5040 6300 12.9 12 4.1 18.1 78
FT 330 29 434 FT 330-29 434 161031 5040 6300 12.9 12 4.1 18.1 78
FT 330 29 466 FT 330-29 466 161348 4760 5950 12.9 12 4.1 18.1 78
FT 330 29 469 FT 330-29 469 161349 4760 5950 12.9 12 4.1 18.1 78
FT 330 29 498 FT 330-29 498 161350 5040 6300 12.9 12 4 18.1 78
FT 330 29 503 FT 330-29 503 161351 5040 6300 12.9 12 4.1 18.1 78
FT 330 29 508 FT 330-29 508 161352 4760 5950 12.9 12 4.1 18.1 78
FT 330 29 520 FT 330-29 520 161353 4760 5950 12.9 12 4.1 18.1 78
FT 330 29 525 FT 330-29 525 161354 4760 5950 12.9 12 4.1 18.1 78
FT 330 29 546 FT 330-29 546 161355 4760 5950 12.9 12 4.1 18.1 78
FT 330 29 547 FT 330-29 547 161356 4760 5950 12.9 12 4.1 18.1 78
FT 330 29 548 FT 330-29 548 161357 4760 5950 12.9 12 4.1 18.1 78





FT 330-29 432 Steel Cover Plate Industrial Air Spring For Ridewell 1003588010CFT 330-29 432 Steel Cover Plate Industrial Air Spring For Ridewell 1003588010C

FT 330-29 432 Steel Cover Plate Industrial Air Spring For Ridewell 1003588010C
