| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 3B8027 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel And Rubber | Firestone: | W01-358-8027 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 7.0 Kg |
| Other Name: | Air Suspension Spring Bags | Pressure Ability: | 0.2-0.8 M Pa |
| Histeer: | 200117 | Goodyear: | 3B12-310 |
| Package Size: | 33*33*22 Cm | ||
| High Light: | air helper springs,air suspension parts |
||

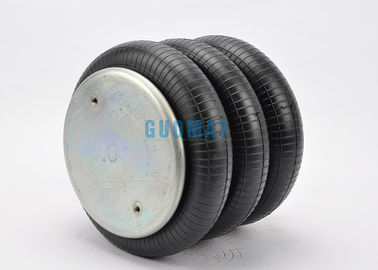

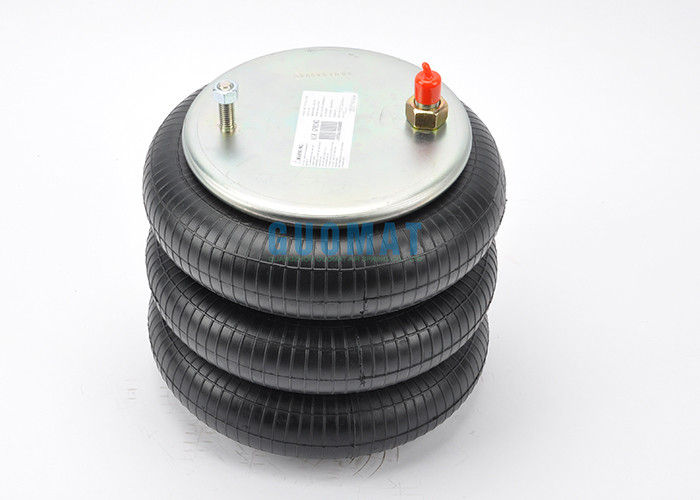

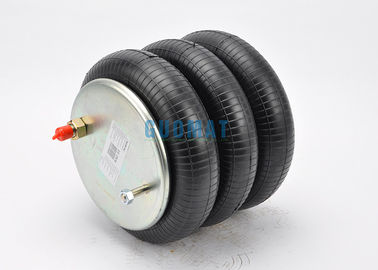

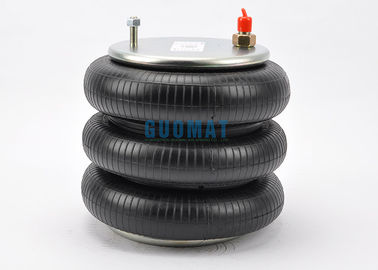

W01-358-8027 Triple Convoluted Air Bag Firestone Air Spring Histeer Number 200117
OEM Original Equipment Manufacturer:
GUOMAT Part NO. 3B8027
Air spring Supplier: ContiTech Number:FT33029466,FT330-29 466
Air spring Supplier: Contitech: 64565
Air spring Supplier: Goodyear Bellows Number: 578933100;578-93-3-100,
Air spring Supplier: Goodyear Complete Number: 3B12310,3B12-310
Air spring Supplier: Triangle Bellows Number: 6334
Air spring Supplier: Triangle Complete Number: 4466
Suspension Supplier: Arvin Meritor Number: 200117
Suspension Supplier: Histeer Number:200117
Histeer 8029.
Suspension Supplier: Silent Drive
Firestone Trimmed: W013588027,W01-358-8027, W01 358 8027
Firestone Trimmed:W01-358-8029,W013588029,W01 358 8029
Firestone :8027
Air spring Supplier: Automann Number:ABSP3B22R-8027
Dallas AS8027
Euclid E-FS8027
Euclid FS8027

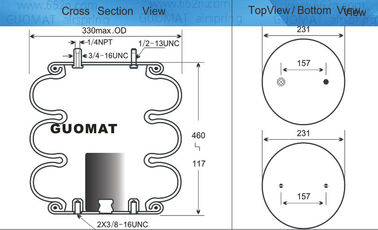

GUOMAT NO. 3B8027 Technical parameters
Piston width: 9.00 inches
Number of Firestone bellows: 38
Triangle part number: 4466
Number of triangular bellows: 6334
Suspensions Inc. No. 200117
Compressed height: 4.55 inches
Top plate number: 3271
Top plate width: 9.00 inches
Piston No.: 3183
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 1pcsX1/2-13UNC
Top Cover Plate Screw (Nut) Tooth : 1pcsX3/4-16UNC
Screw Center Distance of Top Cover Plate : 157 mm
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 157 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF
❸ Cover Plate
Top Cover Plate Diameter: 231 mm
Bottom Cover Plate Diameter: 231 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 330 mm
Rubber Bellows Natural Diameter :300 mm
The Working Stroke : MAX 460 mm to MIN 130 mm
Maximum Height : 460 mm
Minimum Height :130 mm
Compression Height : 330 mm
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :Two Pieces of Girdle Hoop
