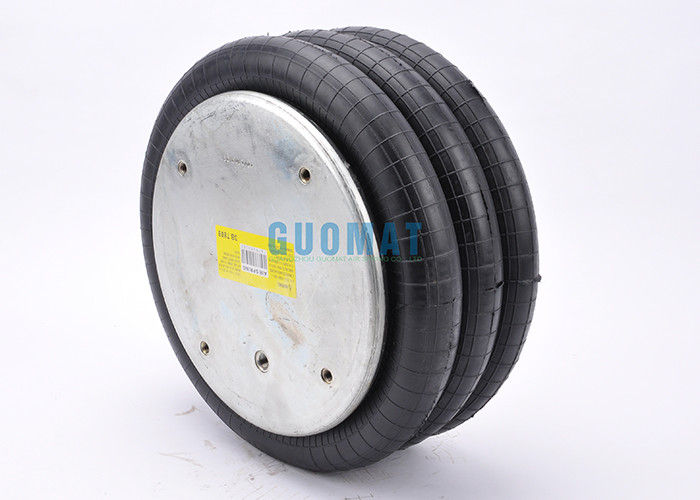

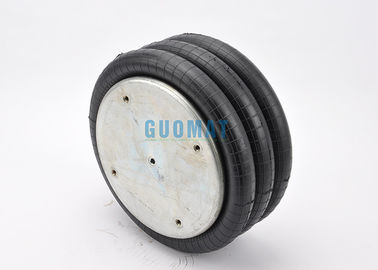

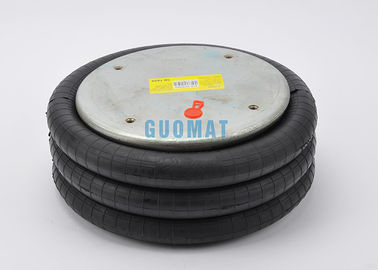

3B14-354 Industrial Air Spring Goodyear Bellows Number 578-93-3-350

3B14-354 Industrial Air Spring Goodyear Bellows Number 578-93-3-350

  • 3B14-354 Industrial Air Spring Goodyear Bellows Number 578-93-3-350
  • 3B14-354 Industrial Air Spring Goodyear Bellows Number 578-93-3-350
  • 3B14-354 Industrial Air Spring Goodyear Bellows Number 578-93-3-350
  • 3B14-354 Industrial Air Spring Goodyear Bellows Number 578-93-3-350
3B14-354 Industrial Air Spring Goodyear Bellows Number 578-93-3-350
Product Details:
Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 3B7808
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel And Rubber Goodyear: 3B14-354
Warranty: 12 Months Weight: 8.0 Kg
Other Name: Air Suspension Parts Pressure Ability: 0.2-0.8 M Pa
Goodyear Bellows Number: 578-93-3-350 Package Size: 38*38*22 Cm
High Light:

air helper springs

,

air suspension parts

Goodyear 3B14-354 Industrial Air Spring Goodyear Bellows Number 578-93-3-350





GUOMAT NO. 3B7808 Technical parameters



Nut / Blind Nut



Top Cover Plate Screw (Nut) Tooth : 4pcsX3/8-16UNC

Screw Center Distance of Top Cover Plate : 158.8 mm

Bottom Cover Plate Screw (Nut) Tooth : 4pcsX3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 158.8 mm



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF



Cover Plate

Top Cover Plate Diameter: 289 mm

Bottom Cover Plate Diameter: 289 mm



Rubber Bellows

Rubber Bellows MAX Diameter: 356 mm

Rubber Bellows Natural Diameter :282 mm

Design Height: 9-13 inches / 229mm-330mm

Maximum Height : 460 mm



Bumper block / Buffer block

With Bumper Block



Girdle Hoop / Girdle Ring

With Girdle Hoop :Two Pieces of Girdle Hoop



OEM Original Equipment Manufacturer:



Product Specs for Firestone W013587808

Technical Specs: Firestone W01-358-7808
Compressed Height: 4.00
Top Plate Number:3131 or 3134
Top Plate Width:11.31
Piston Number:3130
Piston Width:11.31
Firestone Bellows Number:313
Goodyear Part Number:3B14-354 /3B14 354
Goodyear Bellows Number:578-93-3-350 /578 93 3 350 / 578933350
Triangle Part Number:4336
Triangle Bellows Number:6319
Ridewell Number:1003587808C
EZ Ride Number8030170
Note:PEERLESS 0550-00030



AUTOMANN TRIANGLE
ABSP3B32R-7808 8030170
PEERLESS 4336
0550-00030 FIRESTONE
CONTI TRP
RIDEWELL 7808 W013587808
64506 AS78080
FT 530-32 336 INT’L/NAVISTAR
1003587808C S-4830-C 63640
E-Z RIDE 554801C1
  LOAD GUARD
  SC2031



Contitech FT 530-32 364

Firestone Style 313
Firestone No. W01-358-7808
FleetPride AS7808
Goodyear 3B14-354
Goodyear Flex No. 578933350
Taurus 6319
Triangle AS-4336
TRP AS78080
Automann SP3B32R-7808



The usal kinds of Double Convolution Air Springs



Triple Convolution Air Actuator
All Measurements Are In Mm
GUOMAT NO. Contitech NO. Min. Design height Installation Space Required Max. Stroke
3B33029 FT 330-29 110 345 320
3B43032 FT 430-32 115 355 315
3B53032 FT 530-32 110 410 325
3B53035 FT 530-35 115 430 395
3B96034 FT 960-34 120 510 335
3B133035 FT 1330-35 120 570 350





Air Spring Installation

  • Before you start installing air springs, make sure you have all the necessary tools and equipment to perform the repair safely.
  • Familiarize yourself with the suspension on which you are performing the repair by reviewing the manufacturers service guide.
  • If you are in doubt about something, ask for assistance from a qualified suspension specialist, the suspension manufacturer or the air spring manufacturer; This can save you a lot of time and aggravation later in the job.



Our Advantages

  • Long lasting service on almost all truck and trailer air suspensions
  • Absorb road shock to help tractors and rigs last longer
  • Cut down on vibration and driver fatigue
  • Long, trouble free service, constant level hauling, quite cushioned ride
  •
  • 3B14-354 Industrial Air Spring Goodyear Bellows Number 578-93-3-350 0
  • 3B14-354 Industrial Air Spring Goodyear Bellows Number 578-93-3-350 13B14-354 Industrial Air Spring Goodyear Bellows Number 578-93-3-350 2



Other kinds of GUOMAT 3B14- air spring:





57893235100000 20094982 Y 3B14-351 3B14-351
3B14-351 20094983 N 3B14-351 Bellows Air Spring 3B14-351 Bellows Air Spring
57893235100019 20094985 Y ENIDINE YI-3B14-351 ENIDINE YI-3B14-351
57893235300000 20094994 Y 3B14-353 3B14-353
57893235300004 20116539 Y 3B14-353 3B14-353
57893235300019 20094995 Y ENIDINE YI-3B14-353 ENIDINE YI-3B14-353
57893235400000 20094996 Y 3B14-354 3B14-354
3B14-354 20035822 N 3B14-354 Bellows Air Spring 3B14-354 Bellows Air Spring
57893235400019 20095000 Y ENIDINE YI-3B14-354 ENIDINE YI-3B14-354
57893235600000 20095005 Y 3B14-356 3B14-356
3B14-356 20035823 N 3B14-356 Bellows Air Spring 3B14-356 Bellows Air Spring
57893235900000 20095014 Y 3B14-359 TUTHILL 1014 3B14-359 TUTHILL 1014
3B14-359 20035824 N 3B14-359 Bellows Air Spring 3B14-359 Bellows Air Spring
57893236000000 20095024 Y 3B14-360 3B14-360
3B14-360 20035825 N 3B14-360 Bellows Air Spring 3B14-360 Bellows Air Spring
57893236100000 20095031 Y 3B14-361 3B14-361
3B14-361 20116540 N 3B14-361 Bellows Air Spring 3B14-361 Bellows Air Spring
57893236100019 20095032 Y ENIDINE YI-3B14-361 ENIDINE YI-3B14-361
57893236400000 20095038 Y 3B14-364 3B14-364
3B14-364 20035826 N 3B14-364 Bellows Air Spring 3B14-364 Bellows Air Spring
57893236500000 20095044 Y 3B14-365 3B14-365
3B14-365 20095045 N 3B14-365 Bellows Air Spring 3B14-365 Bellows Air Spring
57893236700000 20095046 Y 3B14-367 3B14-367
3B14-367 20035827 N 3B14-367 Bellows Air Spring 3B14-367 Bellows Air Spring
57893237000000 20095053 Y 3B14-370 3B14-370
57893237300000 20095056 Y 3B14-373 HENDRICKSON 001285 3B14-373 HENDRICKSON 001285
57893237400000 20095057 Y 3B14-374 3B14-374
57893237400004 20116868 Y 3B14-374 3B14-374
57893237400019 20095058 Y ENIDINE YI-3B14-374 ENIDINE YI-3B14-374
