W01-358-6946 Firestone Industrial Air Springs With Two Pillars For Leland Sc2126

China W01-358-6946 Firestone Industrial Air Springs With Two Pillars For Leland Sc2126 supplier
W01-358-6946 Firestone Industrial Air Springs With Two Pillars For Leland Sc2126 supplier W01-358-6946 Firestone Industrial Air Springs With Two Pillars For Leland Sc2126 supplier W01-358-6946 Firestone Industrial Air Springs With Two Pillars For Leland Sc2126 supplier

Large Image :  W01-358-6946 Firestone Industrial Air Springs With Two Pillars For Leland Sc2126

Product Details:

Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B6274

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Iron Plate , Rubber Bellows Firestone: W01-358-6946
Gas Hole: 1/4NPTF Two Pillars Nuts: 2X1/2-13UNC
Screw Center Distance: 86 Mm Cover Plate Diameter: 160 Mm
Pressure Ability: 0.2-0.8 M Pa Stroke: 95-325 Mm
Two Blind Nuts: 2X3/8-16UNC

W01-358-6946 Firestone Industrial Air Spring With Two Pillars For Leland Sc2126

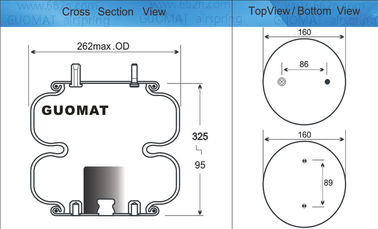

GUOMAT 2B6946 Specifications and Technical Data



Compressed Height: 3.12 inches /

Top Cover Plate Diameter: 6.31 inches / 160mm

Bottom Cover Plate Diameter: 6.31 inches / 160mm

Screw Center Distance : 89 mm

Distance Gas Hole Between Nut: 44.5 mm

Top Cover Plate Screw (Nut) Tooth : 2X1/2-13UNC

Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

One hole in the middle of the Bottom Cover Plate:10.3

Rubber Bellows MAX Diameter: 262 mm

The Working Stroke : MAX 325 mm to MIN 95 mm

Gas Hole / Air inlet : 1/4 NPTF

Firestone Bellows Number: 20-2

Goodyear Bellows Number: 578-92-3-206 / 578923206 / 578 92 3 206

Bellows NO.: 20-2

Assembly Weight: 8.1 lbs

Design Height: 9-11 inches

Loading Capacity at 20 psig: 648 lbsf

Loading Capacity at 60 psig: 1,944 lbsf

Loading Capacity at 90 psig: 2,916 lbsf

Maximum Diameter: 10.4 inches

Operating Temperature: 56Cº to -53Cº





Goodyear: 2B6946 Cross others OEM



GUOMAT NO.2B6946

Firestone:W01-358-6946

Firestone:W01 358 6946

Firestone:W013586946
Contitech : FD 200-25 463

Contitech :FD200-25 463

Contitech :FD20025 463
Goodyear: 2B9-254

Goodyear:2B9254

Goodyear:2B9254
Goodyear Bellows: 578-92-3-206

Goodyear Bellows:578 92 3 206

Goodyear Bellows:578923206
Triangle: 6332/4427
Leland : Sc2126
Ridewell:1003586946C





Description and application Of GUOMAT 2B6946 air spring:

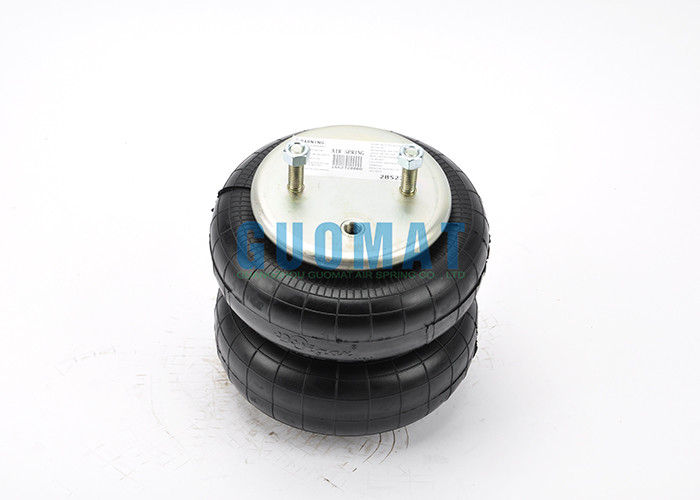

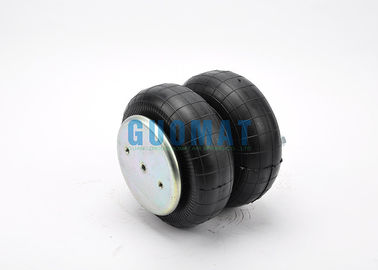

This kind of GUOMAT 2B6946 that has two Two Pillars Nuts at the top of the Cover Plate And Two Blind Nuts at the bottom of the Cover Plate. one Gas Hole / Air inlet 1/4 NPTF at the side of the top of the cover plate.This air spring can be used on trailers for retrofitting. At the same time can be used in many industrial equipment.It is very convenient to install.





Details Technical data at the below photo

Vibration isolation - dynamic characteristic values

Pneumatic application - static characteristic values Force F [kN]



W01-358-6946 Firestone Industrial Air Springs With Two Pillars For Leland Sc2126W01-358-6946 Firestone Industrial Air Springs With Two Pillars For Leland Sc2126
