TS16949 Industrial Air Spring W01-358-6789 Contitech FD330-30 512 For Hendrickson AUX. 001503

TS16949 Industrial Air Spring W01-358-6789 Contitech FD330-30 512 For Hendrickson AUX. 001503

  • TS16949 Industrial Air Spring W01-358-6789 Contitech FD330-30 512 For Hendrickson AUX. 001503
TS16949 Industrial Air Spring W01-358-6789 Contitech FD330-30 512 For Hendrickson AUX. 001503
Product Details:
Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B6789
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows FIRESTONE: W01-358-6789
Contitech: FD330-30 512 Top Cover Plate Screw (Nut) Tooth: 2 Pcs X 3/8-16UNC
Rubber Bellows Natural Diameter: 300 Mm Pressure Ability: 0.2-0.8 MPa
HENDRICKSON AUX.: 001503
Highlight:

air helper springs

,

air suspension parts

Industrial Air Spring W01-358-6789 Contitech FD330-30 512 For HENDRICKSON AUX. 001503





BELLOW Number COMPLETE Number COMPLETE Number
　 　 　
FIRESTONE W01 358 0259 FIRESTONE FLEX 22-1,5
HENDRICKSON AUX. 001503
22-1,5/095.0092 FIRESTONE W01 358 6789
GOODYEAR FLEX 556 2 3 8328
578 92 3 310
AIRKRAFT 114302 　 　
　

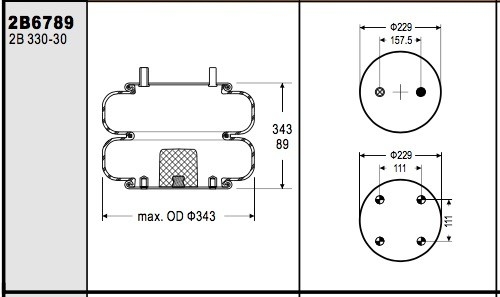

Specifications

2B-320 Rubber bellow only



❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 157.5 mm

Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 111 mm



❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4NPTF / 3/4NPTF / Rp1/4

Rp1/4(Air inlet is in the center)

1/4NPT ( air inlet 73mm)

1/4NPT(Air inlet is in the center)

3/4NPT ( air inlet 73mm)



❸ Cover Plate

Top Cover Plate Diameter (Width): 229 mm

Bottom Cover Plate Diameter (Width): 229 mm



❹Rubber Bellows

Rubber Bellows Natural Diameter : 300 mm

Rubber Bellows Natural Height : 241 mm

Rubber Bellows : max. OD Ф343 mm





❺ Bumper block / Buffer block

With Bumper Block



❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop
