Place of Origin: | China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | 2B7409 |
Minimum Order Quantity: | 1pc |
---|---|
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union,Paypal or Others |
Supply Ability: | 1000pcs/week |
Material: | Steel Cover Plate , Rubber Bellows | Firestone: | W01-358-7409 |
---|---|---|---|
Goodyear: | 2B12-319 | Firestone Bellows Number: | 22C |
Contitech: | FD330-22 367 | Hendrickson: | S13036/S10170 |
High Light: | air helper springs,air suspension parts |

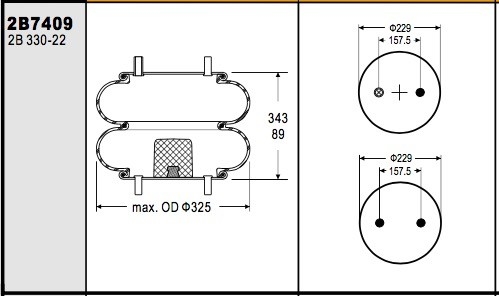

Firestone W01-358-7409 Goodyear 2B12-319 Double Air Spring Industrial Air Bags Bellows
Manufacturer Cross OEM Reference | |||
Type | Convoluted Air spring | Item NO. | 2B7409 |
Rubber type | Natural Rubber | Main Material | Rubber and metal |
Plate Dia. | 231mm | Rubber Bellows Max Dia. | 325mm |
Firestone | W01-358-7409 | Triangle | 6316/4331 |
Contitech | FD 330-22 319 | Goodyear | 2B12-406 |
Freightliner | 16-11378-000 | 578923 309/305 | |
Brake&Wheel | M3508 | Dayton | 3547410 |
Leland | Sc2023 | Navistar | 5547921C1 |
Hendrickson | S13036/S10170 | SAF Holland | 57007410 |
Ridewell | 1003587410C | Watson&Chalin | As0136 |
Operating Temperature: 57Cº to -54Cº
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 1 pcs X 1/2-13UNC,1 pcs X3/4-16UNC
Screw Center Distance of Top Cover Plate : 157 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 157 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPT
Center Distance Between air inlet and Nut : Together
❸ Cover Plate
Top Cover Plate Diameter (Width): 231 mm / 9.00 inches
Bottom Cover Plate Diameter (Width): 231 mm / 9.00 inches
Threaded Hole : 3/8-16
❹Rubber Bellows
Rubber Bellows Natural Diameter : 298 mm / 11.7 inches
Rubber Bellows MAX Diameter : 325 mm / 12.9 inches
Compressed Height: 81 mm / 4.12 inches
Minimum Jounce Height: 81mm / 4.12 inches
Design Height: 203 mm-241mm / 8-9.5 inches
Maximum Height: 305 mm / 12 inches
Bellows # NO.: 22
Working Stroke : 224 mm / 8.8 inches
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
