W013587473 Rubber Industrial Air Spring 2B12-428 Double Air Bellows With Bumper

China W013587473 Rubber Industrial Air Spring 2B12-428 Double Air Bellows With Bumper supplier

Large Image :  W013587473 Rubber Industrial Air Spring 2B12-428 Double Air Bellows With Bumper

Product Details:

Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B7473

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows FIRESTONE: W01-358-7473
GOODYEAR FLEX: 556 2 3 8328 Contitech: FD330-30 372
Top Cover Plate Screw (Nut) Tooth: 2 Pcs X 3/8-16UNC Rubber Bellows Natural Diameter: 300 Mm
Pressure Ability: 0.2-0.8 MPa

W013587473 Rubber Industrial Air Spring 2B12-428 Double Air Bellows With Bumper​



BELLOW NumberCOMPLETE NumberCOMPLETE Number

FIRESTONE W01 358 0259DUNLOP (FR) S12280DUNLOP (FR) S12280
22-1,5/095.0092FIRESTONE W01 358 7440FIRESTONE W01-358-7443
GOODYEAR FLEX 556 2 3 8328GOODYEAR 2B12-305GOODYEAR 2B12-305
578 92 3 310AIRKRAFT 113311AIRKRAF T 113493
AIRKRAFT 114302
 FIRESTONE FLEX 22-1,5FIRESTONE W01-358-7442
 FIRESTONE W01-358-7473GOODYEAR 2B12-419
 GOODYEAR 2B12-480AIRKRAFT 113494
 AIRKRAFT 113316

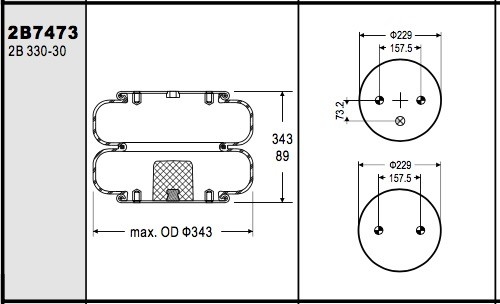

Specifications
2B-320 Rubber bellow only

Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 157.5 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 157.5 mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPTF / 3/4NPTF / Rp1/4
Rp1/4(Air inlet is in the center)
1/4NPT ( air inlet 73mm)
1/4NPT(Air inlet is in the center)
3/4NPT ( air inlet 73mm)
Cover Plate
Top Cover Plate Diameter (Width): 210 mm
Bottom Cover Plate Diameter (Width): 210 mm
Rubber Bellows
Rubber Bellows Natural Diameter : 300 mm
Rubber Bellows Natural Height : 241 mm
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop


Air Spring Supplier: ContiTech
Competitor / Supplier Number: FD330-30369

Air Spring Supplier: Goodyear
Reference: 578923315
Competitor / Supplier Number: 2B12-480

Air Spring Supplier: Goodyear
Reference: 578923310
Competitor / Supplier Number: 2B12-480

Air Spring Supplier: Triangle
Reference: 6328
Competitor / Supplier Number: 4369

Suspension of supplier: Hendrickson
FSIP OEM: W01-455-7473

Suspension of suppliers: Hendrickson Trailer
Competitor / Supplier Number: S9830

Suspended supplier: Ridewell
Competitor / Supplier Number: 1003587473C

Firestone Trimmed: w01-358-7473


 W013587473 Rubber Industrial Air Spring 2B12-428 Double Air Bellows With BumperW013587473 Rubber Industrial Air Spring 2B12-428 Double Air Bellows With BumperW013587473 Rubber Industrial Air Spring 2B12-428 Double Air Bellows With Bumper
