FD331-26 373 Industrial Air Spring W01-358-7483 For Ridewell 1003587483C

China FD331-26 373 Industrial Air Spring W01-358-7483 For Ridewell 1003587483C supplier

Large Image :  FD331-26 373 Industrial Air Spring W01-358-7483 For Ridewell 1003587483C

Product Details:

Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B7483

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows Firestone: W013587483
Contitech: FD331-26 373 GoodYear Bellows#: 578-92-3-310
Gas Hole / Air Inlet: 1/4-18NPT , Combination Stud/Air Inlet Stud Cover Plate Diameter (Width): 224.5 Mm / 9.00 Inches
Compressed Height: 104 Mm / 4.1 Inches Bottom Cover Plate Screw (Nut) Tooth: 2 Pcs X 3/8-16UNC

Contitech FD331-26 373 Firestone W01-358-7483 Air Spring For RIDEWELL 1003587483C

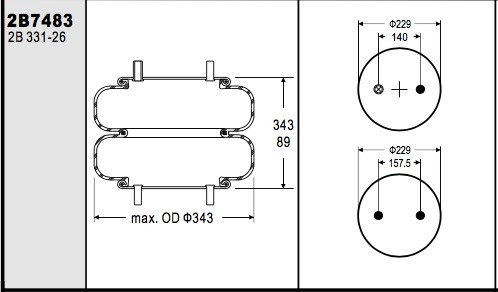

Product parameters:



Nut / Blind Nut



Top Cover Plate Screw (Nut) Tooth : 1 pcs X 3/8-13UNC

Top Cover Plate Combination Nut : 3/4-16UNF

Screw Center Distance of Top Cover Plate : 140 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 2X3/8--13UNC

Screw Center Distance of Bottom Cover Plate : 157 mm / 6.2 inches



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4-18NPT , Combination Stud/Air Inlet Stud



Cover Plate

Top Cover Plate Diameter (Width): 224.5 mm / 9.00 inches

Bottom Cover Plate Diameter (Width): 224.5 mm / 9.00 inches



Rubber Bellows

Rubber Bellows MAX Diameter : 343 mm / 9.7 inches

Compressed Height: 104 mm / 4.1 inches

Maximum Height: 363mm / 14.3 inches

Working Stroke : 259 mm / 10.2 inches



Bumper block / Buffer block

With Bumper Block



Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop





Compressed Height: 3.12 inches
Top Plate Number:3235
Top Plate Width:9.00 inches
Piston Number:3256
Piston Width:9.00 inches
Firestone Bellows Number:22-1.5
Ridewell Number:1003587483C





Assembly Weight: 13.4 lbs

Design Height: 9-11 inches

Minimum Jounce Height: 3.55 inches

Loading Capacity at 20 psig: 1,240 lbsf

Loading Capacity at 60 psig: 3,720 lbsf

Loading Capacity at 90 psig: 5,580 lbsf

Operating Temperature: 57Cº to -54Cº





OEM reference Number Manufacturer Reference Number
Firestone Bellows Number 22C-1.5 RIDEWELL 1003587483C
Firestone part number W01-358-7483 Goodyear Bellows Number 578923310
Firestone part number W013587483
Contitech FD331-26 373






GUOMAT Air Springs can last at least twice lifetime, always as much as four times longer than steel springs!



  1. They almost do not need to maintain.
  2. Increase the service life of tires and brake pads.
  3. Let you pull anything; Eliminate expensive admission cost.
  4. Greatly reduce the breakage of the other vehicle components and maintenance.
  5. Back to you in the scrappage, truck and trailer with air suspension is more valuable.
  6. Allow the perfect load balancing between axles; Allow you to run in one of the largest legal restrictions.
  7. Reduce the discomfort and driver fatigue risk; Improve the efficiency of the driver's safety, and loyalty
  8. To provide smooth to load, reduce the cost of expensive insurance claims and packaging.
