W01-358-6801 Air Spring 21-2 Industrial Air Spring Contitech Hendrickson S2734

China W01-358-6801 Air Spring 21-2 Industrial Air Spring Contitech Hendrickson S2734 supplier

Large Image :  W01-358-6801 Air Spring 21-2 Industrial Air Spring Contitech Hendrickson S2734

Product Details:

Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B6801

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows Contitech: FD530-30 451
Firestone: W01-358-6801 Gas Hole / Air Inlet: 1/4NPT
Cover Plate Diameter (Width): 287 Mm Compressed Height: 76.2mm / 3 Inches

Firestone W01-358-6801 Air Spring 21-2 Industrial Air Spring Contitech Hendrickson S2734





OEM Number:


Contitech:FD530-30 451
HENDRICKSON TRAILER:S2734
RIDEWELL:1003586801C
WATSON & CHALIN AS-0021
Firestone W01-358-6801

Firestone 21D-2/21-2
Goodyear 2B14-365

Z RIDE:8030160

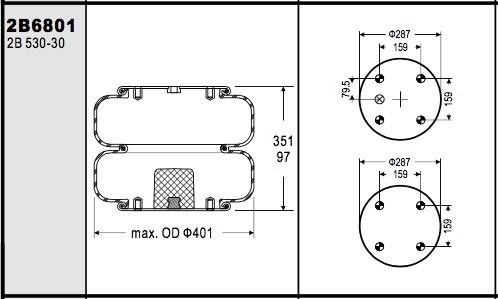

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 159 mm

Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 159 mm



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4NPT

Center Distance Between Nut and Air inlet: 79.5 mm



Cover Plate

Top Cover Plate Diameter (Width): 287 mm

Bottom Cover Plate Diameter (Width): 287 mm



Rubber Bellows

Rubber Bellows MAX Diameter : 401 mm

Compressed Height: 76.2mm / 3 inches

Maximum Height: 351 mm

Working Stroke : 254mm



Bumper block / Buffer block

With Bumper Block



Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop



Compressed Height: 3.00 inches
Top Plate Number:3131 or 3134
Top Plate Width:11.31 inches
Piston Number:3130
Piston Width:11.31 inches
Firestone Bellows Number:21-2
Triangle Part Number:4518
Triangle Bellows Number:6336
Watson & Chalin #:AS-0034
Note:see W01-358-6808
