| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B7782 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | Firestone Style No.: | 233-2 |
|---|---|---|---|
| Contitech: | FD 530-35 544 | Firestone: | W013587782 |
| Gas Hole / Air Inlet: | 1/4NPT | Cover Plate Diameter (Width): | 289 Mm |
| Compressed Height: | 104 Mm / 4.1 Inches | G.W.: | 9.7 KG |
| N.W.: | 9.05KG | Package Size: | 38*38*22cm |
| High Light: | air helper springs,air suspension parts |
||
W01-358-7782 Firestone Industrial Air Spring Goodyear 2B14-359 Contitech FD530-35 544
| Cross Manufacturer | Cross OEM |
| Firestone No. | W01-358-7782 / W01 358 7782/W013587782 |
| Firestone Style No. | 233-2 |
| Contitech : | FD 530-35 544 / FD 530 35 544 |
| Watson & Chalin #: | AS-0032 |
| Goodyear Part Number: | 2B14-359 |
| Triangle: | 2B14 359 |
| Goodyear Bellows Number: | 578-92-3-353 ／578923353 |
| Firestone Top Plate Number: | 3132 |
| Firestone Piston Number: | 3122 |
Assembly Weight: 9.05kg
Operating Temperature: 57Cº to -54Cº

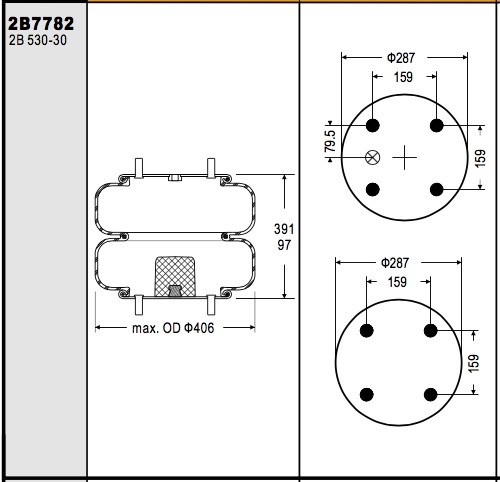

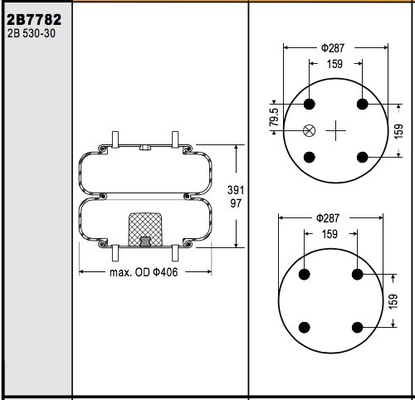

❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 159 mm
Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 159 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPT
Center Distance Between Nut and Air inlet: 79.5 mm
❸ Cover Plate
Top Cover Plate Diameter (Width): 287 mm
Bottom Cover Plate Diameter (Width): 287 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter : 406 mm
Compressed Height: 104 mm / 4.1 inches
Maximum Height: 391 mm
Working Stroke : 287mm
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Compressed Height: 3.80 inches
Top Plate Number:3132
Top Plate Width:11.01 inches
Piston Number:3122
Piston Width:11.01 inches
Firestone Bellows Number:233-2
Goodyear Part Number:2B14-359
Goodyear Bellows Number:578-92-3-353
Watson & Chalin #:AS-0032
| GUOMAT NO. | Reference | Order NO. | Force (lbs) | Max OD (in) | Design height(in) | Height | Narural frequ.[cpm] | ||
| 80 psi | 100 psi | Min | MAX | ||||||
| FD 530 35 528 | FD 530-35 528 | 161386 | 7930 | 9910 | 16 | 11 | 3 | 15.4 | 84 |
| FD 530 35 530 | FD 530-35 530 | 161387 | 7930 | 9910 | 16 | 11 | 4.1 | 15.4 | 84 |
| FD 530 35 543 | FD 530-35 543 | 161388 | 7930 | 9910 | 16 | 11 | 4.1 | 15.4 | 84 |
| FD 530 35 544 | FD 530-35 544 | 161389 | 7930 | 9910 | 16 | 11 | 4.1 | 15.4 | 84 |
| FD 530 35 545 | FD 530-35 545 | 161390 | 7930 | 9910 | 16 | 11 | 4.1 | 15.4 | 84 |
