W01-358-7742 Single Convoluted Air Spring Rubber Bellows Number 131

Certification
Good quality Industrial Air Spring for sales
Good quality Industrial Air Spring for sales
GUOMAT has many types of air spring and can accurately meet our requirements. You have advantage price and professional service team.

—— Vlad from Russia

The air suspension spring have passed the test and they are fitting for our car model. Through the cooperation we are familiar with each other.

—— Eric from Southeast Asia

Thank you very much for your patience and prompt reply.GUOMAT gives me big help,delivery time is very fast.

—— Peter from European

You have been very professional in your sale,I am trying to expand my work in Italy if you are personally interested in making a profit.

—— Ivan from Italy

I'm Online Chat Now

W01-358-7742 Single Convoluted Air Spring Rubber Bellows Number 131

China W01-358-7742 Single Convoluted Air Spring Rubber Bellows Number 131 supplier
W01-358-7742 Single Convoluted Air Spring Rubber Bellows Number 131 supplier W01-358-7742 Single Convoluted Air Spring Rubber Bellows Number 131 supplier

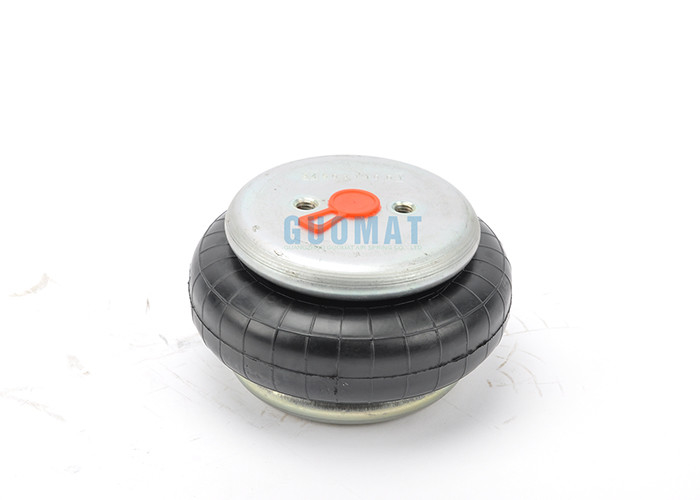

Large Image :  W01-358-7742 Single Convoluted Air Spring Rubber Bellows Number 131

Product Details:

Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 1B7742

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber Steel Firestone: W01-358-7742
Warranty: 1 Year Weight: 1.5 Kg
Other Name: Convoluted Air Spring Pressure Ability: 0.2-0.8 M Pa
Rubber Bellows: 131

W01-358-7742 Single Convoluted Air Spring Rubber Bellows Number 131


OEM Original Equipment Manufacturer:
GUOMAT NO.:1B7742
Firestone : W01-358-7742




W01-358-7731 Technical Parameters
Top Cover Plate Diameter160mm
Bottom Cover Plate Diameter160mm
Screw Center Distance89mm
Distance Gas Hole Between Nut44.5mm
Gas Hole3/4NPTF
Screw (Nut) Tooth2pcsX3/8-16UNC
Rubber Bellows DiameterNatural Φ220mm
The HeightNatural 110mm



GUOMAT NO.:1B7742 this item can fit for the below Equipment:

Construction Equipment:Commercial dirt moving scraper, compactor, and wagon.
Agricultural Scrapers:Land Levelers, Laser-Scrapers, and Dirt Movers for the farm.
Subsoiler :Agricultural tillage tool.


The usal kinds of Single Convolution Air Actuator


Single Convolution Air Actuator
All Measurements Are In Mm
GUOMAT NO.Contitech NO.Min. Design heightInstallation Space RequiredMax. Stroke
1B4060FS 40-65016060
1B5050FS 50-55116544
1B7070FS 70-75118064
1B10010FS 100-105122594
1B1209FS 120-95023085
1B1210FS 120-105124599
1B12012FS 120-1251250119
1B20010FS 200-105126589
1B33011FS 330-115134099
