| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B7788 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | ContiTech: | FD 200-19 510 |
|---|---|---|---|
| Gas Hole: | 3/8NPTF | Screw Center Distance: | 89 Mm |
| Cover Plate Diameter: | 160 Mm | Pressure Ability: | 0.2-0.8 M Pa |
| Stroke: | 75~260 Mm | Net Weight: | 3.5 Kg |
| Package Size: | 24*24*24 CM | ||
| High Light: | air helper springs,air suspension parts |
||

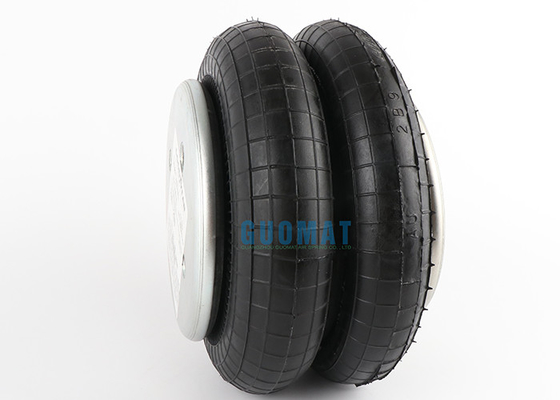

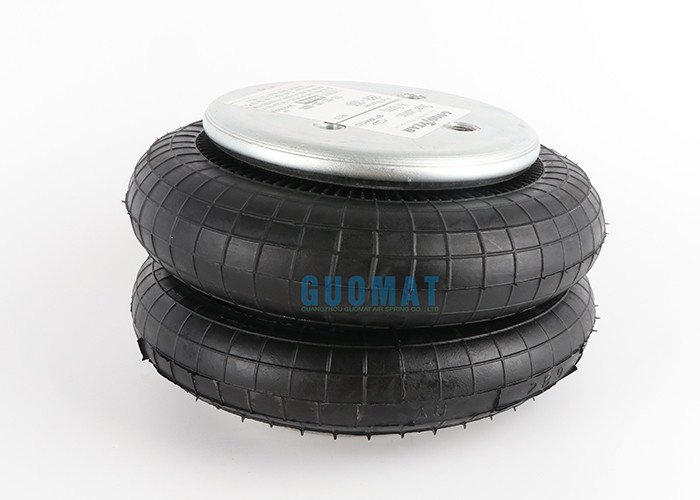

ContiTech FD 200-19 510 Firestone W013587788 Industrial Air Spring 2B9-245
Quick details
Brand:
GUOMAT
material:
Rubber + anti-rust iron parts
certificate:
TS16949
colour:
Black rubber part + white zinc
application:
Bus/trailer/truck/car
MOQ:
1 item
OEM:
OEM accepted
package:
Carton or pallet
payment:
T/T
OE number:
Custom processing
Guarantee:
12 months
Place of Origin; Place of Origin:
Guangzhou, China
position:
Before, before/after
product name:
Air suspension bag/spring
position:
Before and after
Types of:
Suspension spring
size:
OEM standard size
car brand:
European cars, American trucks, European trailers
model:
Suspension spring

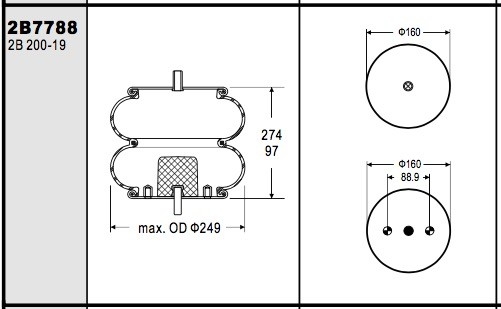

GUOMAT 2B7788 Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 1 pcs X Combination Stud/Air Inlet Stud Outside Thread is 3/4-16
Bolt or Stud 1/2-13
Screw Center Distance of Top Cover Plate : Middle
Bottom Cover Plate Screw (Nut) Tooth : 1 pcs XThreaded Hole 3/8-16 Blind Nut on Bead Plates 1/2-13 in Pistons
Screw Center Distance of Bottom Cover Plate : Middle
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 3/8-16NPTF
Screw Center Distance Between Gas Hole and Nut : Combination Stud/Air Inlet Stud
❸ Cover Plate
Top Cover Plate Diameter: 160 mm
Bottom Cover Plate Diameter: 160 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 251 mm
Rubber Bellows Natural Diameter : 224 mm
The Working Stroke : MIN 75 mm to MAX 260 mm
Maximum Height : 274 mm
Minimum Height :95mm
Stroke Height : 179mm
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
2B7788 Cross others OEM
GUOMAT NO.2B7788
FD 200-19 510／ FD200-19 510 ／ FD20019 510
AUTOMANN
ABSP2B12R-7788
CONTI
64519
FD 200-19 510
FIRESTONE
7788 W013587788
TRIANGLE
4510
WATSON & CHALIN AS-0088
Goodyear Number: 2B9-245
Bellows type: Double
Automann bellows Number: SP2B12R
Firestone bellows Number: 20F is 20
Goodyear Bellows Number: 578-92-3-202
Contitech bellows number: FD 200-19
Triangular bellows number: 6325
|
Firestone Style 20 |
|
Firestone No. W01-358-7788／ W01 358 7788／ W013587788 |
|
|
OE Manufacturer/Reference No.
Compressed Height: 4.10 inches
Top Plate Number:3102
Top Plate Width:6.31 inches
Piston Number:3095
Piston Width:6.31 inches
Firestone Bellows Number:20
Triangle Part Number:4510
Triangle Bellows Number:6325
Watson & Chalin #:AS-0088
Number of top plate holes/studs: 1 pc
Top plate diameter: 6.4 inch
Number of chassis hole studs: 1 pc
Base plate diameter: 6.4 inch
Bottom plate alignment: parallel
Bumper: Yes
Minimum height: 4.2 inch
Maximum height: 10.8 inch
Other kinds of FD 200-19 that GUOMAT have:
| GUOMAT NO. | Reference | Order NO. | Force (lbs) | Max OD (in) | Design height(in) | Height | Narural frequ.[cpm] | ||
| 80 psi | 100 psi | Min | MAX | ||||||
| FD 200 19 310 | FD 200-19 310 | 161292 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 315 | FD 200-19 315 | 161293 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 320 | FD 200-19 320 | 161008 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
| FD 200 19 362 | FD 200-19 362 | 161294 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
| FD 200 19 448 | FD 200-19 448 | 161295 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 450 | FD 200-19 450 | 161296 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 452 | FD 200-19 452 | 161297 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 499 | FD 200-19 499 | 161298 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 504 | FD 200-19 504 | 161299 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 505 | FD 200-19 505 | 161300 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
| FD 200 19 506 | FD 200-19 506 | 161301 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
| FD 200 19 510 | FD 200-19 510 | 161302 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 524 | FD 200-19 524 | 161385 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
| FD 200 19 539 | FD 200-19 539 | 161303 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
| FD 200 19 600 | FD 200-19 600 | 161017 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
