| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B7795 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | ContiTech: | FD 200-19 713 |
|---|---|---|---|
| Gas Hole: | 3/8NPTF | Screw Center Distance: | 89 Mm |
| Cover Plate Diameter: | 160 Mm | Pressure Ability: | 0.2-0.8 M Pa |
| Stroke: | 75~260 Mm | Net Weight: | 3.5 Kg |
| Package Size: | 24*24*24 CM | ||
| High Light: | air helper springs,air suspension parts |
||

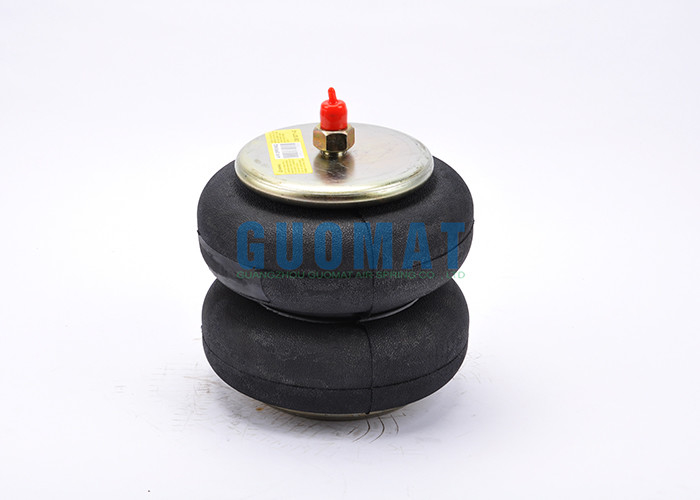

Goodyear 2B10-226 Air Spring Firestone W013587795 Double Convoluted 257

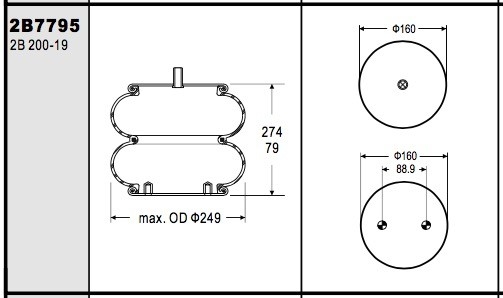

GUOMAT 2B7795 Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 1 pcs X Combination Stud/Air Inlet Stud Outside Thread is 3/4-16
Bolt or Stud 1/2-13
Screw Center Distance of Top Cover Plate : Middle
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs XThreaded Hole 3/8-16 Blind Nut on Bead Plates 1/2-13 in Pistons
Screw Center Distance of Bottom Cover Plate : 88.9cm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 3/8-16NPTF
Screw Center Distance Between Gas Hole and Nut : Combination Stud/Air Inlet Stud
❸ Cover Plate
Top Cover Plate Diameter: 160 mm
Bottom Cover Plate Diameter: 160 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 251 mm
Rubber Bellows Natural Diameter : 224 mm
The Working Stroke : MIN 75 mm to MAX 260 mm
Maximum Height : 274 mm
Minimum Height :95mm
Stroke Height : 179mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
2B7795 Cross others OEM
GUOMAT NO.2B7795
FD 200-19 713／ FD200-19 713／ FD20019 713
|
Firestone Style 20 |
|
Firestone No. W01-358-7788／ W01 358 7788／ W013587788 |
|
|
OE Manufacturer/Reference No.
Compressed height: 3.12 inches
Number of top plates: 3102
Roof width: 6.31 inches
Number of pistons: 3090
Piston width: 6.31 inches
Firestone Bellows Number: 257
Goodyear part number: 2B10-226
Goodyear Bellows Number: 578-92-3-250
Hendrickson Auxiliary Number: S-14486/003317
Triangle part number: 4524
Triangle bellows number: 6395
Number of top plate holes/studs: 1 pc
Top plate diameter: 6.4 inch
Base plate hole stud Qyt: 2 pc
Base plate diameter: 6.4 inch
Diameter of base plate C to C: 3.5 inch
Bottom plate alignment: parallel
Bumper: None
Minimum height: 3.1 inch
Maximum height: 9.8 inch
2B10-226 Goodyear double bellows air spring
Goodyear#: 2B10-226
Bellows type: double
Automann bellows#: SP2B12R
Firestone bellows#: 20F is 20
Goodyear Bellows#: 578-92-3-250
Contitech bellows#: FD 200-19
Triangle bellows#: 6325
Other kinds of FD 200-19 that GUOMAT have:
| GUOMAT NO. | Reference | Order NO. | Force (lbs) | Max OD (in) | Design height(in) | Height | Narural frequ.[cpm] | ||
| 80 psi | 100 psi | Min | MAX | ||||||
| FD 200 19 310 | FD 200-19 310 | 161292 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 315 | FD 200-19 315 | 161293 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 320 | FD 200-19 320 | 161008 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
| FD 200 19 362 | FD 200-19 362 | 161294 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
| FD 200 19 448 | FD 200-19 448 | 161295 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 450 | FD 200-19 450 | 161296 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 452 | FD 200-19 452 | 161297 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 499 | FD 200-19 499 | 161298 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 504 | FD 200-19 504 | 161299 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 505 | FD 200-19 505 | 161300 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
| FD 200 19 506 | FD 200-19 506 | 161301 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
| FD 200 19 510 | FD 200-19 510 | 161302 | 2080 | 2600 | 9.9 | 8.5 | 3.75 | 10.8 | 115 |
| FD 200 19 524 | FD 200-19 524 | 161385 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
| FD 200 19 539 | FD 200-19 539 | 161303 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
| FD 200 19 600 | FD 200-19 600 | 161017 | 2080 | 2600 | 9.9 | 8.5 | 3 | 10.8 | 115 |
